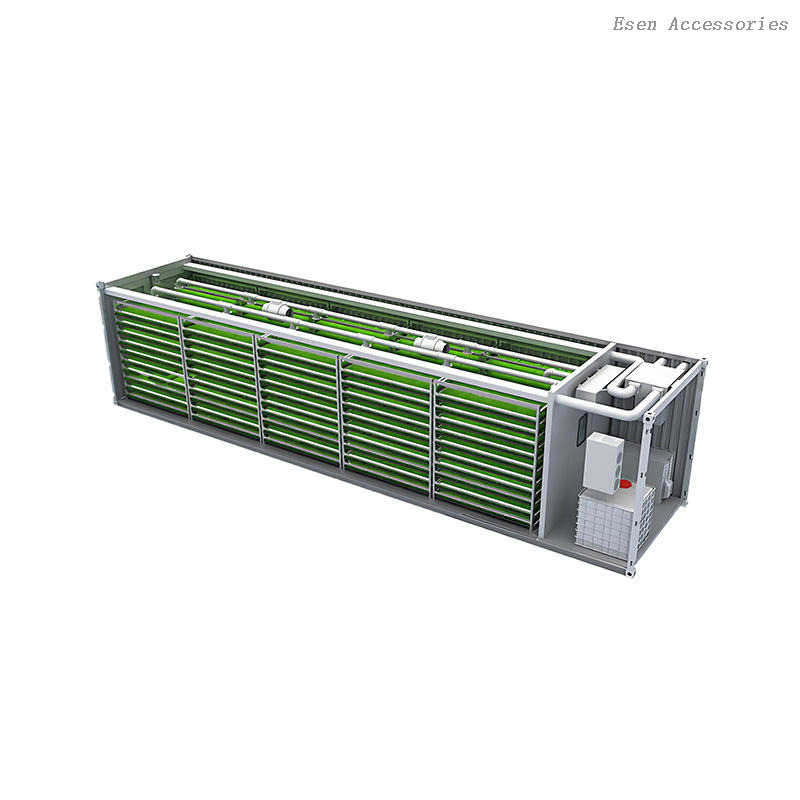

Automated Indoor Farming System Hydroponic Barley Grass Fodder Growing Container Farm

A containerized hydroponic forage grass factory is a mobile, climate-controlled system inside standard shipping containers that grows nutritious animal feed year-round using hydroponics (soilless, water-based), offering high-yield, water-efficient, and rapid production (7-10 days) of barley, wheat, or other grasses for livestock,
Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

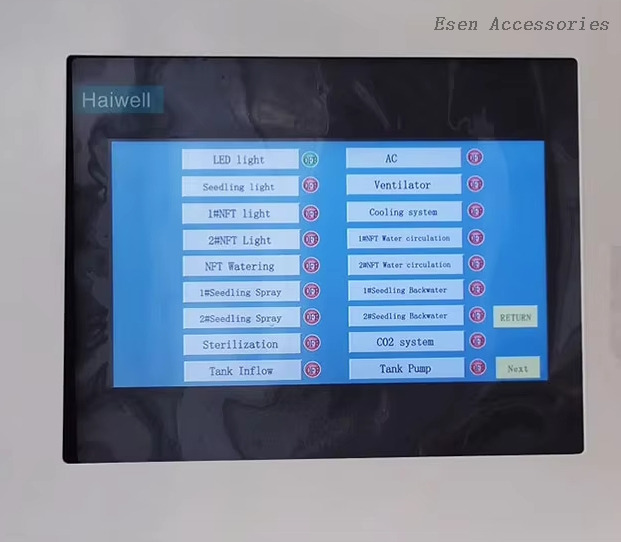

Hydroponic forage equipment is used to produce feed for livestock such as cattle and sheep. It can grow feed without soil in a controlled environment and has automatic temperature control and automatic watering systems. After placing the seeds in the tray and setting the production parameters, the machine can start working and the feed can be harvested in as short a time as about 7 days. The machine has the advantages of fast feed cultivation, no climate impact, and high yield, making it a good choice for feeding livestock.

Features of hydroponic fodder container

1. Fully Customizable & Rapid Deployment: Modular and stackable design with customizable parts; 100% pre-assembled before shipment for quick setup and operation.

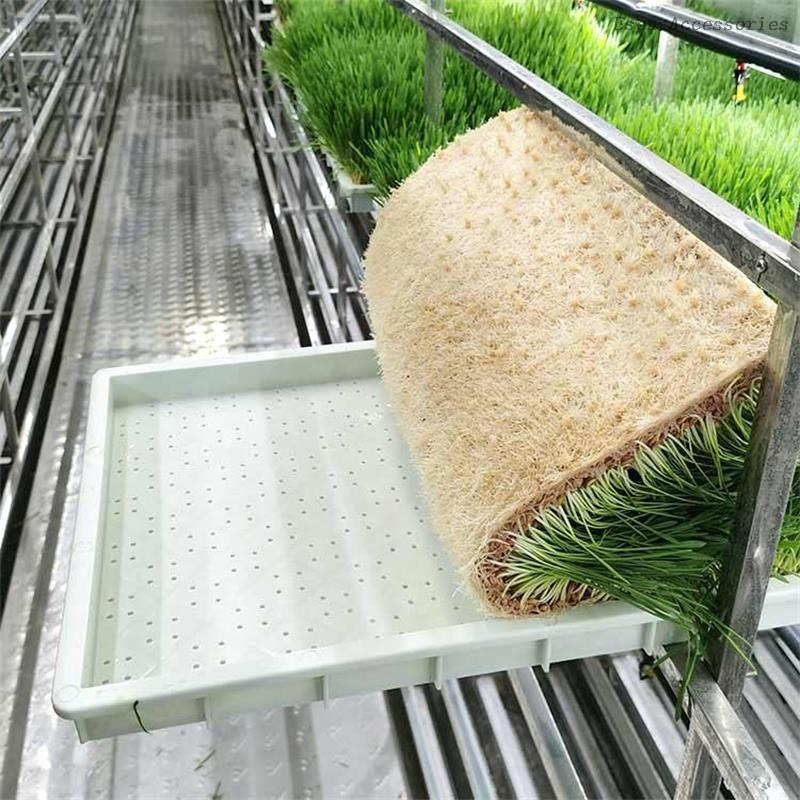

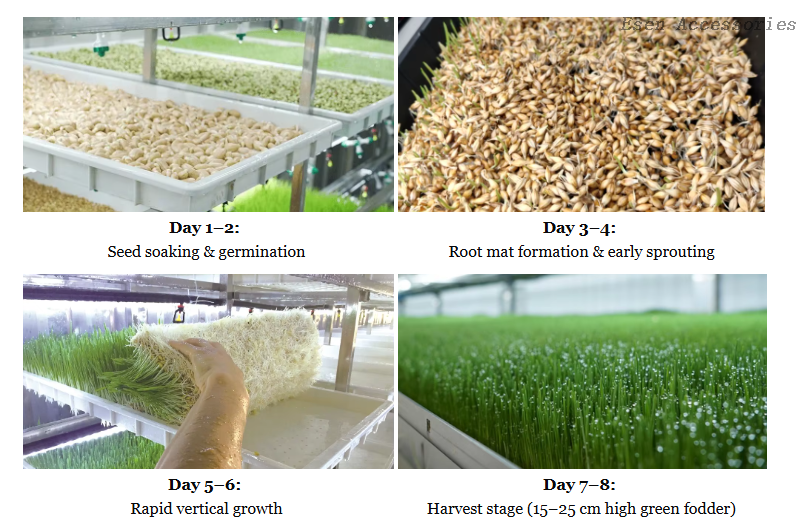

2. Rapid Growth: Achieves 18-20 cm plant height from dry seed in just 7 days.

3. Cost Efficiency: Reduces animal feeding costs by up to 60% or more.

4. Year-Round Supply: Ensures fresh feed production consistently, regardless of weather conditions.

5. Seed Versatility: Compatible with diverse seeds like wheat, barley, oat, rye, corn, sorghum, beans, and more.

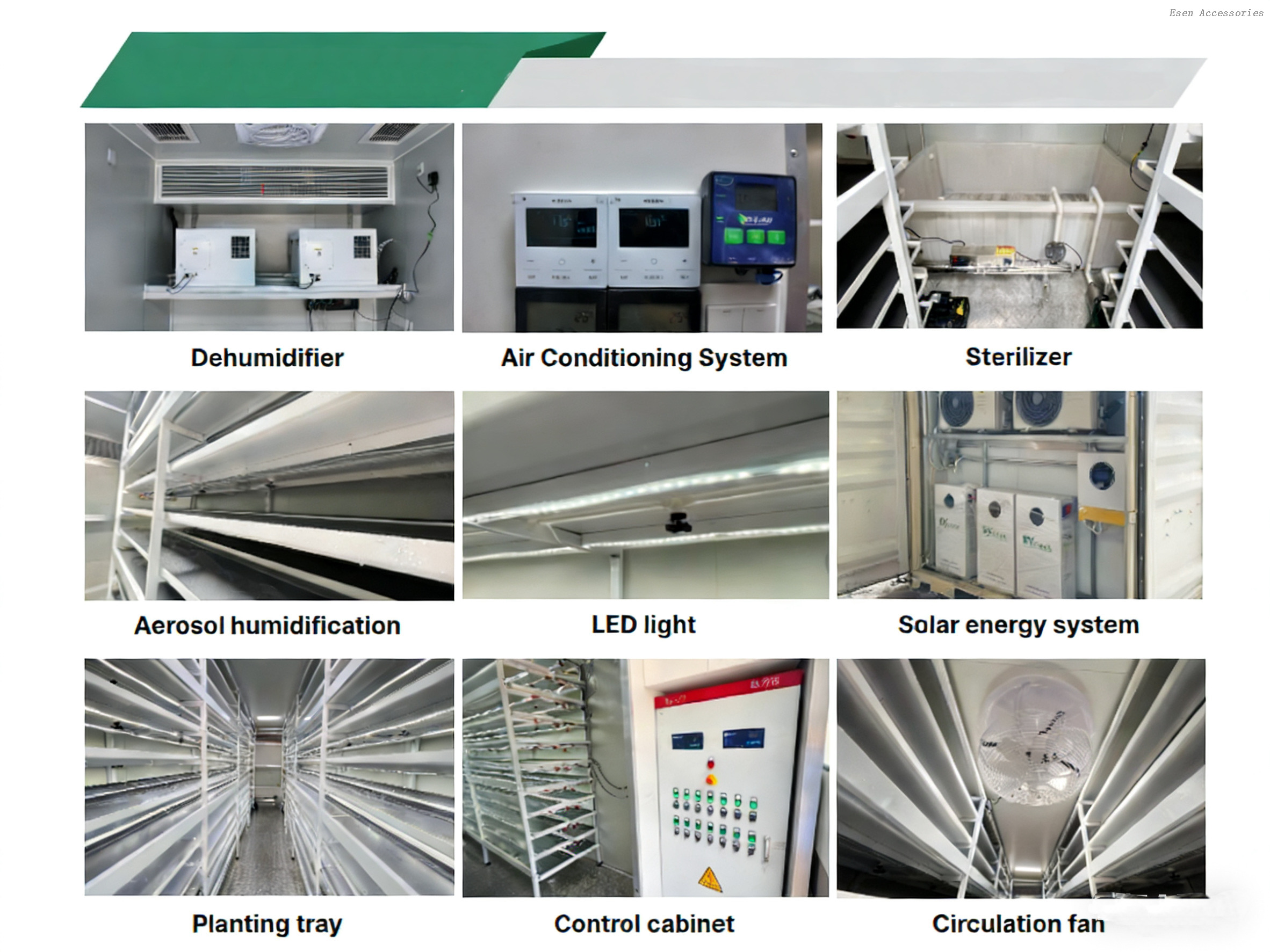

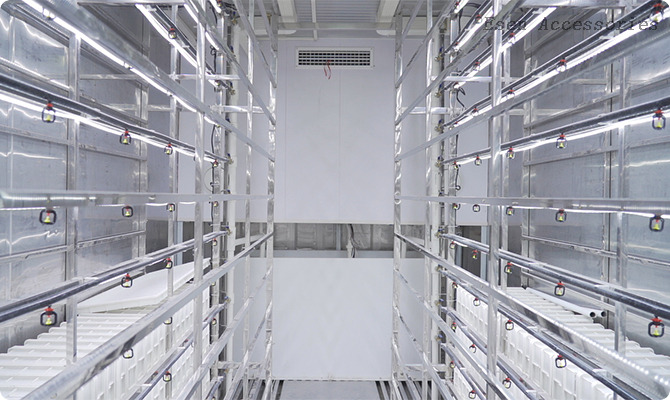

95结构设备设备2生长

Detailed Specifications

Size 6.058*2.438*2.438M
(20FT freezer container)
12.8*2.45*2.9M
(40HQ freezer container)
12.8*2.45*2.9M
(40HQ freezer container)
Output 500kg/Day 1000kg/Day 1500kg/Day
Voltage 110V/220V/380V (Regular is 220V-50HZ)
Size & Tray NO. 85*40*4CM 260PCS 85*40*4CM 550PCS 85*40*4CM 700PCS
Layers 9 9 11
Water Consumption 0.5CBM 0.925 CBM 1 CBM
Yield Rate 1:8.8( 1kg seeds, yield 8.8 kg fresh fodder )
Growth Cycle 7 Days
Gross weight 3Ton 6Ton 6.5Ton
Power 10KW 15KW 18KW
Application

1.Hydroponic forage equipment is used for cattle and sheep, and can produce wheat, barley and other livestock feed.

2.Hydroponic forage equipment is widely used in farms, ranches, large breeding bases, food processing plants and other units.

应用

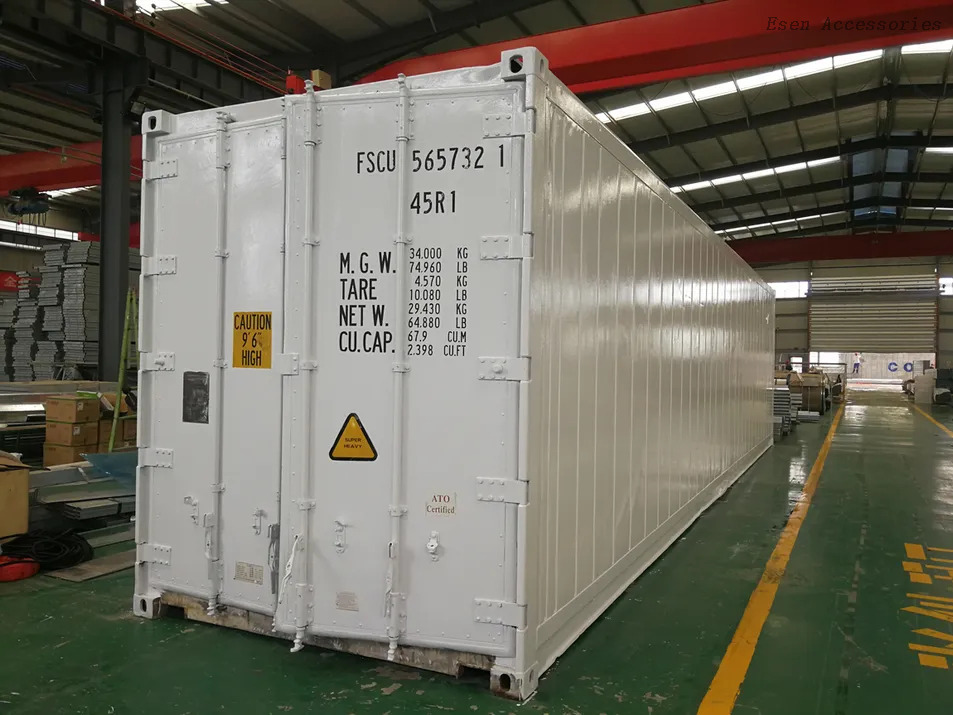

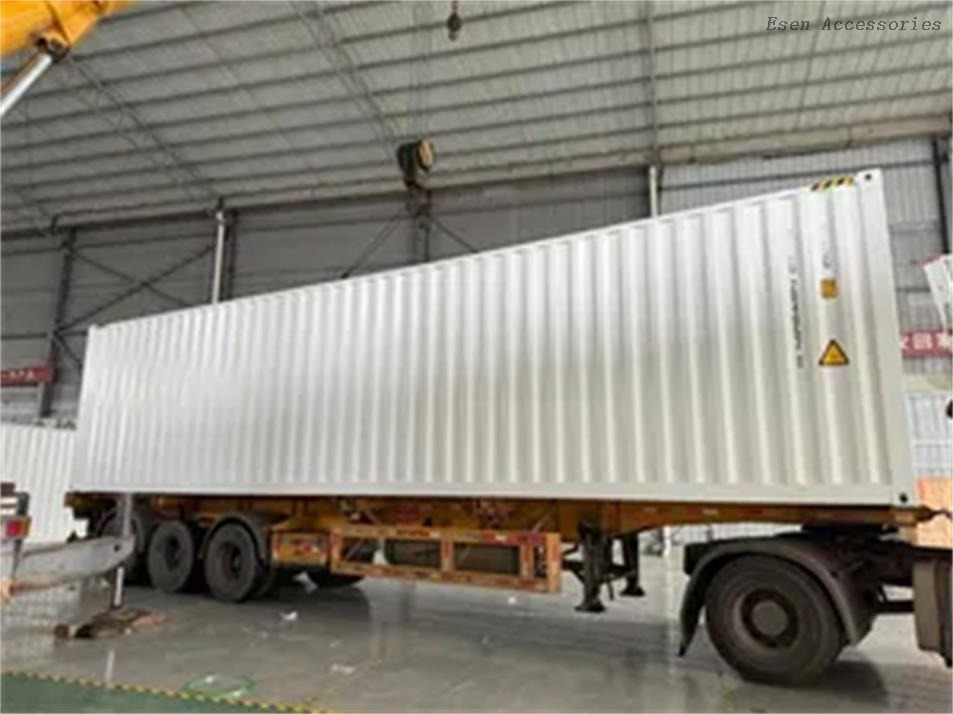

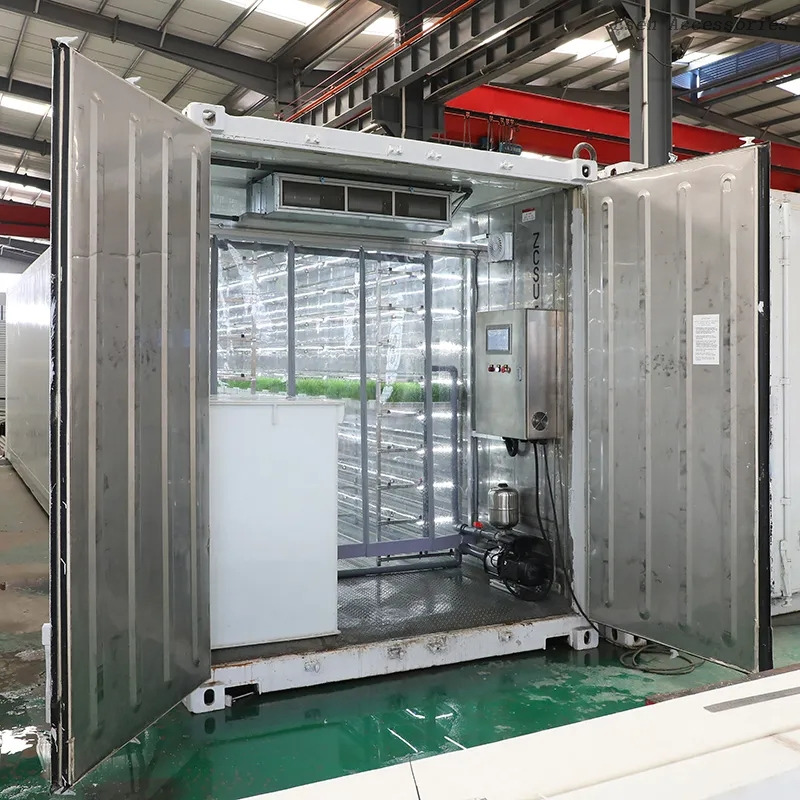

Packaging & Shipping
The goods shipped as whole set with the container and inside system.
All the equipment has been installed and debugged ,  no need to bother to install any accessories , just simply connect the water and electricity , we can start to use the machine directly.

发货发货1
