Heavy-Duty Construction: Heavy-duty carbon steel material makes this forklift lifting hook solid and sturdy to use. This attachment is powder-coated for extra durability and longevity.
Up to 5T Load Capacity: The rugged construction contributes to the forklift mobile crane hook's large load capacity, allowing you to lift 5T loads up.

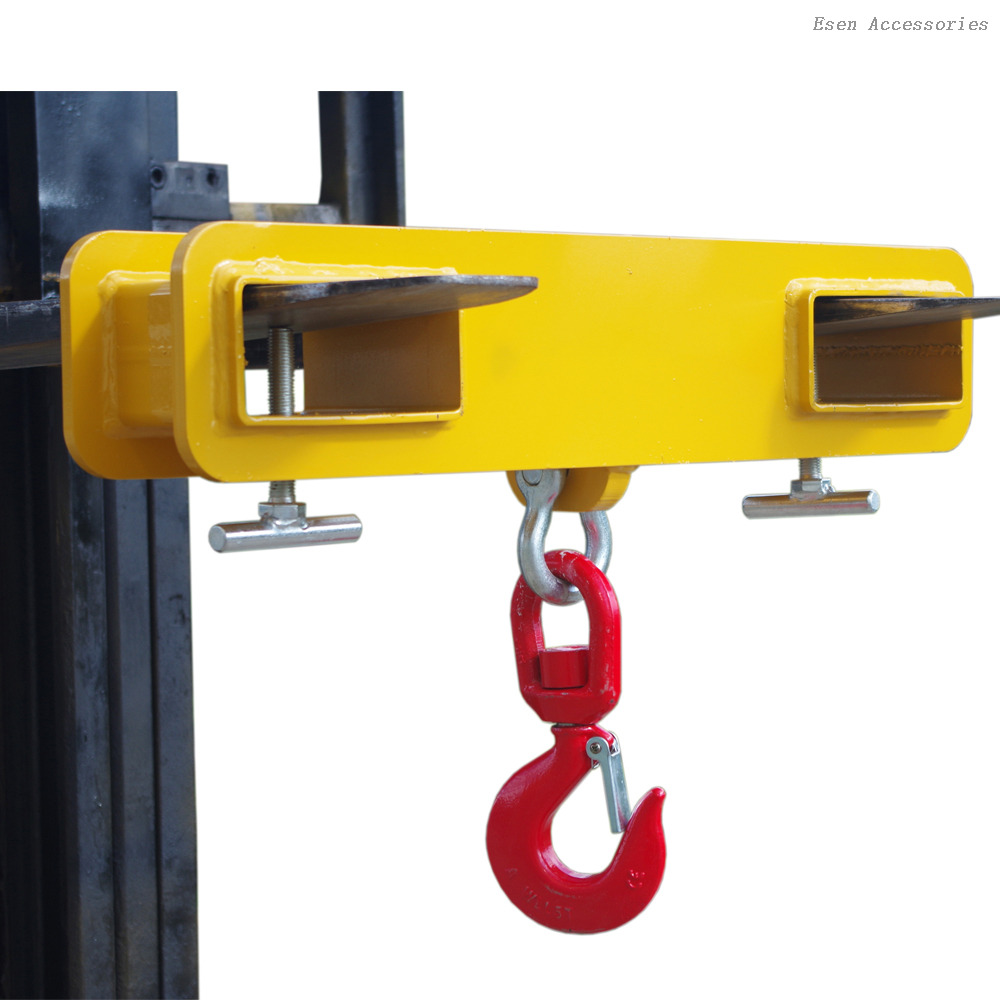

Forklift Lifting Hook: Premium swivel mobile crane hook, features a security latch and can rotate 360° without any limitation, making it is easy to operate.

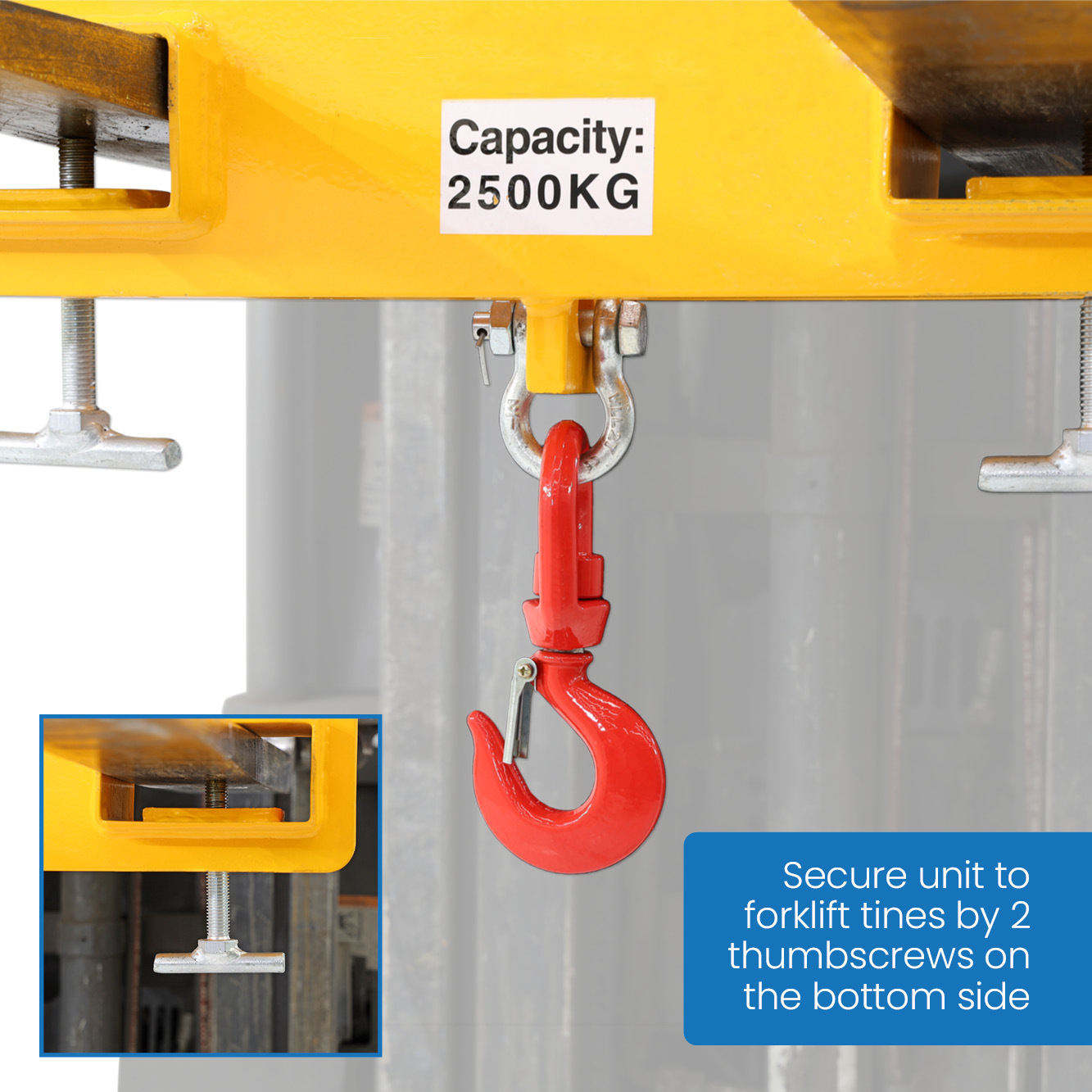

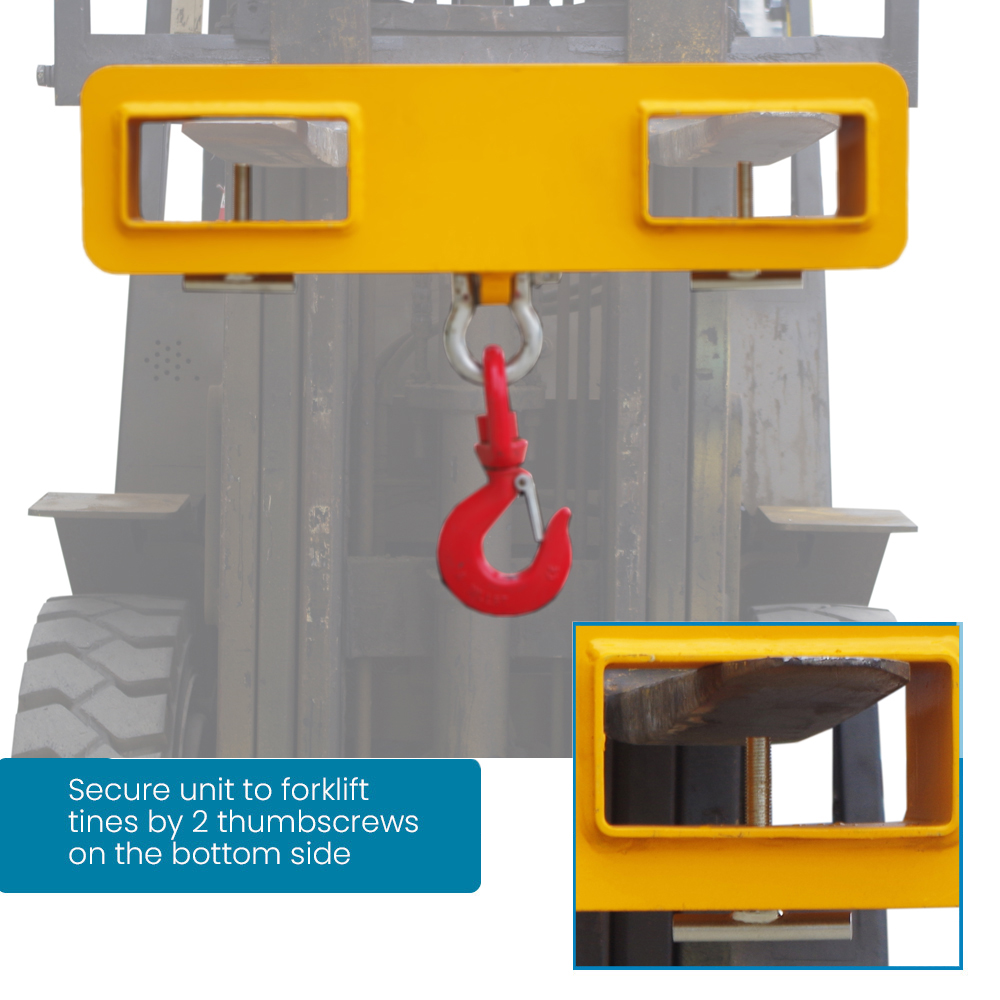

2 large L Screws: With 2 large L screws, you can tighten the hook to the folk from the underside, ensuring safe and stable performance.
Wide Application: This forklift lifting hook fits most pallet forks, changing your truck into a mobile crane; Widely used in warehouse, factory industrial job sites, farms, ranches, and more.
Specification
Product Name | Forklift Hook |
Material | Steel |
Finish | Powder Coated |
Capacity | 1T,2.5T,4T,5T |
Color | Customized |
Forklift Attachments Type | Lifting Beams & Hooks For Forklifts |
Model | WLL(kg) | Dimensions(mm) | Fork Pocket Ctn.(mm) | Fork Pocket Size(mm) | Weight(kg) |

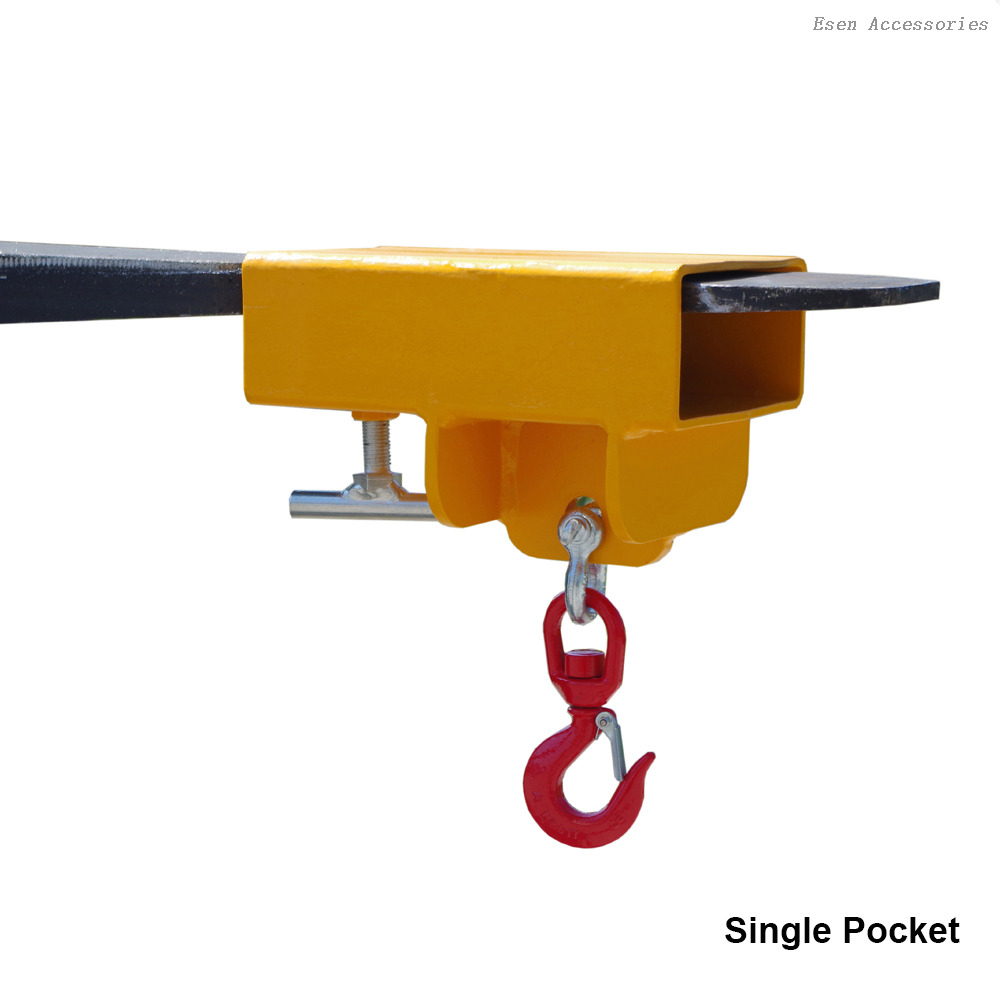

MS10 | 1000 | 250x160x160 | / | 150x70 | 8 |
MS25 | 2500 | 250x160x180 | / | 150x70 | 10 |
MK10 | 1000 | 450x120x120 | 250 | 140x65 | 14 |
MK25 | 2500 | 660x150x170 | 450 | 150x70 | 28 |

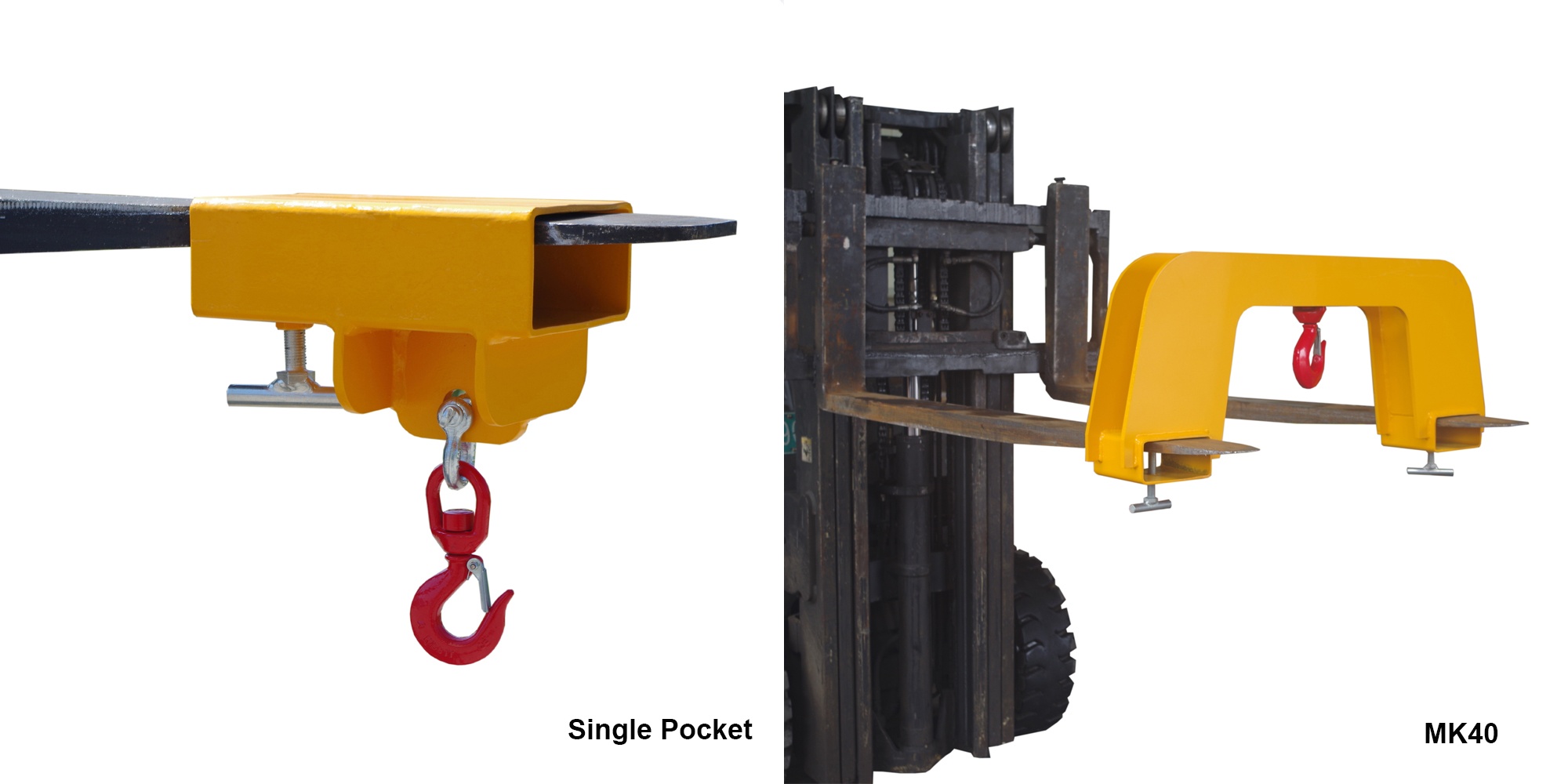

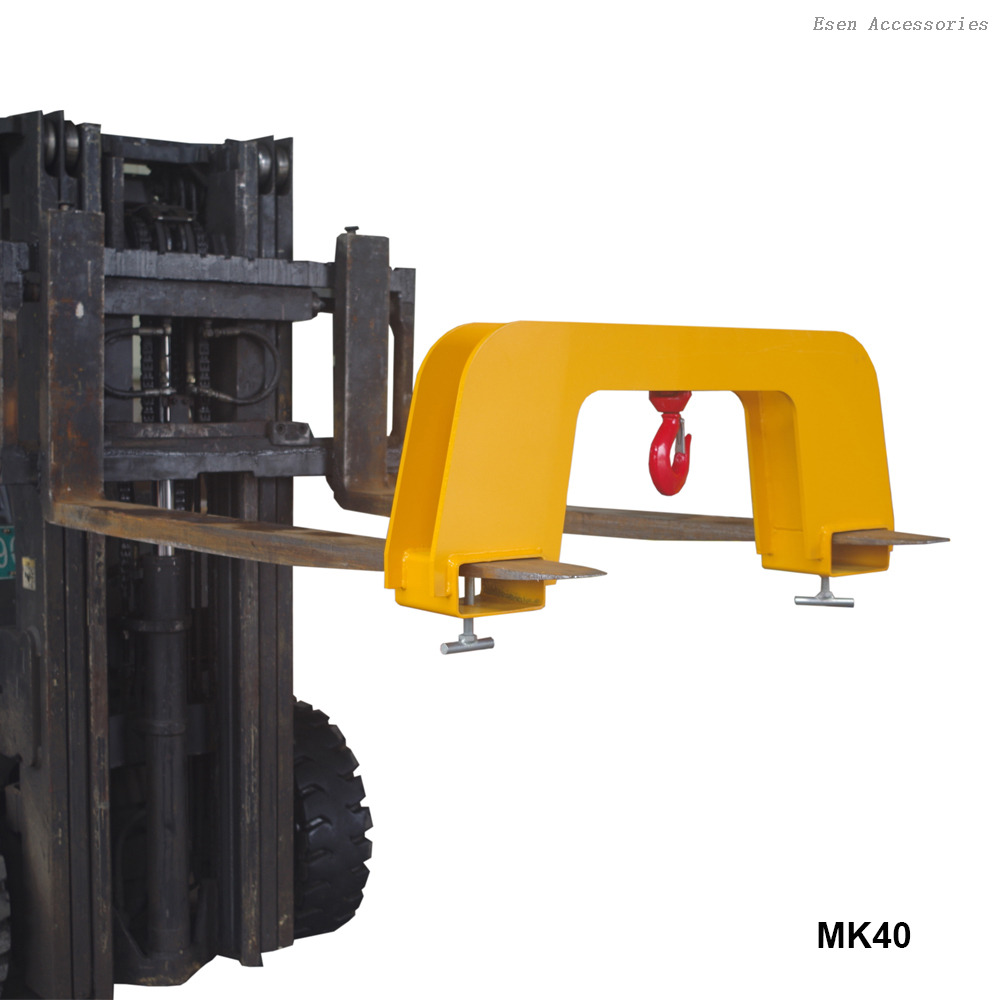

MK40 | 4000 | 1000x150x50 | 780 | 150x70 | 44 |
MK50 | 5000 | 720x150x210 | 450 | 190x90 | 49 |
Application

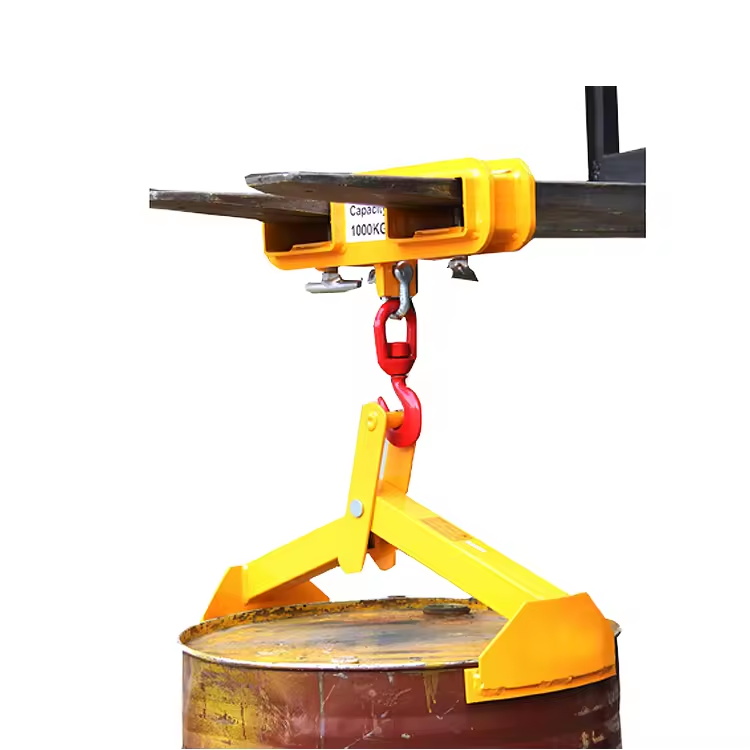

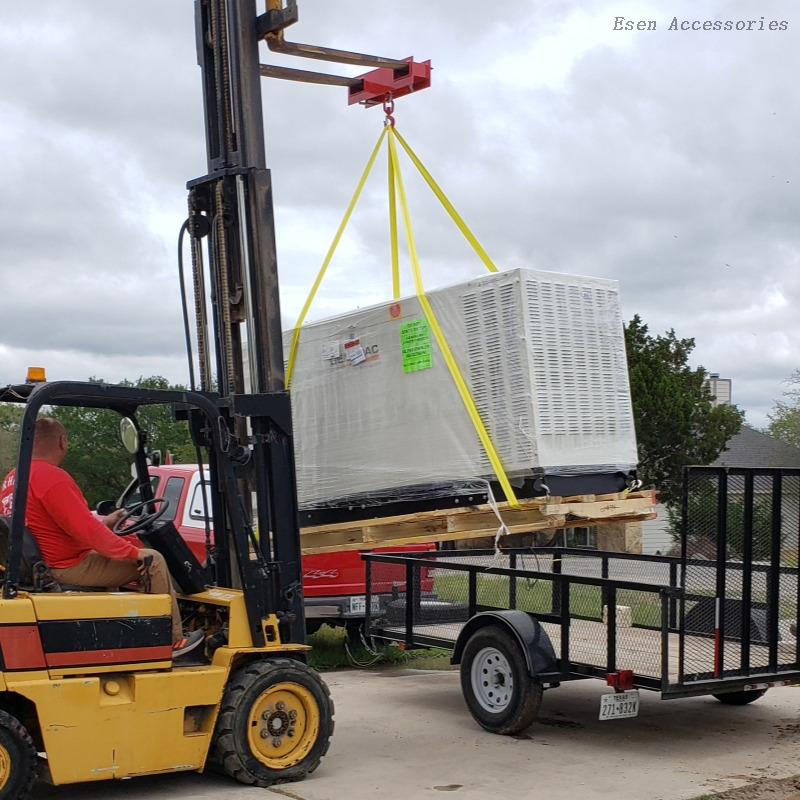

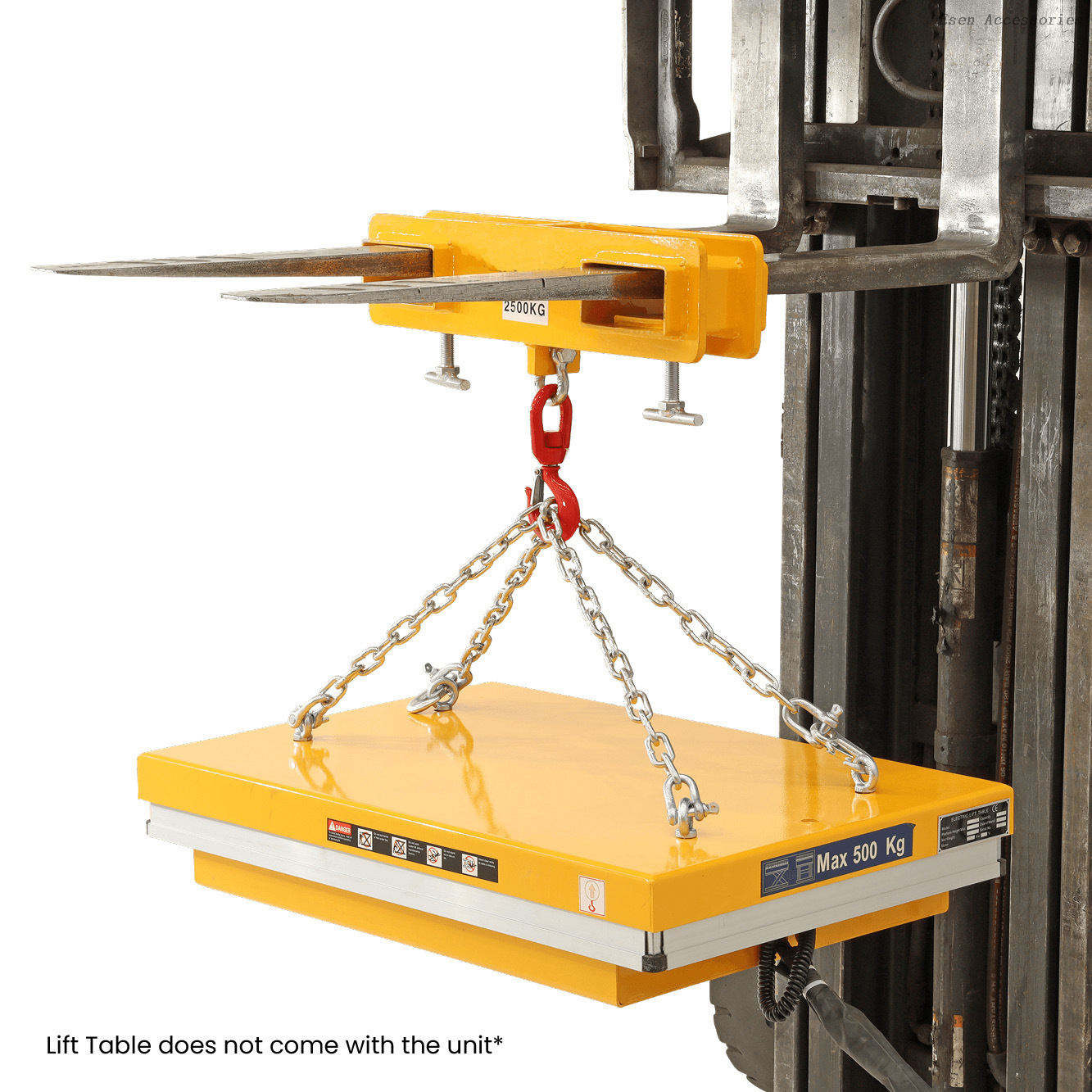

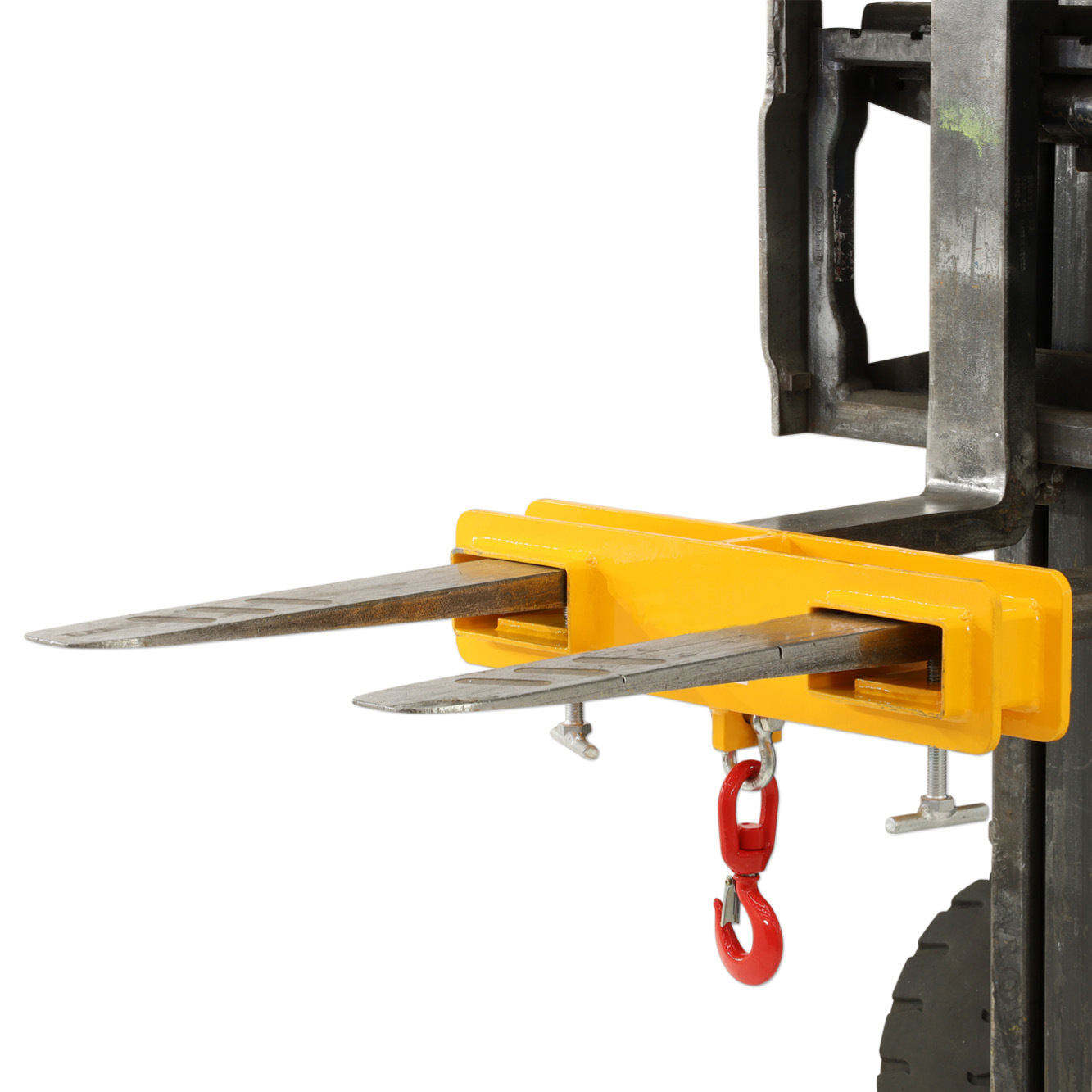

Our adjustable fork mounted hook attachment is a simple and cost-effective way of safely hanging a load under the forks of the lift truck.Fork hook can convert your existing forklift into a mobile crane in seconds.
Packaging & Shipping
Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
Company Advantages
We are proud to have a professional and experienced independent R&D team dedicated to product innovation. Our engineers specialize in structural design, material optimization, and new product development.With strong R&D capabilities, we offer OEM/ODM customization services to meet your specific requirements. Whether you need modified sizes, special materials, custom surface treatments, or entirely new structures, our team can provide comprehensive technical support from design to mass production.
Choose us for reliable quality, technical expertise, and the flexibility to create exactly what you need.
Exhibition
FAQ
Q: What is a forklift lifting hook attachment used for?
A: It converts your standard forklift into a mobile crane, for hoisting heavy non-palletized cargo such as molds, steel plates, machinery parts and other suspended loads.
Q: What load capacities can you supply?
A: Standard capacities: 1 Ton, 2.5 Ton, 4 Ton, 5 Ton. Custom-tonnage service is available upon request.
Q: Will this lifting beam fit my existing forklift forks?
A: It suits most common-size forklift tines. We can customize the inner size of fork pockets according to your fork width & thickness. Please send us your fork dimensions before placing an order.
Q: Do I need to make any modifications to my forklift for installation?
A: No modification required. Simply slide the forks into the pockets and fasten the locking T-bolts. Installation can be finished in minutes.

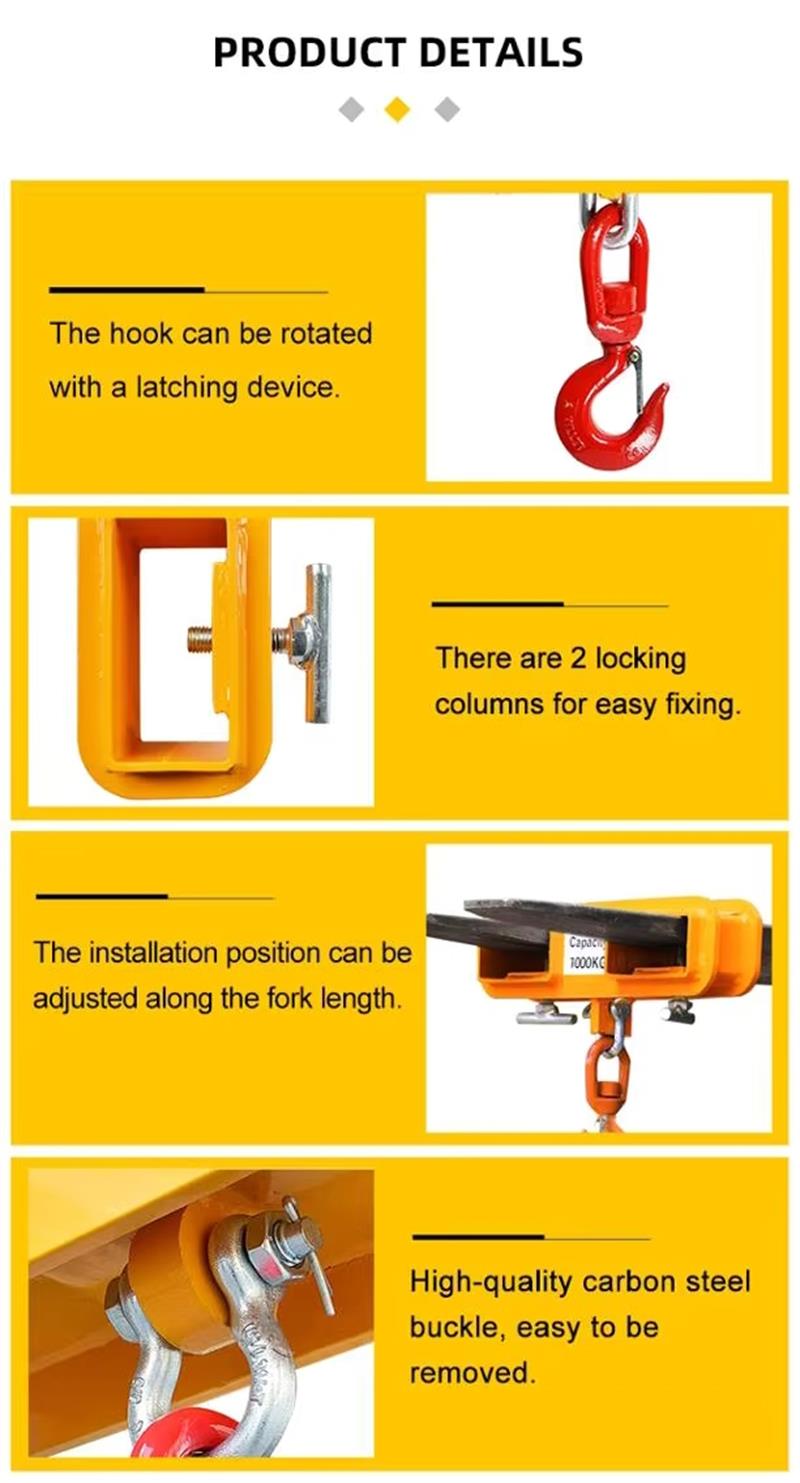

Q: Is the lifting hook 360 degree rotatable?
A: Yes. Equipped with a swivel shackle, the hook can rotate freely, effectively preventing wire ropes or slings from twisting during lifting.
Q: Does the crane hook come with a safety latch?
A: All hooks are fitted with springloaded safety latches, which stop slings, chains and lifting straps from slipping off accidentally.
Q: Can I adjust the beam position on the forklift tines?
A: Sure. The whole beam can slide back and forth on the forks, so you can adjust the load center to achieve stable, balanced lifting.
Q: What materials are used for this forklift hoist attachment?
A: The main beam is heavyduty carbonsteel welded construction. The hook is highstrength forged alloy steel, built for longtime heavyduty service.
