Galvanized Steel Corner Casting Bottom Side Lock ISO Shipping Container Twist Locks

Side mounted twist locks are shipping container connection devices designed specifically to allow a shipping container to be bolted or welded to a footing after the shipping container has been placed into position.
Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

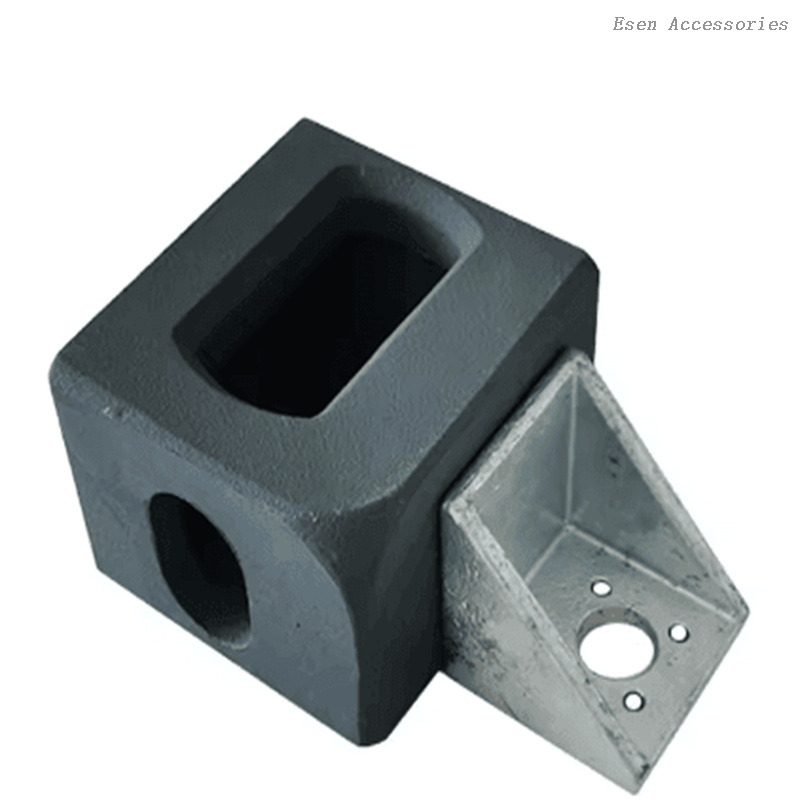

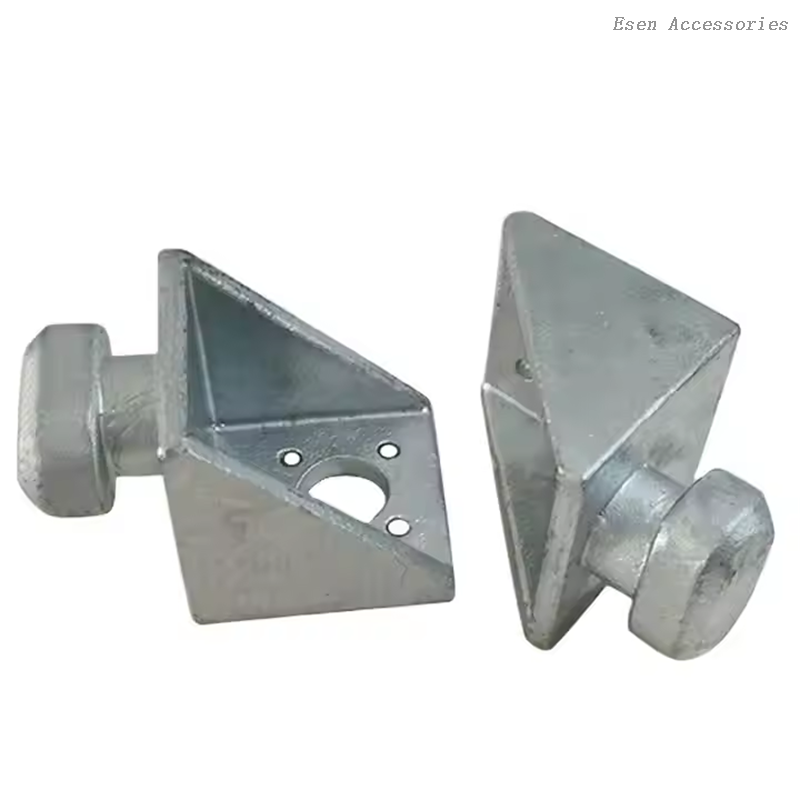

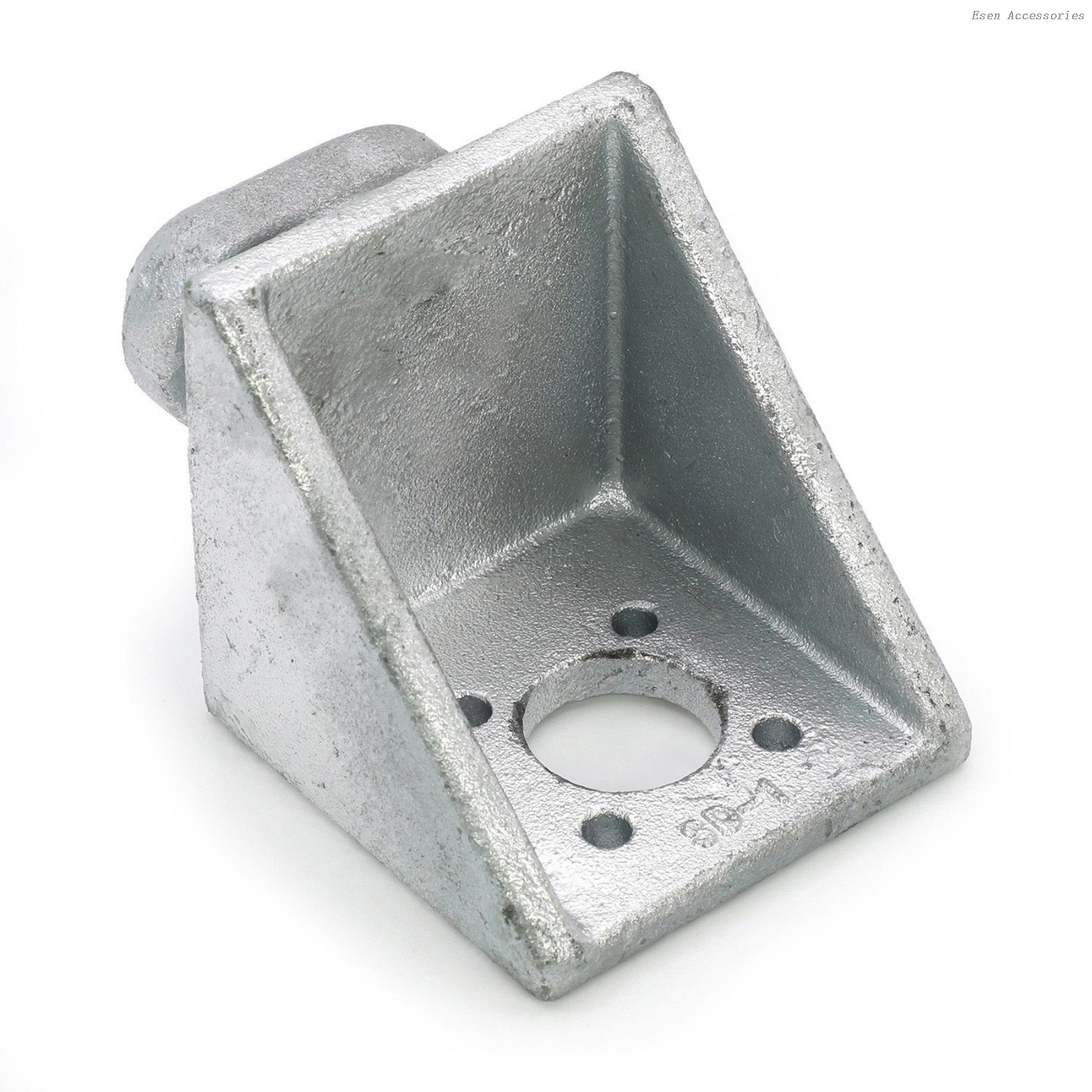

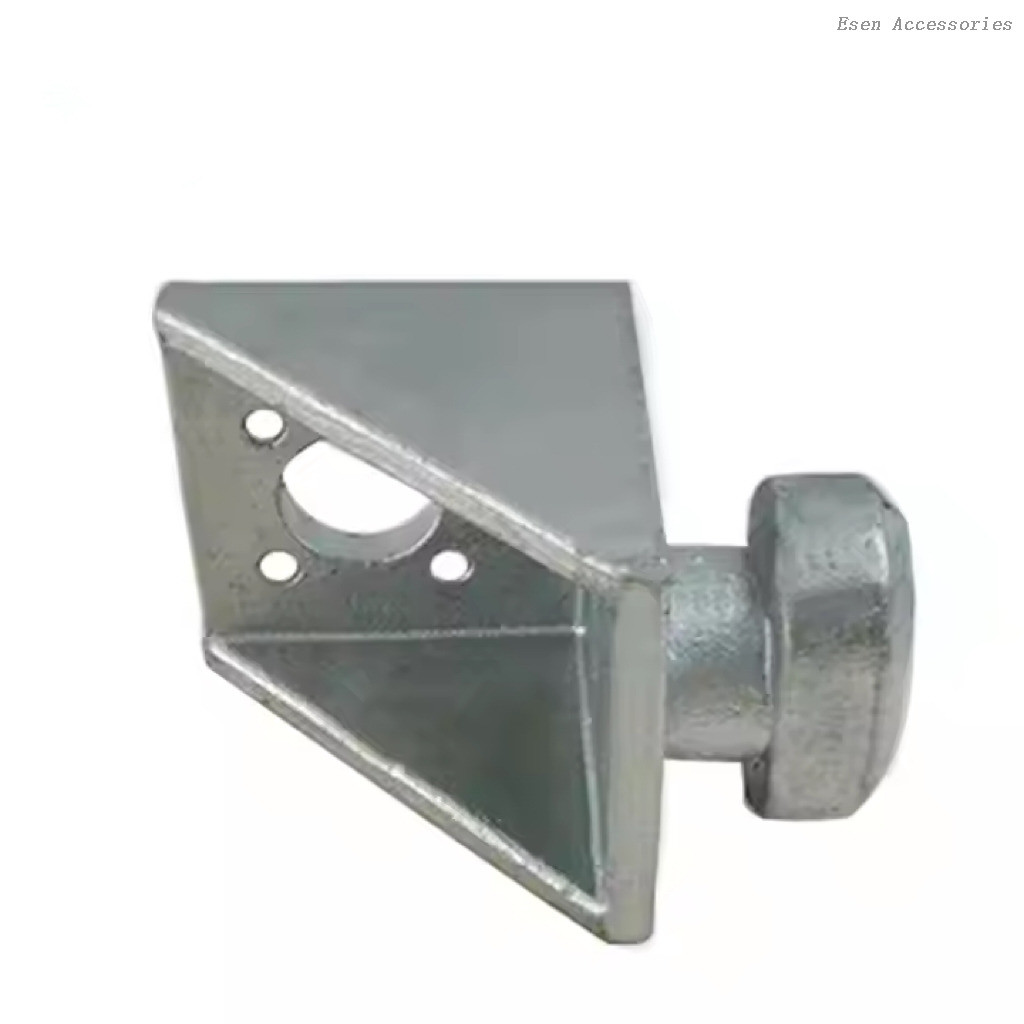

Side mounted twist locks are shipping container connection devices designed specifically to allow a shipping container to be bolted or welded to a footing after the shipping container has been placed into position. Our unique patented design is easily installed into the side hole of a shipping container corner casting.

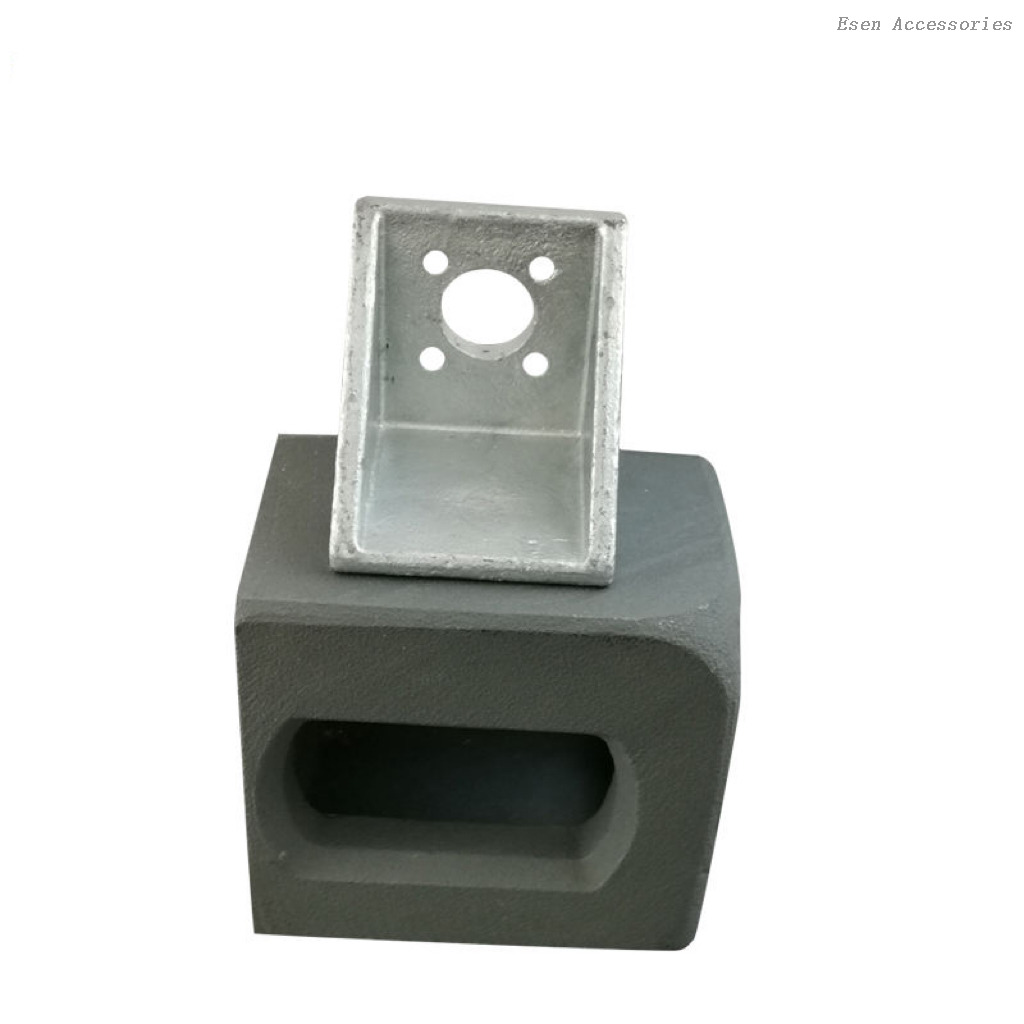

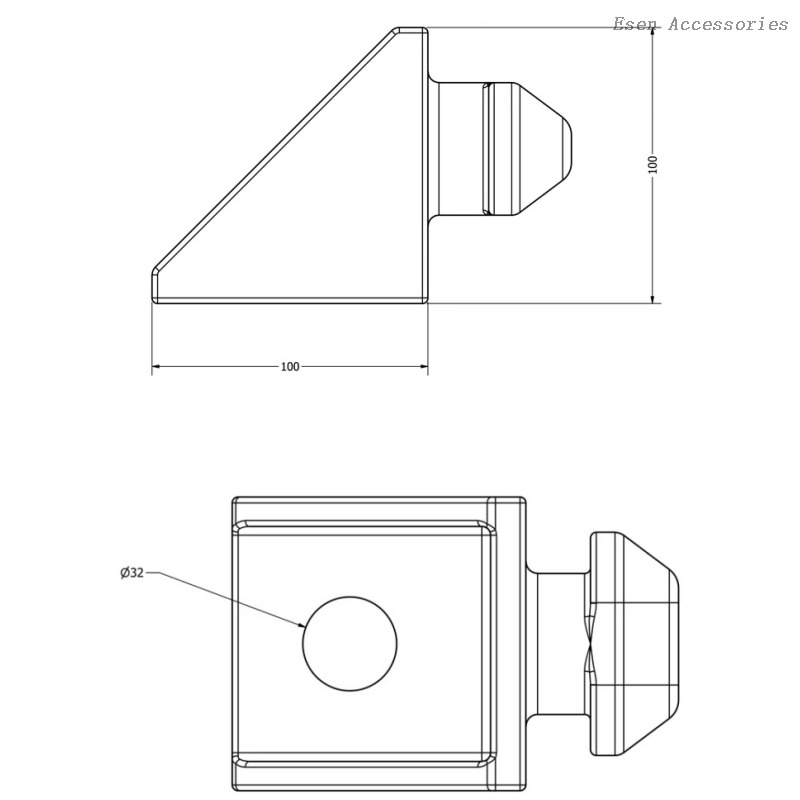

2_看图王_副本3_看图王IMG_3394

Specification


Product Name Container Corner Lock
Meterial Casting Steel
Finish Hot Dip Galvanized

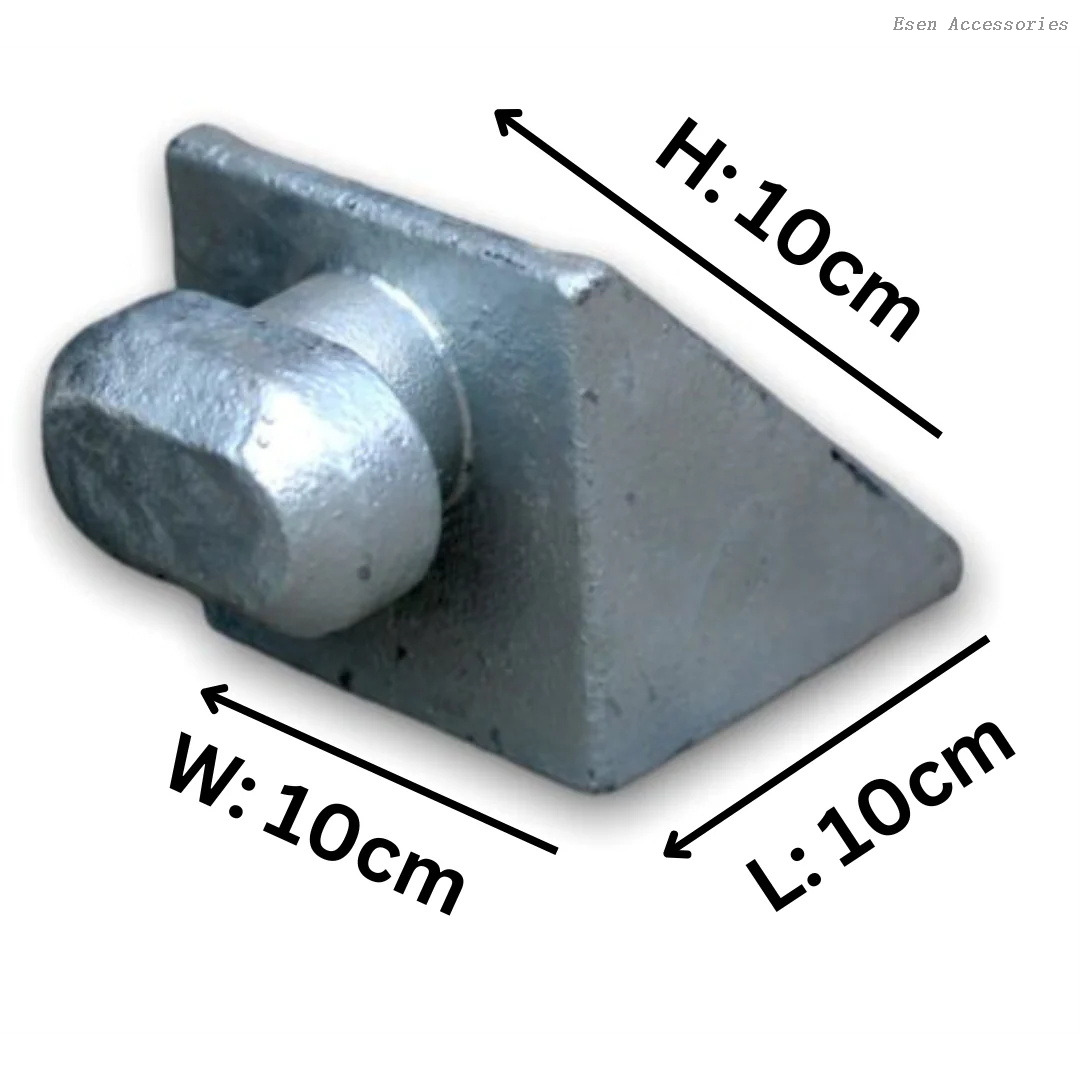

Size 10*10*10cm
Hole Size 32mm
Thickness 10mm
Weight 3kg
Fuction Tie down
Application Fix the container on the ground

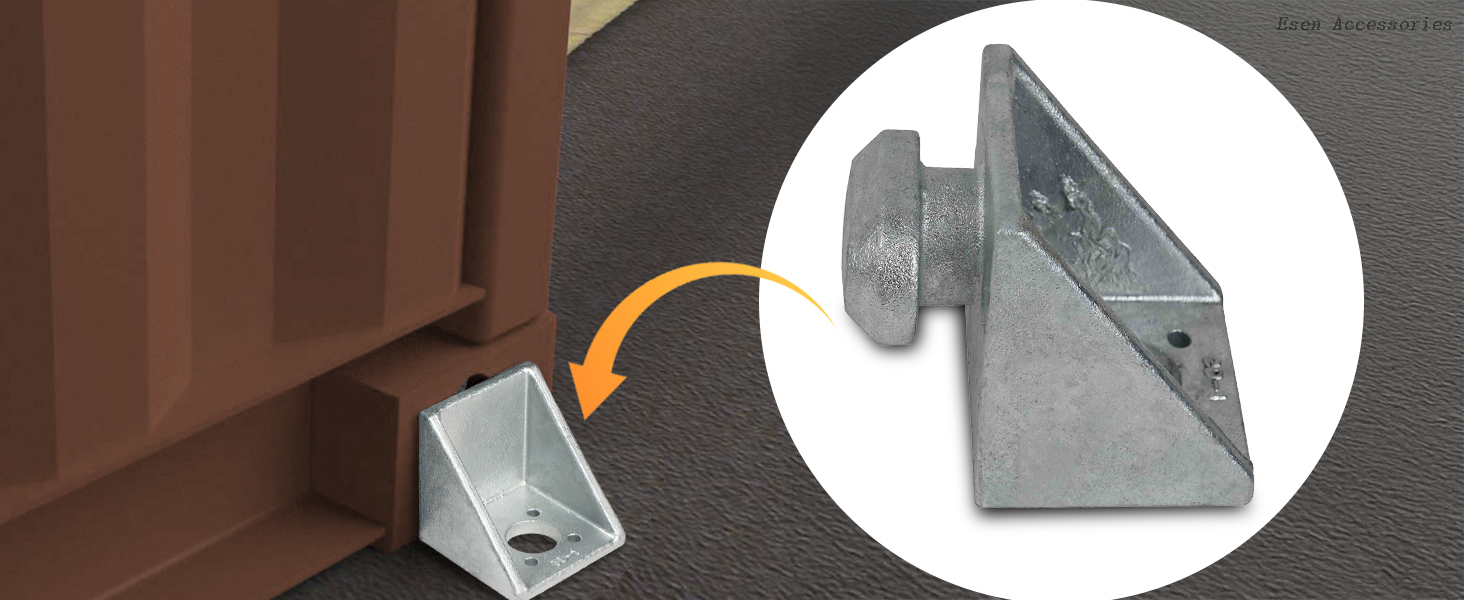

Application

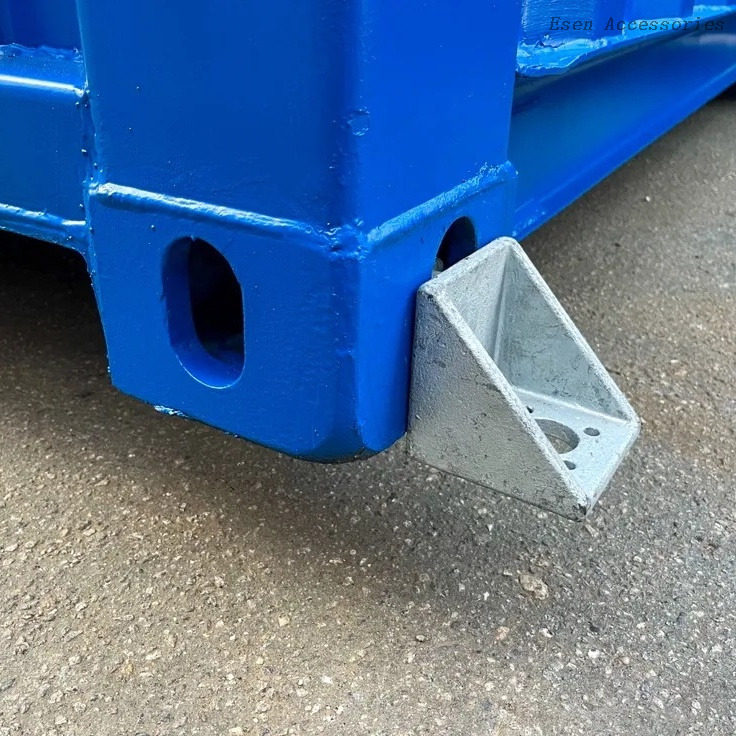

Keep your containers securely anchored with our precision-engineered Corner Lock. Designed to fit into standard ISO bottom corner castings, each lock twists and secures firmly in place, providing a solid fixing point for ground anchoring.

Container twist locks are a critical component in the shipping and transportation industry. They play a vital role in securing containers on vessels, trailers, chassis, and railcars.

应用2

应用

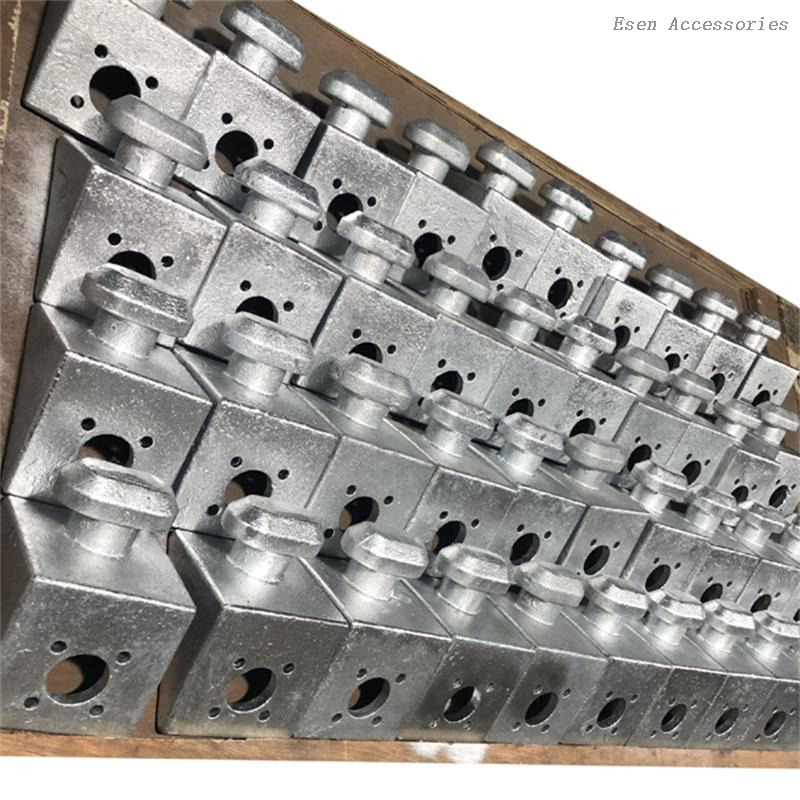

Packing & Delivery

SIDE-LOCK-1

We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.

All steps are carefully made and tested by engineers.
We can provide all kinds of container spare parts, and we can also accept mixed orders into one container for transportation.

FAQFAQ


Previous:
Next:
ISO Corner Casting Side Lock iso container twist locks Steel shipping container lock steel container corner lock Galvanized Steel corner lock shipping Container Tie Down Twist lock Container Bottom Corner Connecting Lock container Securing Fitting Lashing Parts
