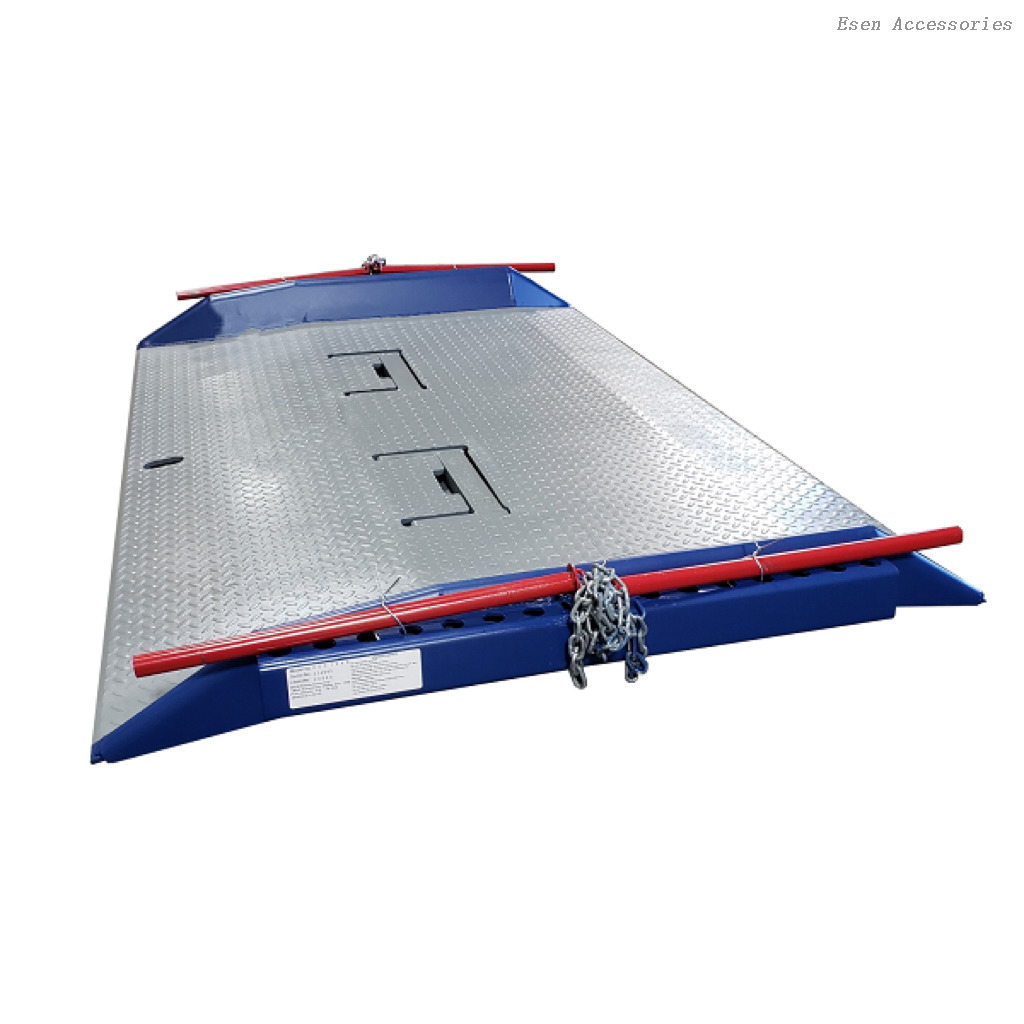

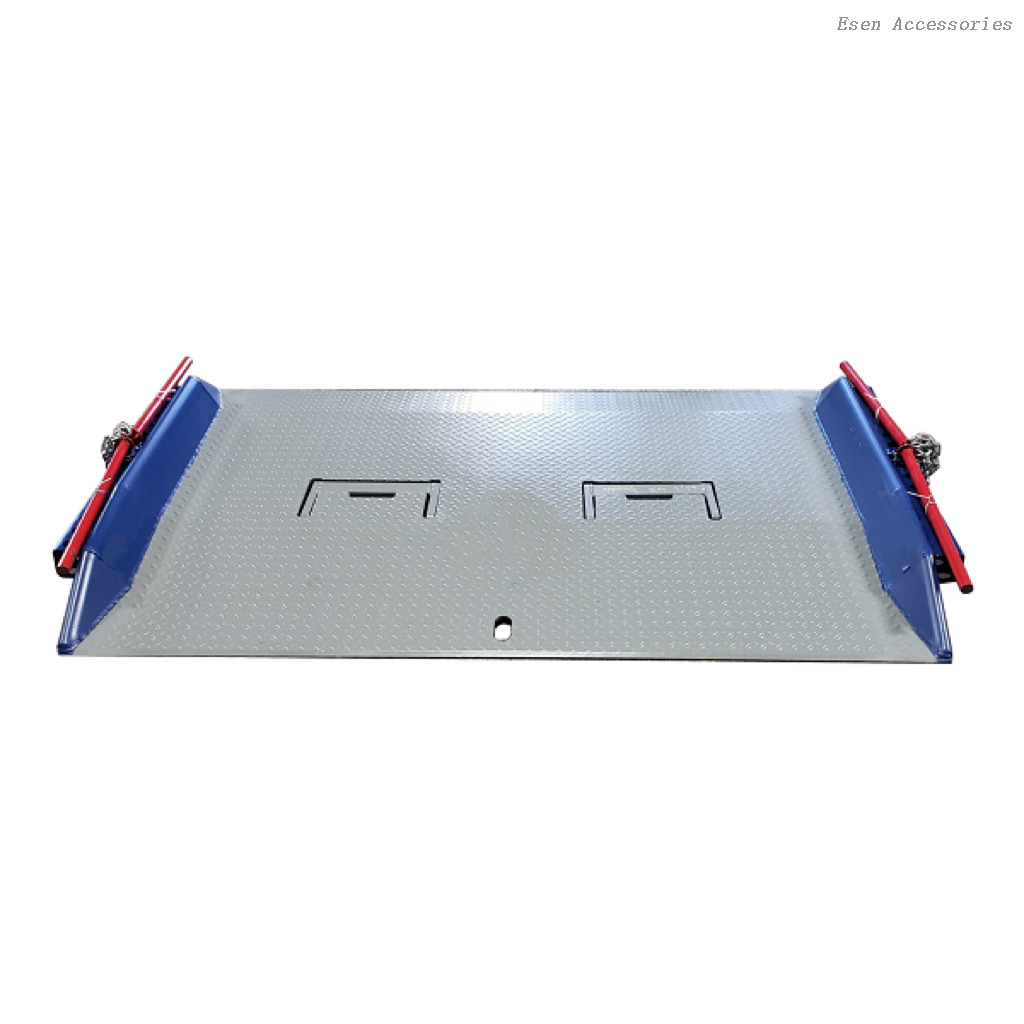

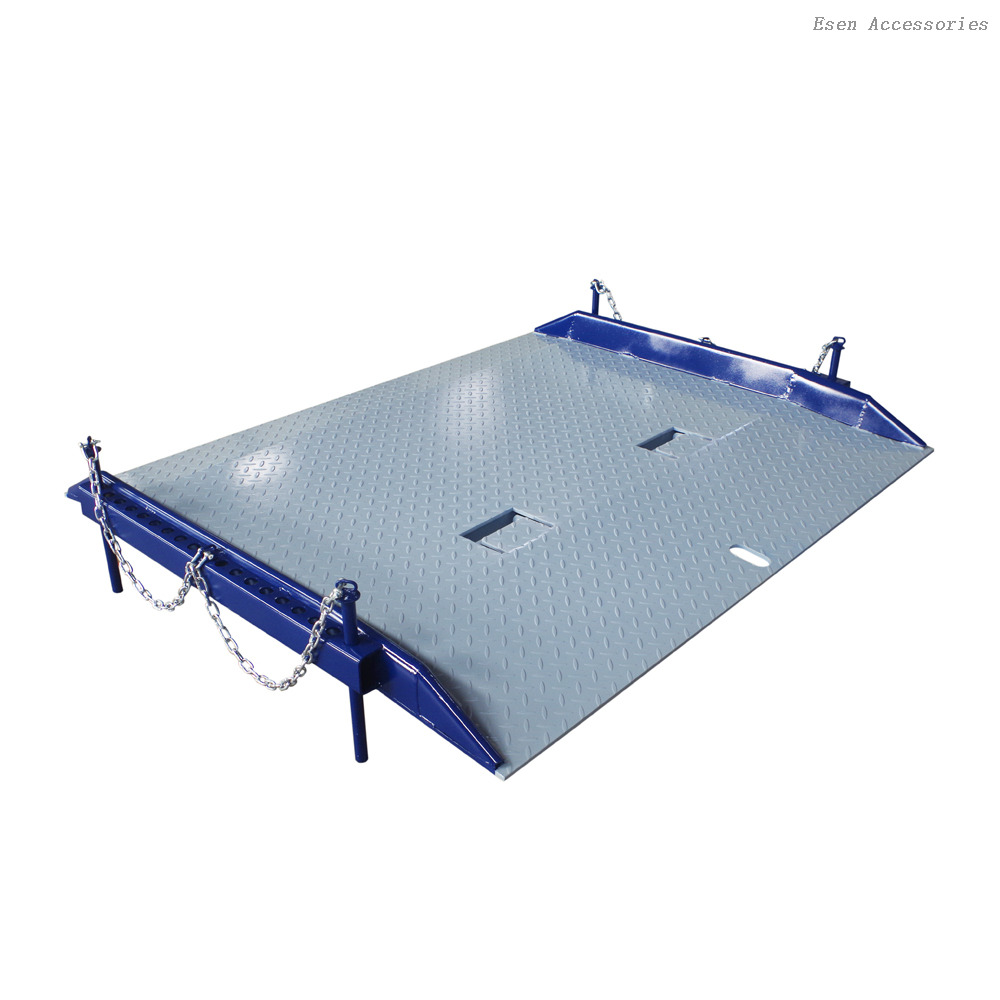

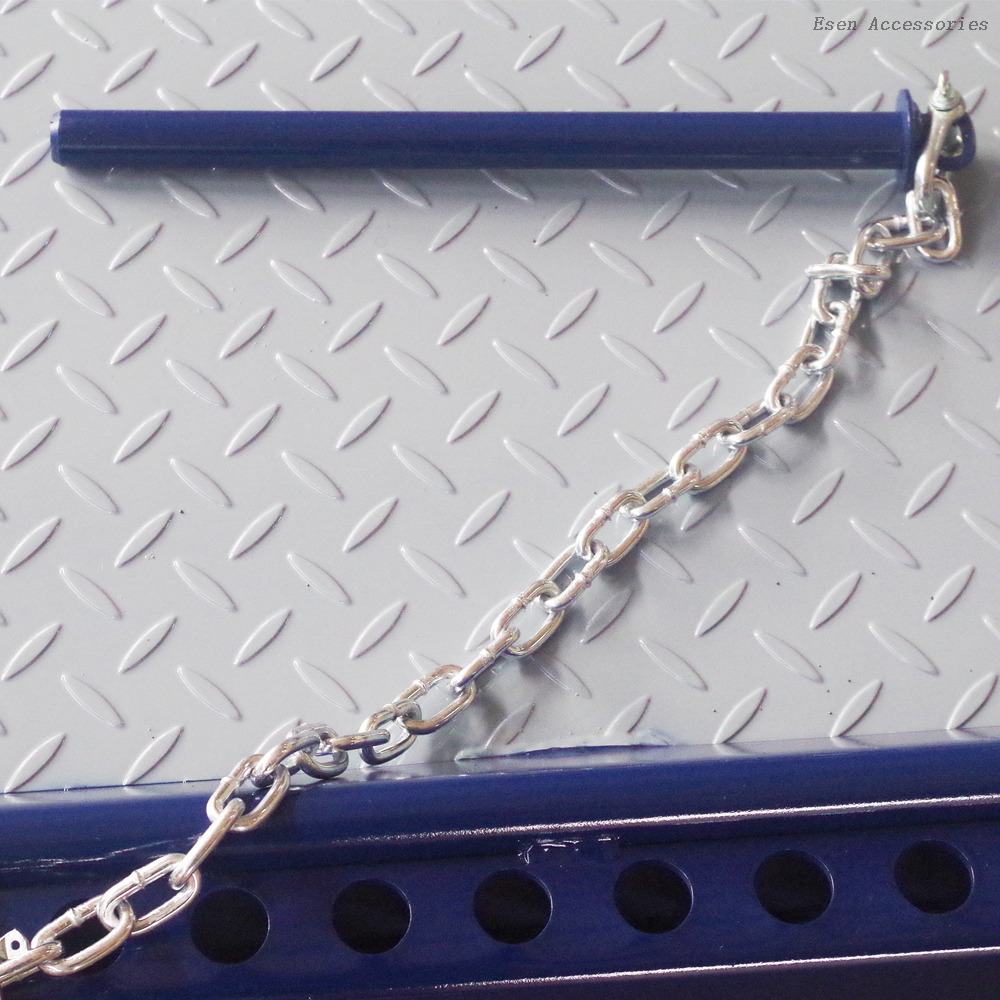

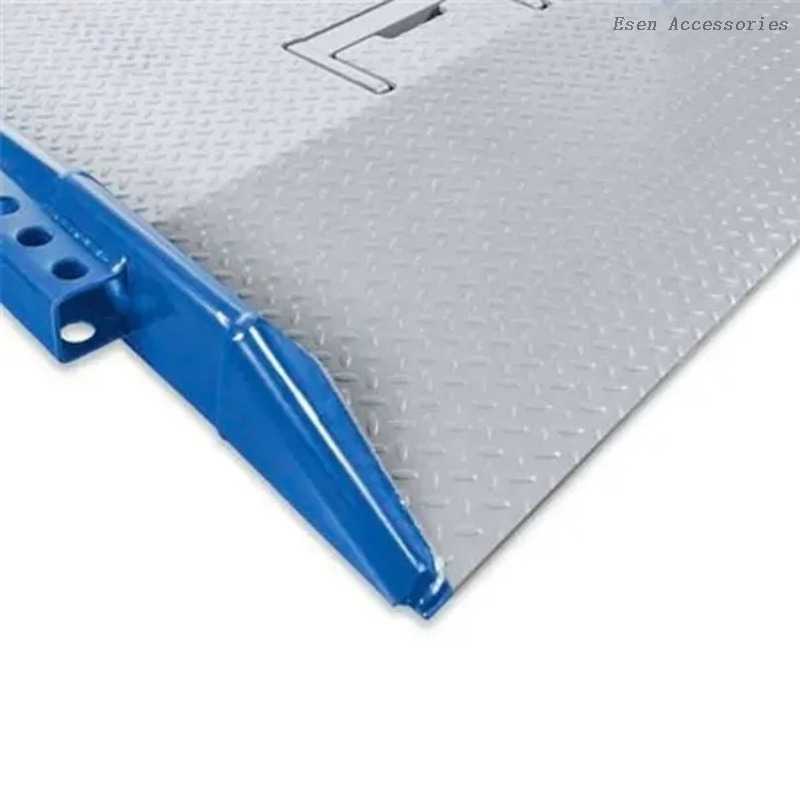

This loading/unloading platform is mainly used for connecting the logistics platform with the truck. It can quickly connect the loading/unloading platform with the truck's cargo compartment, and can also quickly disengage, facilitating the loading and unloading of goods by forklifts. There are connecting chains on both sides, facilitating the movement of forklifts. Guardrails are welded on both sides to prevent the forklift from falling. The surface is galvanized or painted. The specific dimensions can be discussed with our technical staff to select a platform with appropriate load-bearing capacity and suitable size.
Detailed Specifications
| Product Name | Dock Boards |
| Material | Steel |
| Capacity | 7Ton,12Ton |
| Color | Silver |

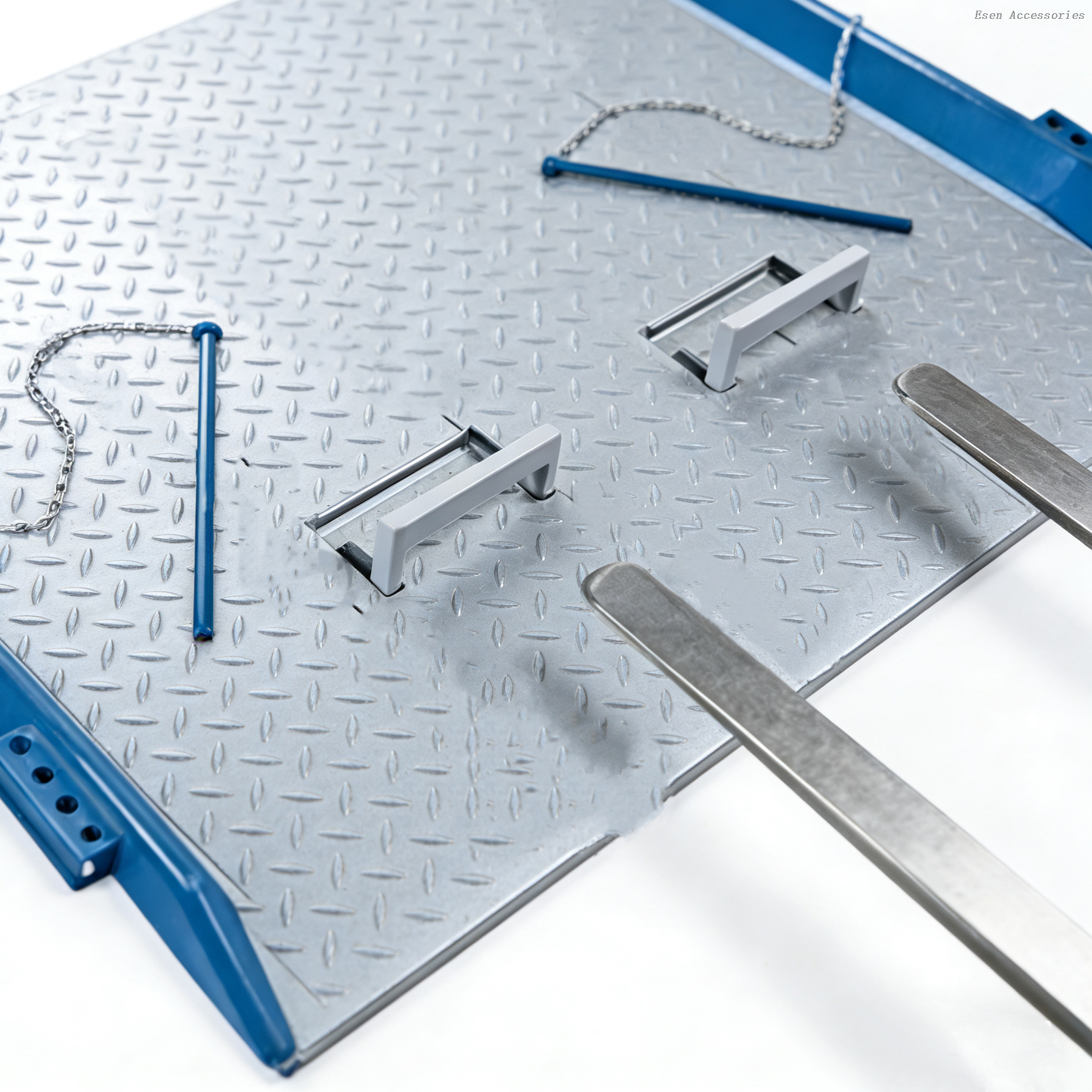

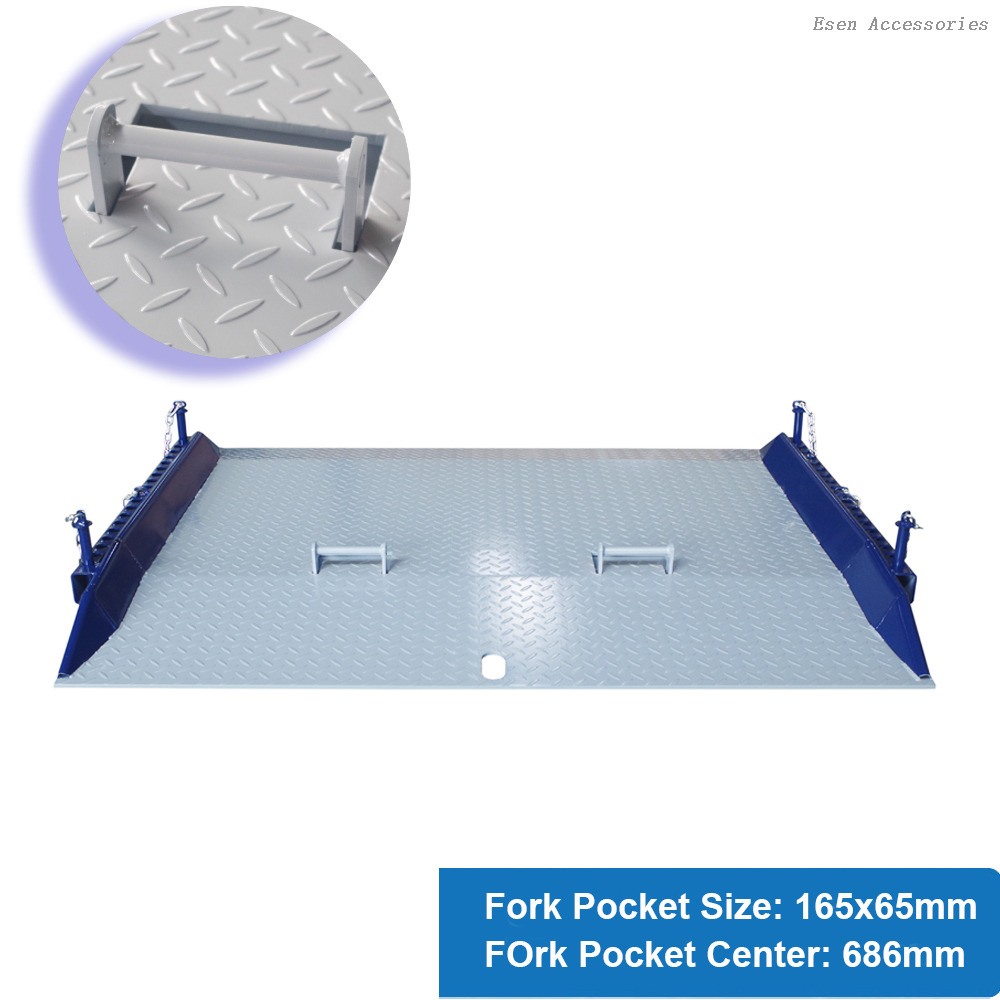

| Fork Pocket Size | 165*65mm |
| Fork Pocket Center | 686mm |
| Model | Capacity(kg) | Width(mm) | Pin Length(mm) | Weight(kg) | 14% Grade Height Up(mm) | 19% Grade Height Up(mm) |
| 1 | 7000 | 1524 | 610 | 275 | 216 | 380 |
| 2 | 7000 | 1830 | 762 | 431 | 254 | 330 |
| 3 | 7000 | 1980 | 610 | 356 | 216 | 280 |
| 4 | 7000 | 2134 | 915 | 486 | 305 | 380 |
| 5 | 12000 | 1524 | 610 | 396 | 216 | 380 |
| 6 | 12000 | 1830 | 762 | 528 | 254 | 330 |
| 7 | 12000 | 1980 | 610 | 492 | 216 | 280 |
| 8 | 12000 | 2134 | 915 | 680 | 305 | 380 |
Application
Built to handle the widest variety of trailer types and docking conditions, the dock Boards unique dual pin locking system makes it the most versatile dock board on the market. Ideal for use on tough park out, lift gate trailer, and angled docking applications.

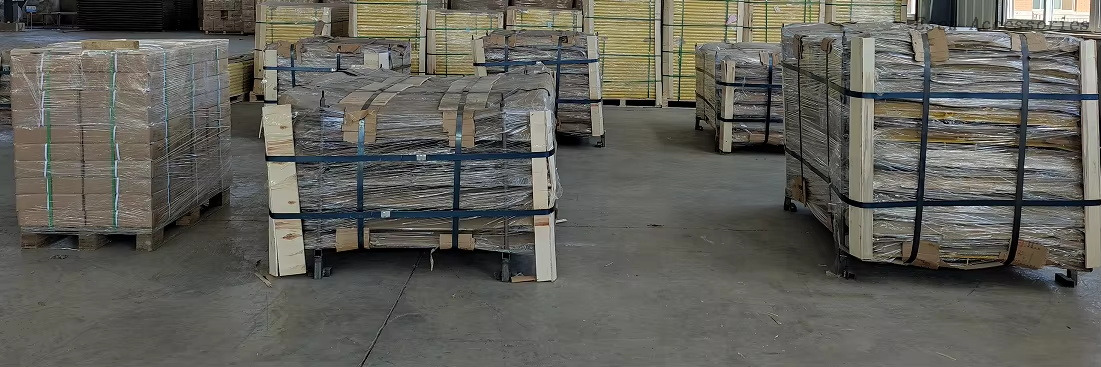

Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Plywood or steel pallet/box.
Usually 10 pcs are packed into one pallet, 8 pallets loaded into one 20ft container.
Our Advantages
We are proud to have a professional and experienced independent R&D team dedicated to product innovation. Our engineers specialize in structural design, material optimization, and new product development.With strong R&D capabilities, we offer OEM/ODM customization services to meet your specific requirements. Whether you need modified sizes, special materials, custom surface treatments, or entirely new structures, our team can provide comprehensive technical support from design to mass production.
Choose us for reliable quality, technical expertise, and the flexibility to create exactly what you need.
