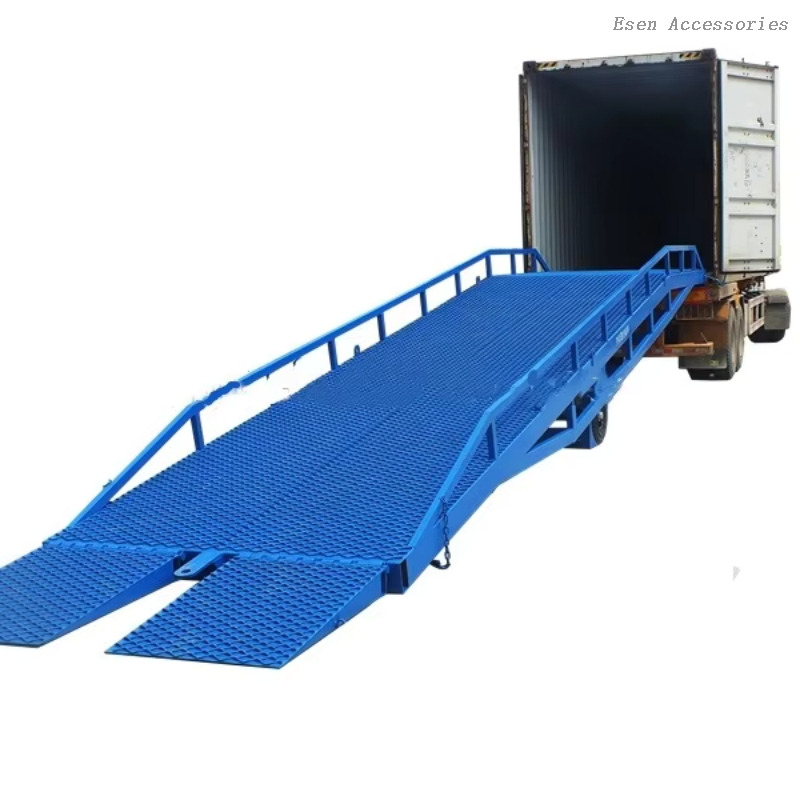

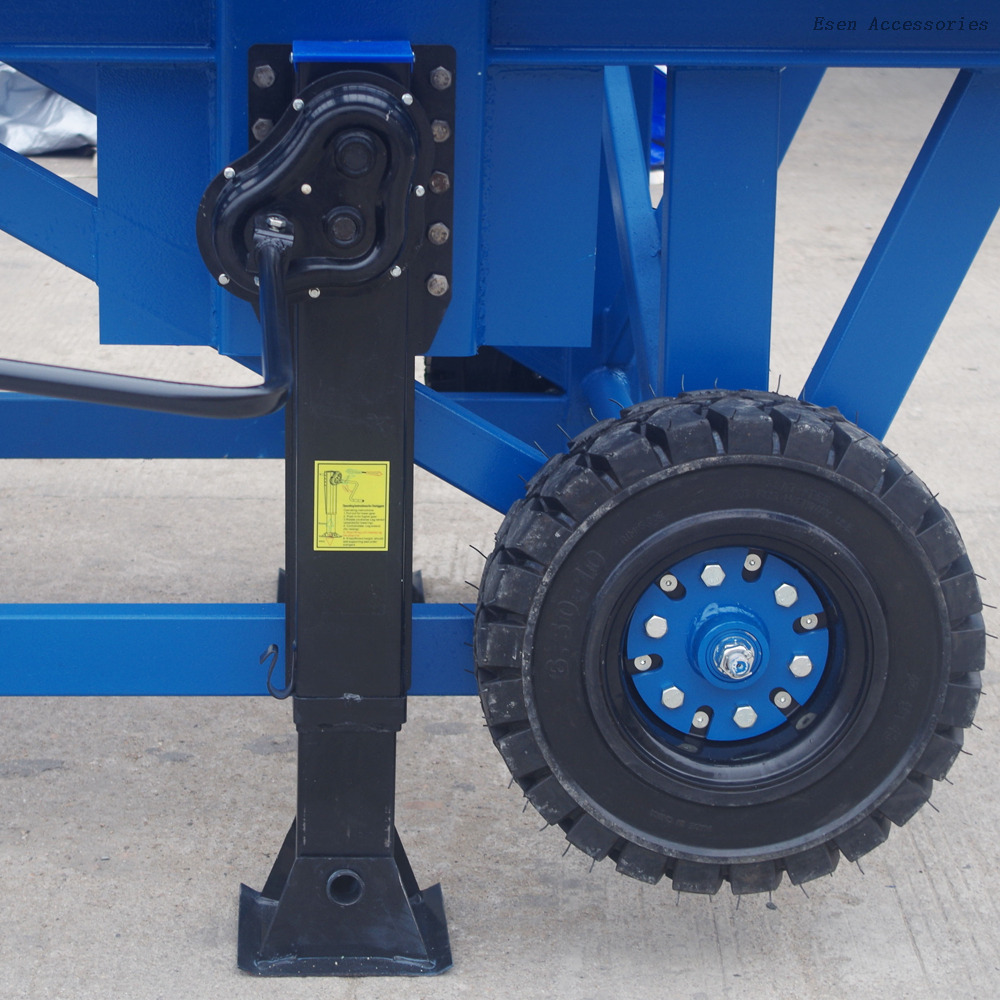

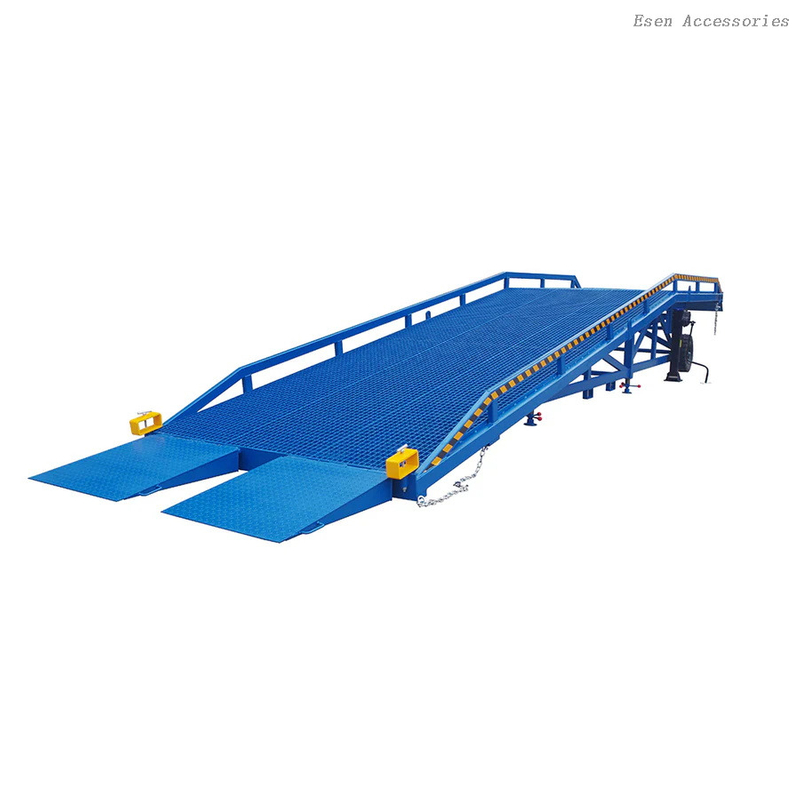

The mobile dock leveler is an auxiliary equipment for heavy forklift and handling equipment in the loading and unloading of container trucks. It can be moved easily and can realize quick loading and unloading of goods. The rolling bridge is operated by hand hydraulic pump, without power supply and suitable for loading and unloading of various occasions.
Advantage：
We can supply 8-16T yard ramp.

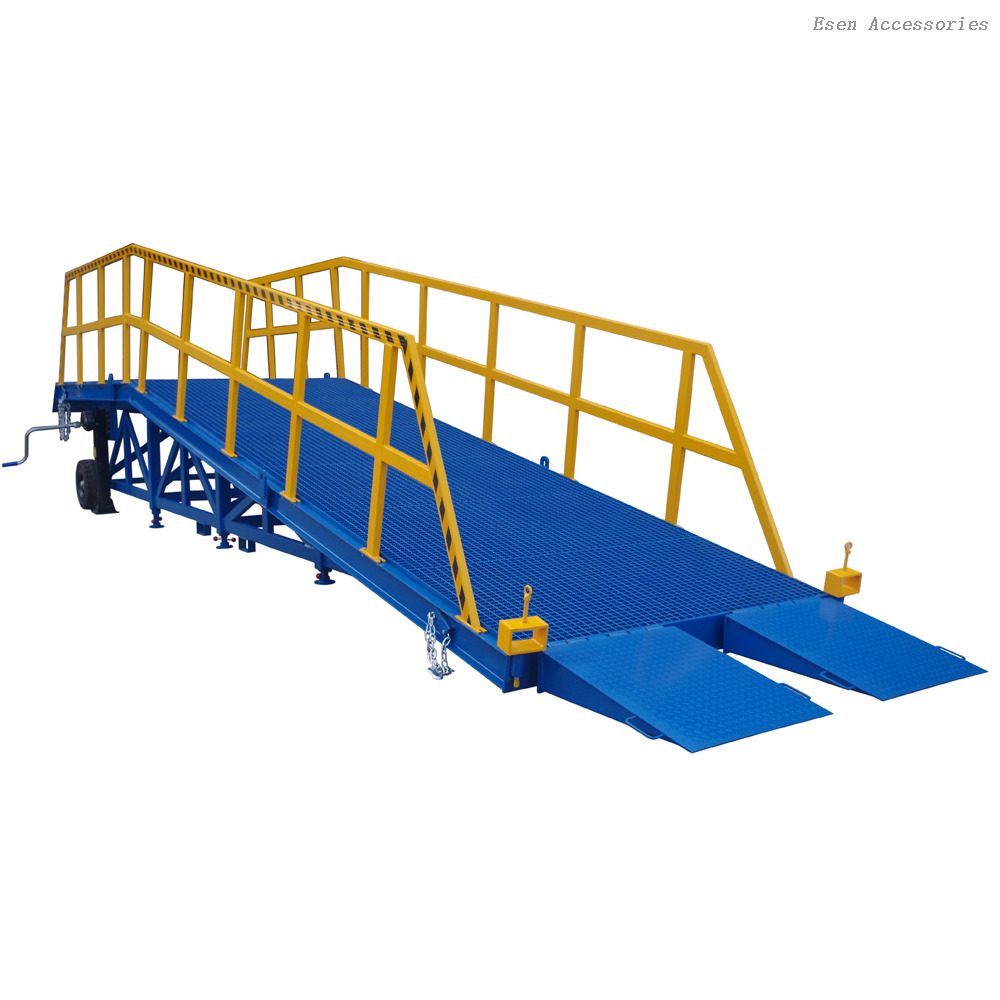

Hand rails are optional.
Fork pockets boths side make it easier to move the yard ramp by forklift.
Each yard ramp has lifting eye for loading and transportation.
Bumpers ahead can protect both truck or ramps.
Detailed Specifications
| Product Name | Mobile Yard Ramp |
| Material | Steel |
| Capacity | 8Ton,10ton,12Ton,16Ton |
| Length | Standard: 10000mm Long: 13000mm |
| Width | 2200mm |
| Size(Platform+Ramp ) | Standard:3000mm+7000mmx2200mmx1200 -1680mm Long:3000mm+9000mmx2200mmx1200-1680mm |
| Working Height | Adjustable 1200mm - 1680mm |
| Weight | 2930-3966kg |
| Color | Blue or Customized |
Size
| Model | Capacity(ton) | Weight(kg) | Length(mm) | Dimensions (Platform+Ramp L*W*H )(mm) |
| 8T-1 | 8 | 2930 | 10000 | 3000+7000x2200x1200 -1680 |
| 8T-2 | 8 | 3150 | 10000 | 3000+7000x2200x1200 -1680 |
| 8T-3 | 8 | 3090 | 13000 | 3000+9000x2200x1200 -1680 |
| 8T-4 | 8 | 3346 | 13000 | 3000+9000x2200x1200 -1680 |
| 10T-1 | 10 | 2970 | 10000 | 3000+7000x2200x1200 -1680 |
| 10T-2 | 10 | 3010 | 10000 | 3000+7000x2200x1200 -1680 |
| 10T-3 | 10 | 3130 | 13000 | 3000+9000x2200x1200 -1680 |
| 10T-4 | 10 | 3386 | 13000 | 3000+9000x2200x1200 -1680 |
| 12T-1 | 12 | 3200 | 10000 | 3000+7000x2200x1200 -1680 |
| 12T-2 | 12 | 3420 | 10000 | 3000+7000x2200x1200 -1680 |
| 12T-3 | 12 | 3200 | 13000 | 3000+9000x2200x1200 -1680 |
| 12T-4 | 12 | 3456 | 13000 | 3000+9000x2200x1200 -1680 |
| 16T-1 | 16 | 3300 | 10000 | 3000+7000x2200x1200 -1680 |
| 16T-2 | 16 | 3520 | 10000 | 3000+7000x2200x1200 -1680 |
| 16T-3 | 16 | 3776 | 13000 | 3000+9000x2200x1200 -1680 |
| 16T-4 | 16 | 3966 | 13000 | 3000+9000x2200x1200 -1680 |
Application

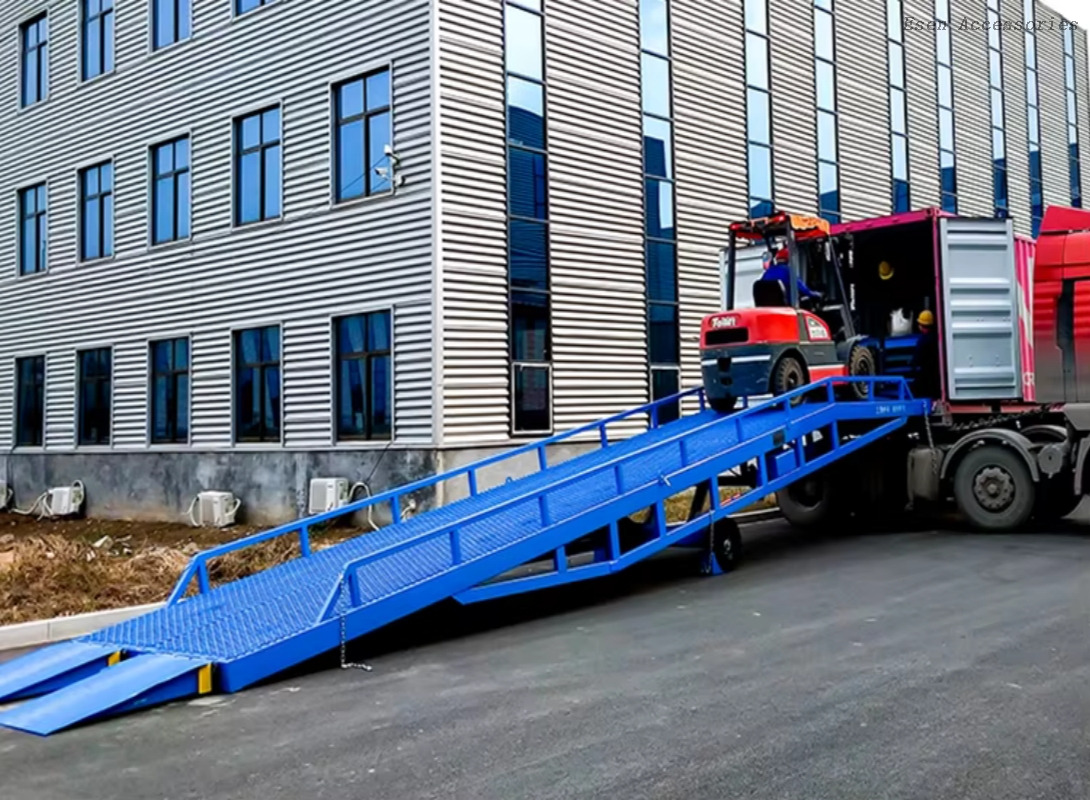

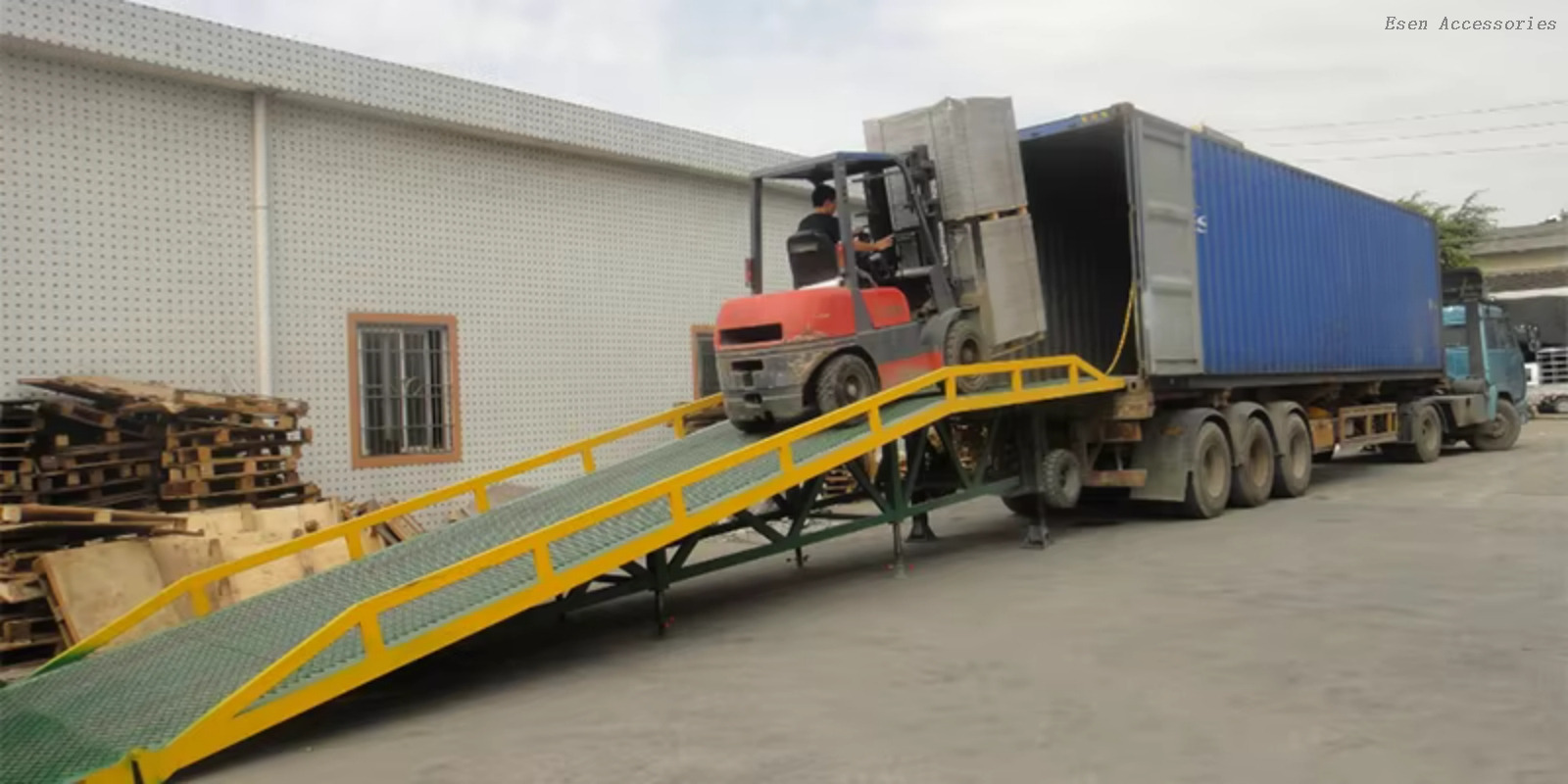

Ramp is for cargo handling and forklift use, with adjustable height according to the level of automobile car. With this dock ramp, truck can directly go through into interior of the container for bulk cargo handling. With only a single person operation, you can achieve rapid loading and unloading of goods. It enables companies to reduce a lot of labor, improve efficiency, and obtain greater economic benefits.
Packaging & Shipping
1:Packing in to box.Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.All the steps made carefully and test by engineers.
2:We could supply allkinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
Our Advantage
We are proud to have a professional and experienced independent R&D team dedicated to product innovation. Our engineers specialize in structural design, material optimization, and new product development.With strong R&D capabilities, we offer OEM/ODM customization services to meet your specific requirements. Whether you need modified sizes, special materials, custom surface treatments, or entirely new structures, our team can provide comprehensive technical support from design to mass production.
Choose us for reliable quality, technical expertise, and the flexibility to create exactly what you need.
