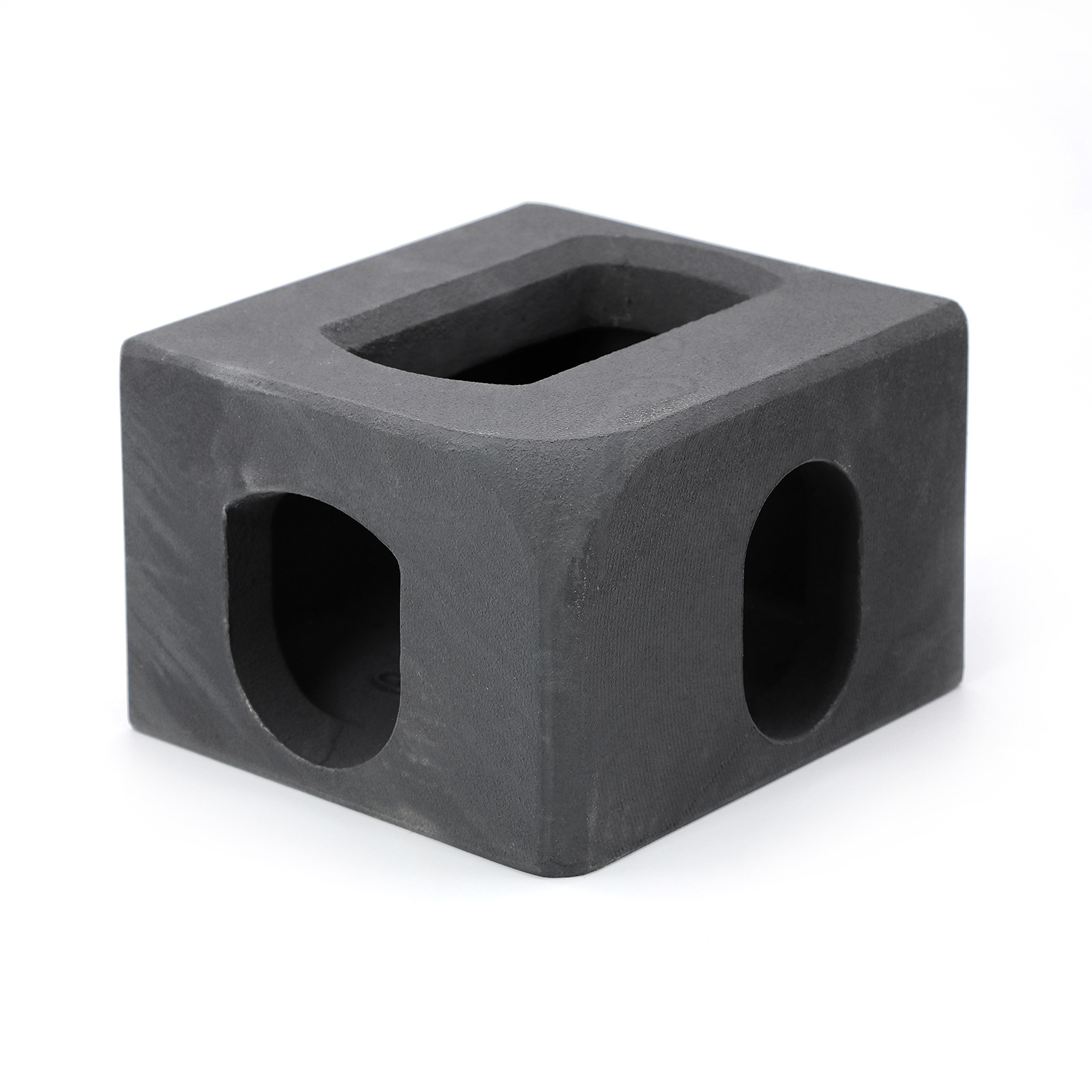

Our STEEL CORNER FITTINGS meet ISO 1161 and are ABS certified.
Corner Fittings are available as:
Top Right
Top Left
Bottom Right
Bottom Left
These are the fittings found on all ISO type Containers used for intermodal shipping. They are designed to accept a variety of TANDEMLOC products. They are the fitting to lift from or tiedown from.
MATERIAL: Low carbon steel for welding
Corner conforms to ISO 1161.
American Bureau of Shipping Certification is available.
Product Notes
TANDEMLOC'S ENGINEERING DEPARTMENT’S STATEMENT REGARDING ISO 1161 CORNER FITTING WLL:
An ISO 1161 Corner Fitting’s WLL is dependent upon how it is held in place, how it is loaded, and the physical size (bearing area) of the components used to engage the corner fittings. Each of these will have possibly dramatic impacts on how the corner fitting will respond under a given load. As an ISO sanctioned design, Tandemloc may only provide customers the physical dimensions and minimum material properties of the corner fittings. Armed with this information, end users can employ engineers of their choosing to determine the strength (WLL) of the corner fittings in their given custom applications (i.e. applications used outside of the ISO 1161 corner fittings’ original design intent).
The minimum material properties are per the following:
Minimum tensile strength: 70,000 psi or 482 N/mm^2
Minimum yield strength: 40,000 psi or 276 N/mm^2
Minimum elongation %: 23%
