The flexitank is a new type of soft packaging container which can store and transport all kinds of non dangerous liquid goods.
The container mainly adopts multi-layer structure, which is composed of outer layer PP woven cloth and inner layer PE film. Its volume is generally 14-25 cubic meters, and can store and transport 24000 liters of liquid at a time.
It can be placed in a 20 foot or 40 foot container, or in a high rail trailer hanging bucket for door-to-door transportation. It is suitable for sea and land transportation.
Compared with traditional liquid containers such as cans and barrels, it can greatly reduce the cost of packaging, handling and logistics.
One-way disposable, hygienic & eco-friendly.Single-trip use eliminates cross-contamination risk — ideal for food logistics.PP material recyclable after use; no tank cleaning, no return freight.
Specification
Product Name | Container Flexitank |
Size | 1.7*2.35*5.8m(20" container) 2.1*2.4*11.8m(40" container) |
Material | Multi-layer PE + PP |
Fabric | Multi layer composite material: Food grade PE inner film, barrier anti seepage layer, high strength PP woven outer layer |
Capacity | 14000 liters to 24000 liters |
Valve | 3 Inch Ball Valve |
Application | Edible oil, wine, fruit juice, non-hazardous chemicals packaging and transportation |
Color | White,Customized |
Container Fit | Standard 20ft dry container (also 40ft on request) |
Temperature | -20°C to +60°C |

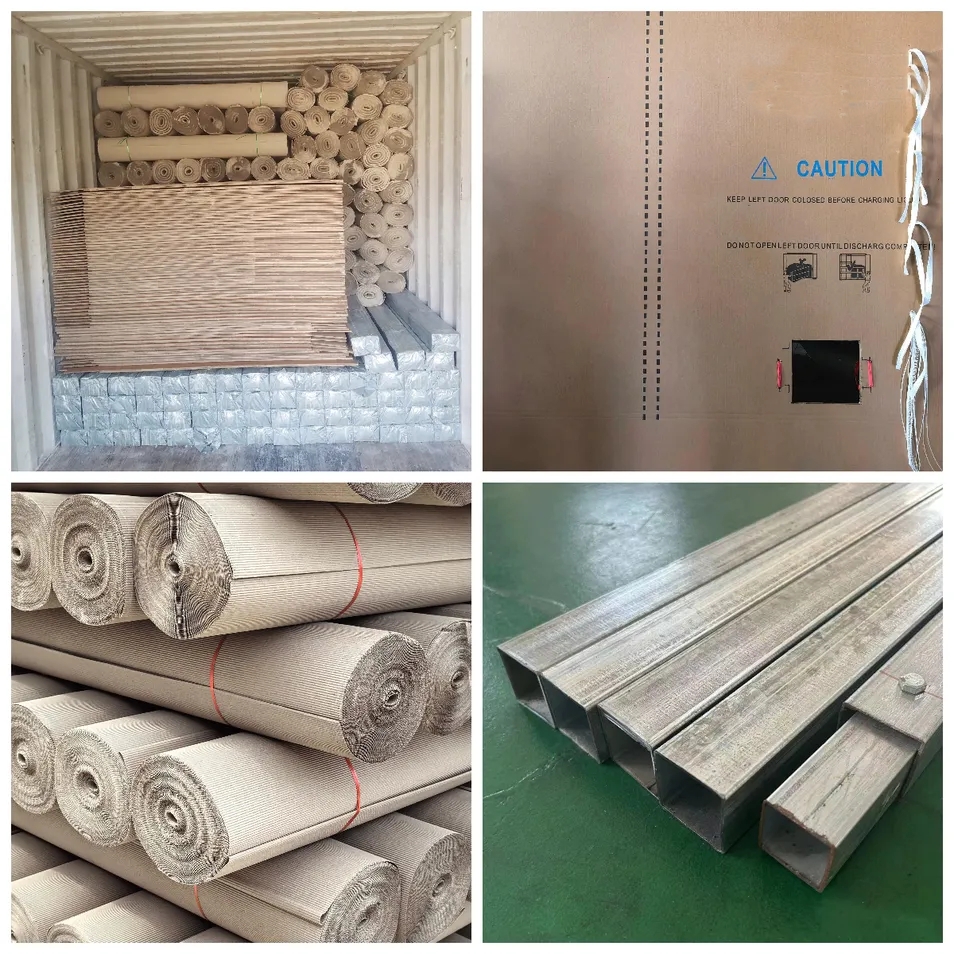

Accessories | Steel pipe 6pcs, Baffle 1pc, Alarm Mark 1pc, Corrugated paper 28m, Paper-board 1pc, Adhesive tape 1pc |

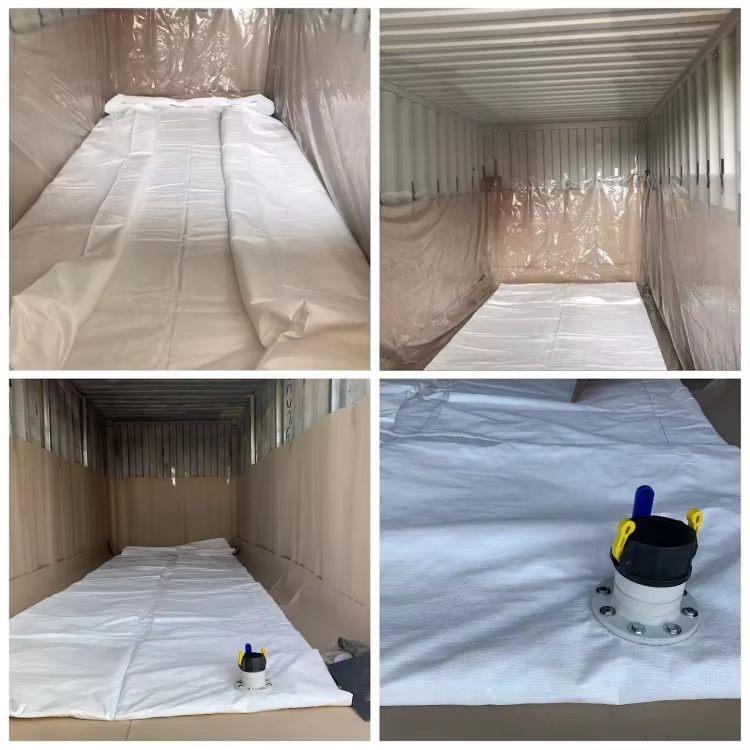

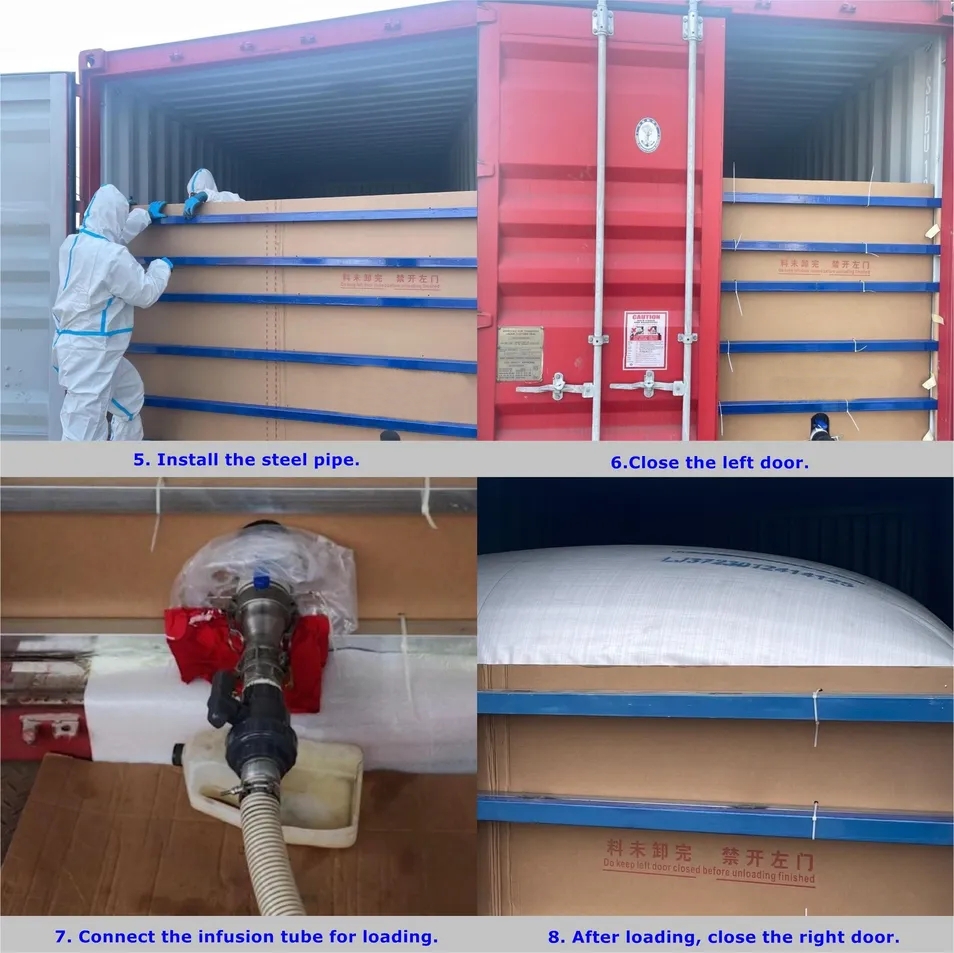

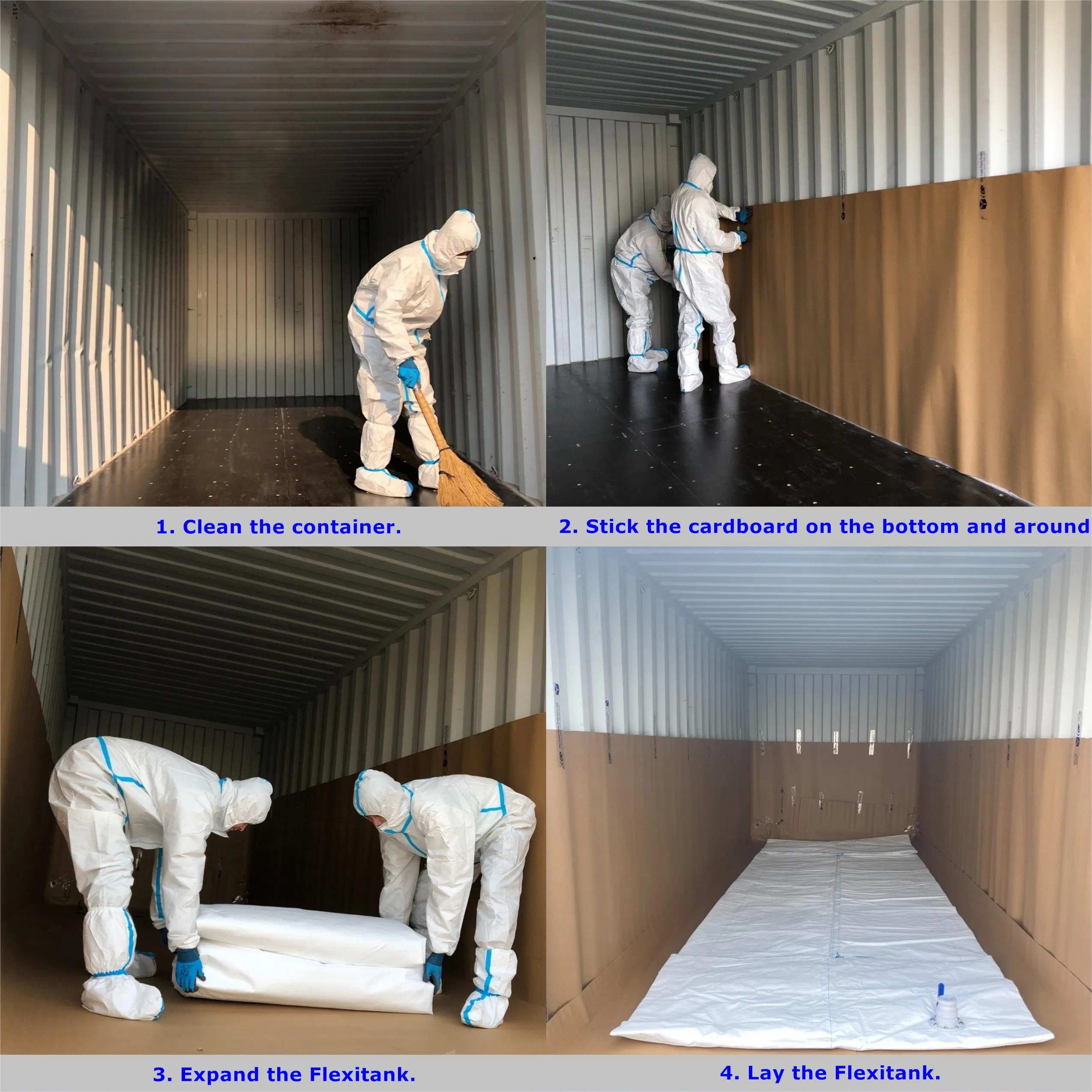

Installation Procedure

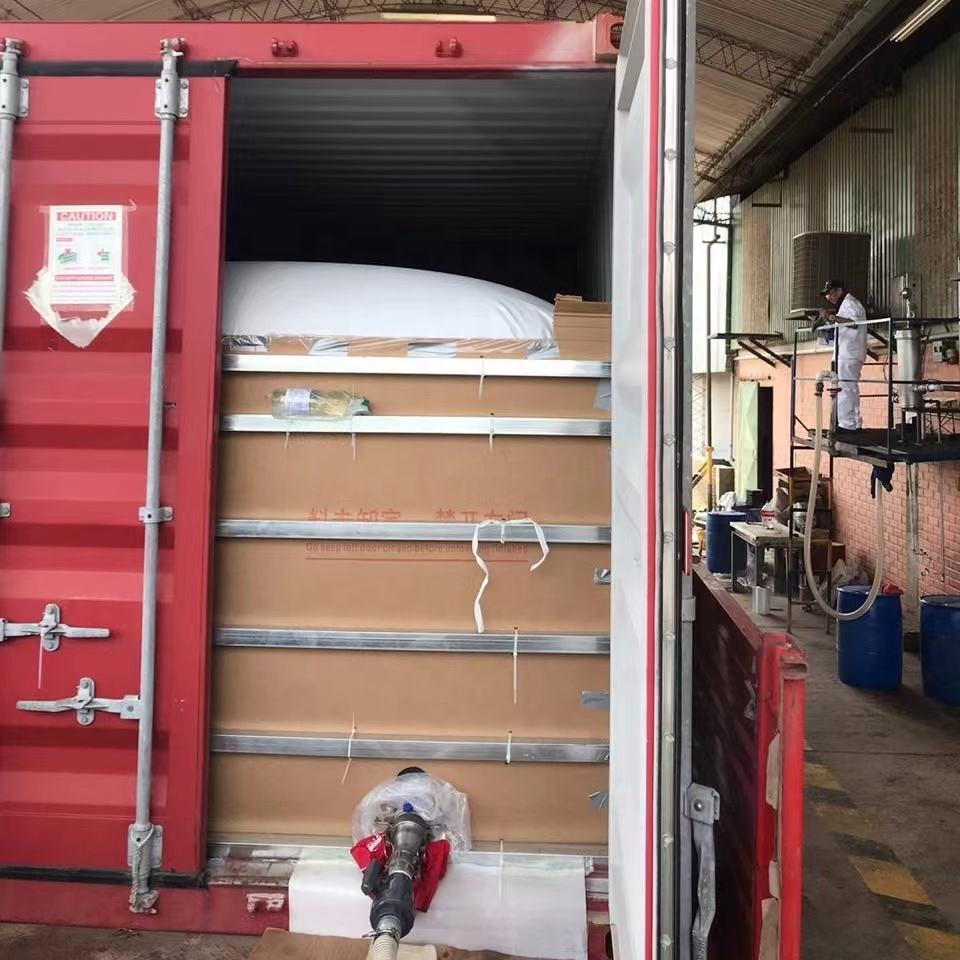

Application
The Container Flexitank is an innovative liquid storage and transportation solution, designed for safe, efficient, and cost-effective bulk liquid shipping. Ideal for industries such as chemicals, food, pharmaceuticals, oil, and lubricants, it optimizes container space utilization while reducing logistics costs.

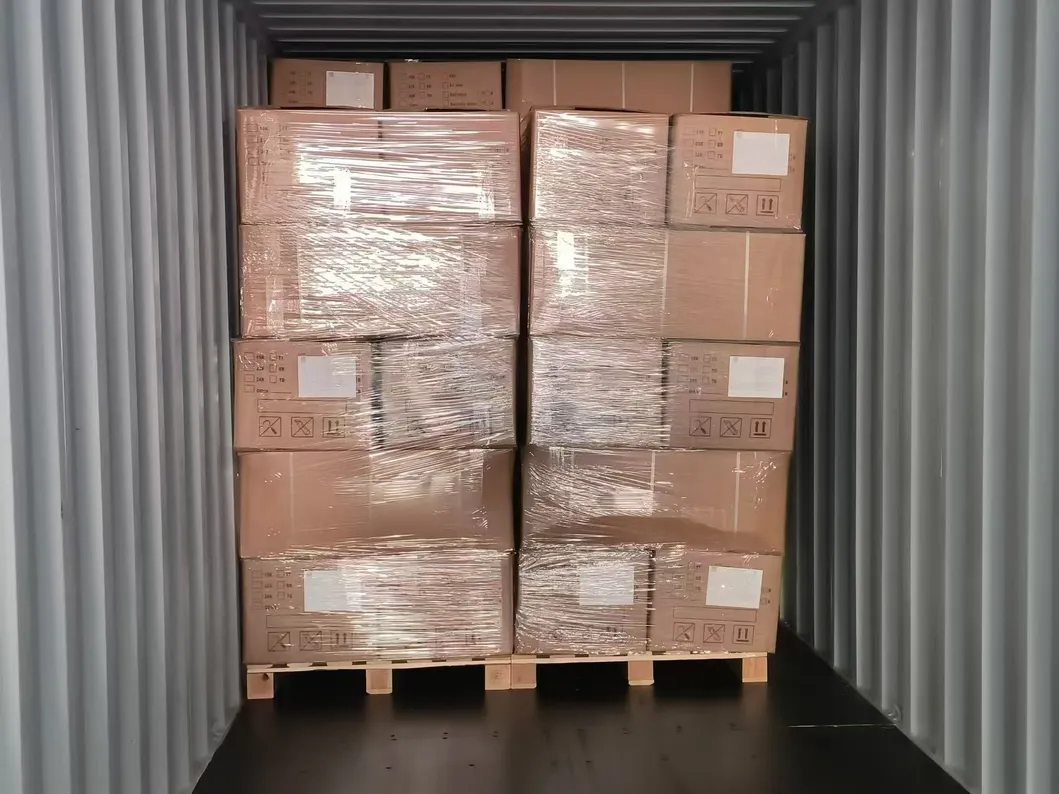

Packaging & Shipping
Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
Company Advantages
We are proud to have a professional and experienced independent R&D team dedicated to product innovation. Our engineers specialize in structural design, material optimization, and new product development.With strong R&D capabilities, we offer OEM/ODM customization services to meet your specific requirements. Whether you need modified sizes, special materials, custom surface treatments, or entirely new structures, our team can provide comprehensive technical support from design to mass production.
Choose us for reliable quality, technical expertise, and the flexibility to create exactly what you need.
Exhibition
FAQ
Q1: Is the flexitank reusable?
A: The standard version is single use to avoid cross contamination of residual liquid. We supply heavy duty reinforced flexitanks for repeated usage on request.
Q2:Which size of shipping container does the flexitank fit?
A:The mainstream model suits standard 20 foot dry cargo container. 40ft customized flexitank is optional.
Q3: What liquids can be transported?
A: All non-hazardous liquids: edible oils (palm, soybean, sunflower, olive), wine, fruit juices, concentrates, latex, water, UCO/UVO, biodiesel and non-hazardous chemicals. Hazardous/regulated liquids are not suitable.
Q4: Do I need a special shipping container?
A: A regular 20 foot dry cargo container works perfectly, no container reconstruction needed.
Q5:What temperature range can it withstand?
A:Standard products suit -20°C to +60°C filling/transport conditions.

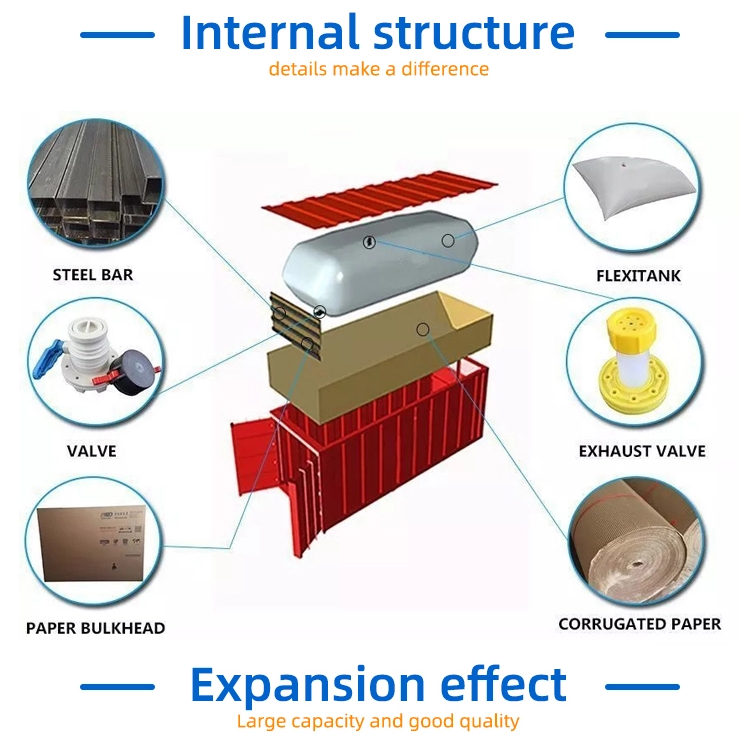

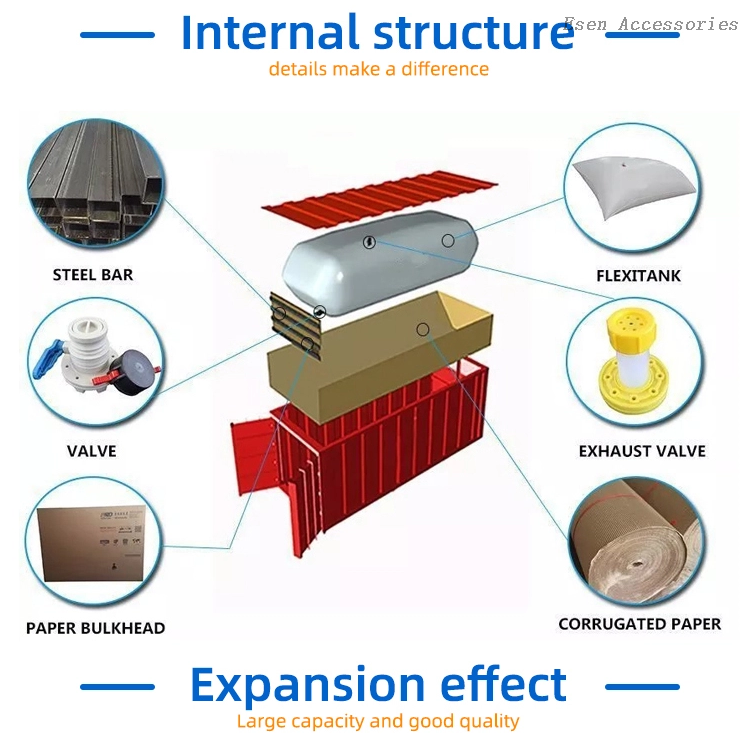

Q6:What is the structure and raw material of the liquid flexitank?
A: Multi layer composite structure, food grade PE inner film, penetration resistant barrier layer, high strength PP woven outer abrasion proof layer.
Q7:What is included in the complete set?
A:Bag + wooden bulkhead + metal support bars + discharge valve + door bumpers + warning labels + installation accessories.
