Hydraulic Dock Leveler Yard Ramp Warehouse Mobile Container Truck Loading Dock Ramps

Hydraulic Dock Leveler Yard Ramp Warehouse Mobile Container Truck Loading Dock Ramps

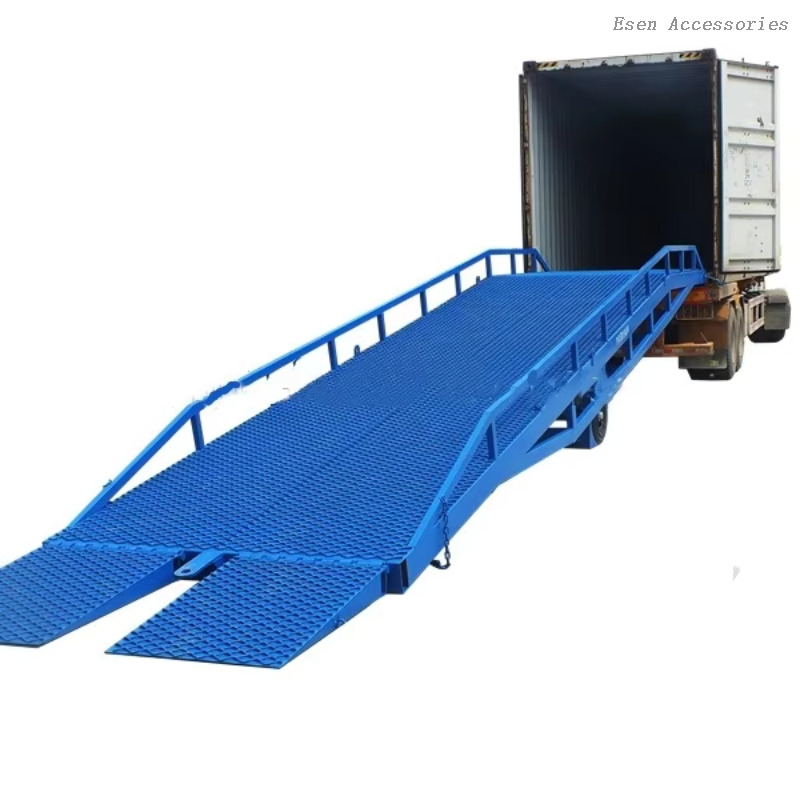

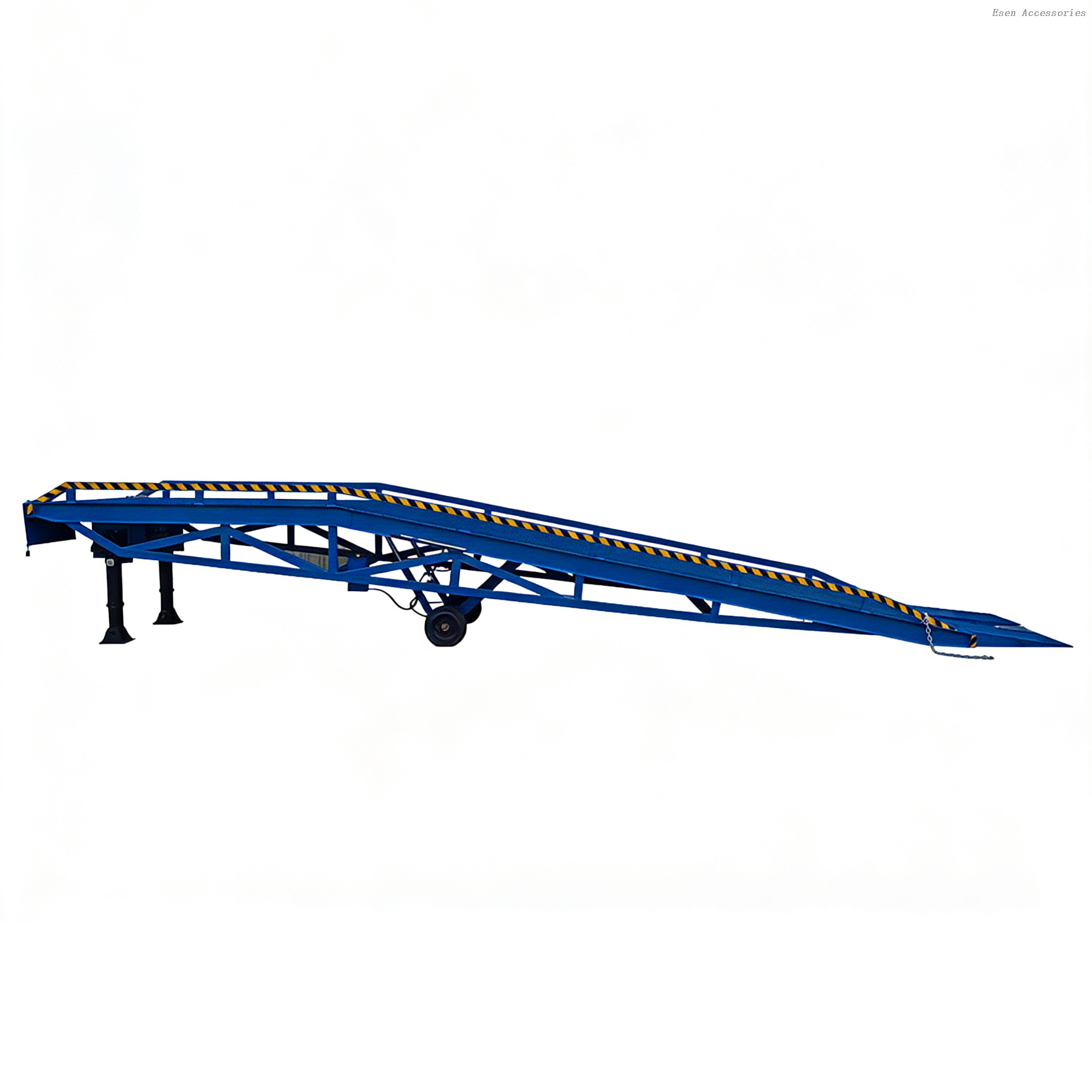

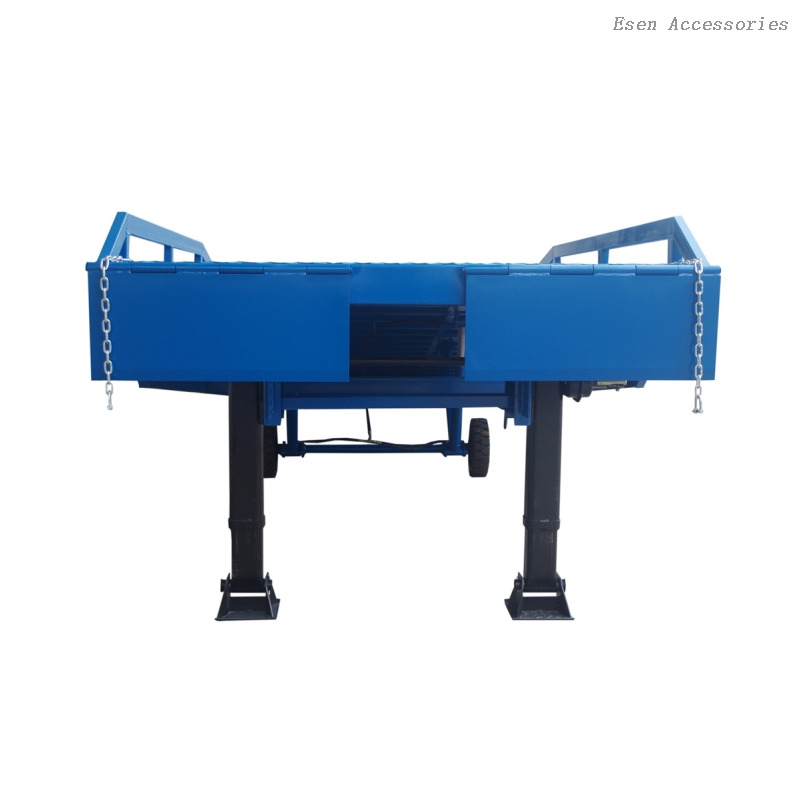

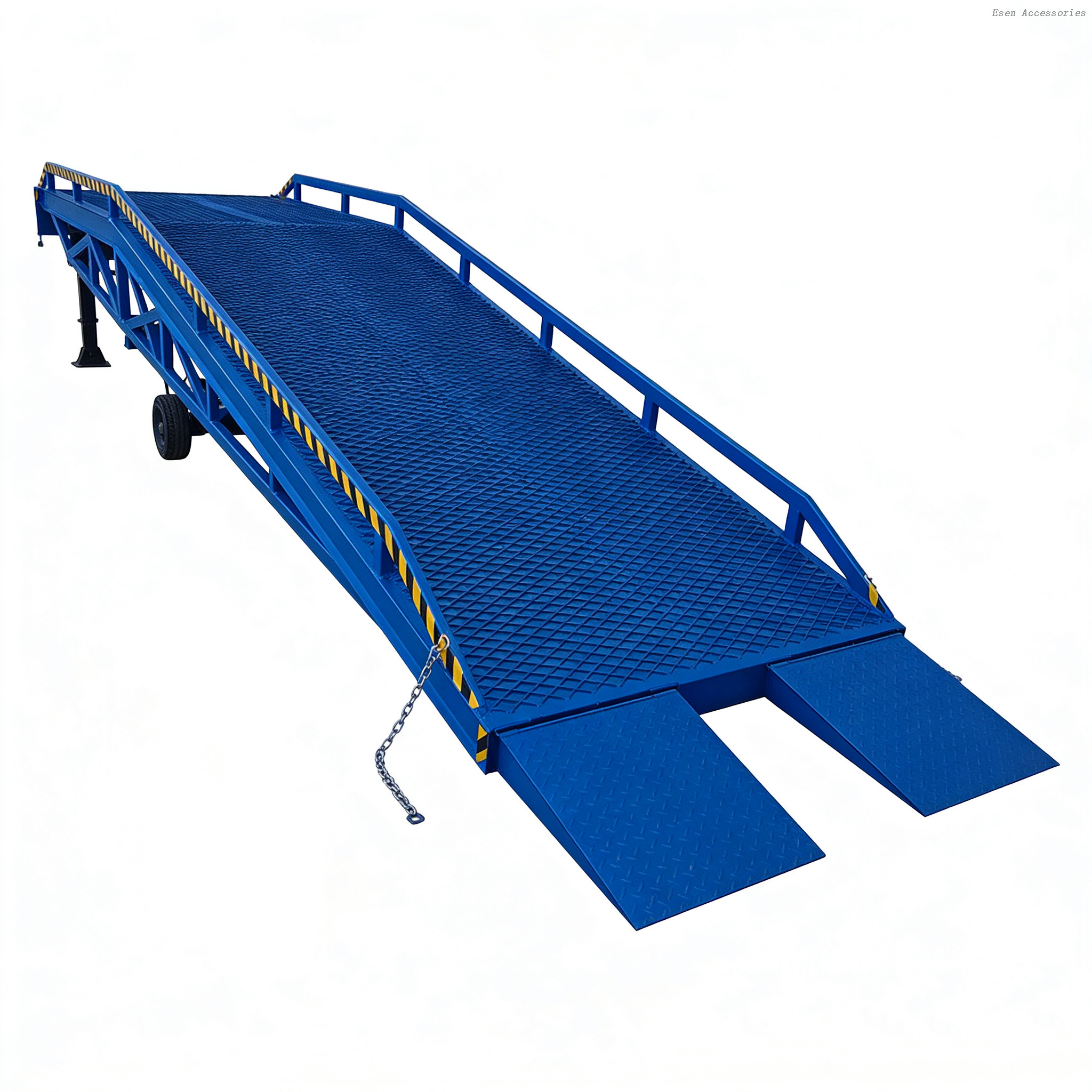

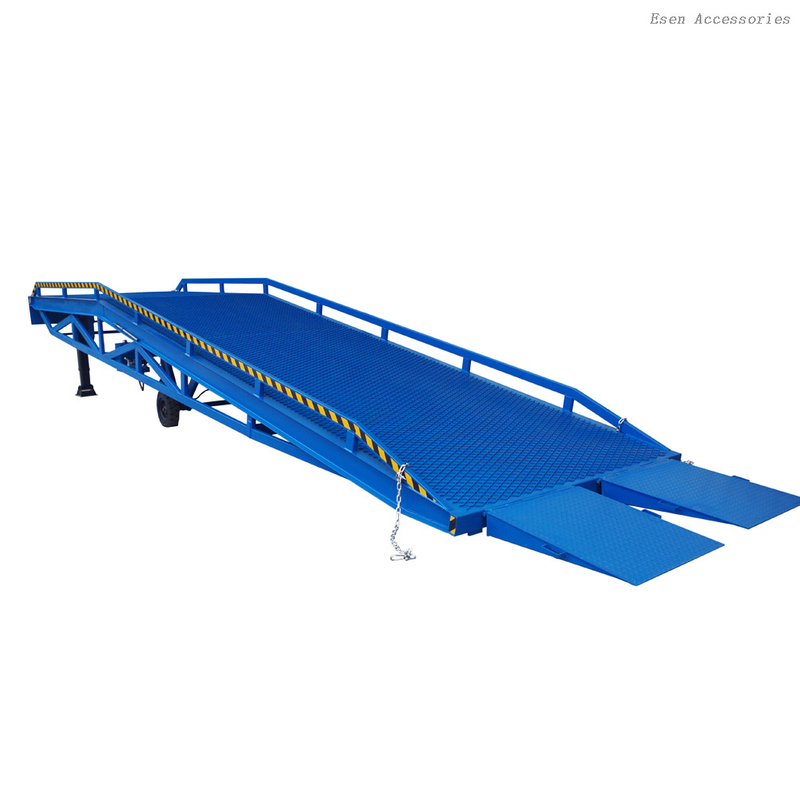

Hydraulic forklift yard ramps are raised and lowered manually via the support legs to align with truck or dock heights.

Quantity:
Availability:





Inquire Add to Basket PDF Export

Product Description

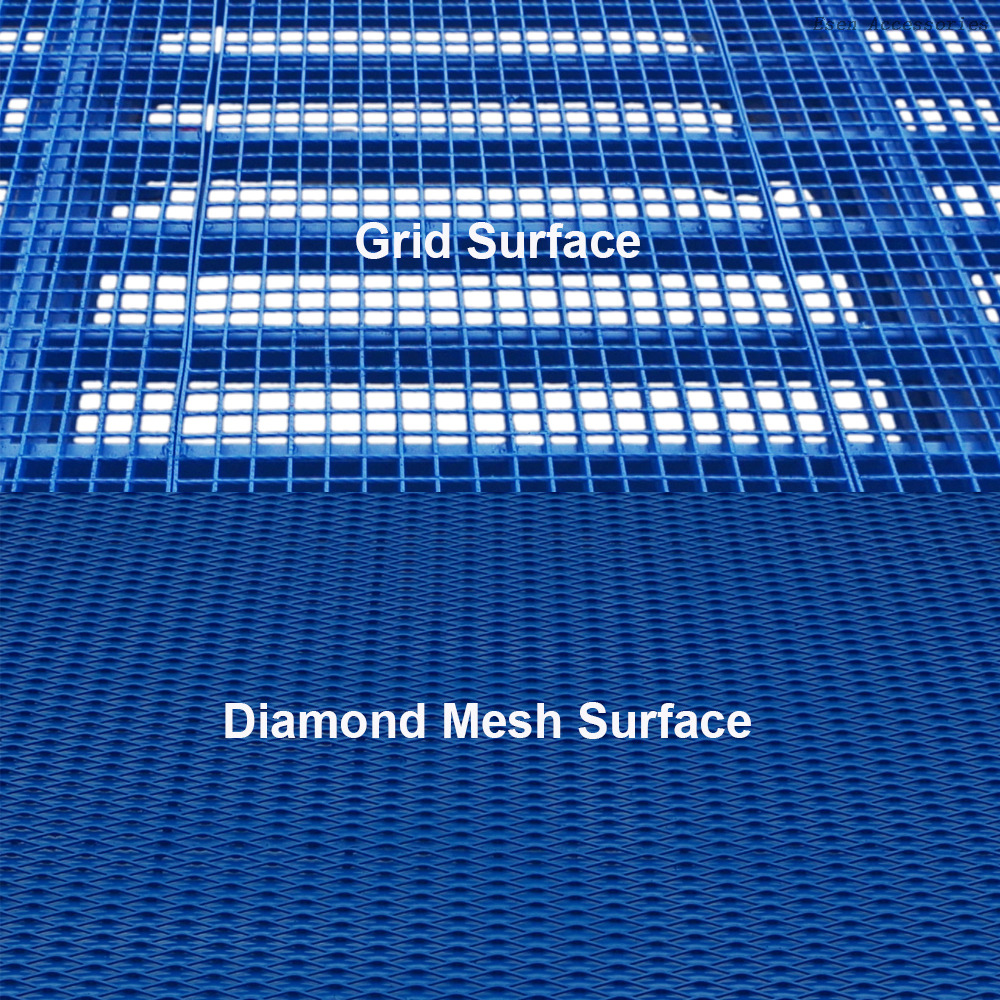

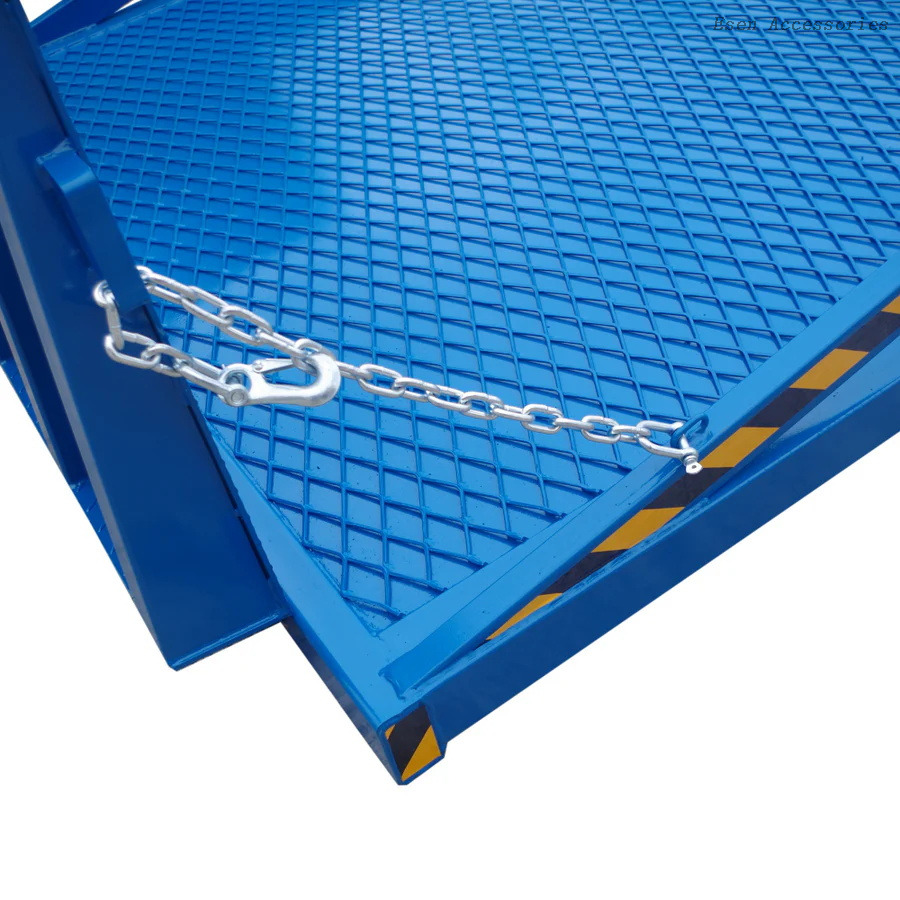

Non-slip Platform：The ramp platform with full paved anti skid platform. It can ensure the forklift walk very safely on the ramp body.

Solid Tyre：Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.

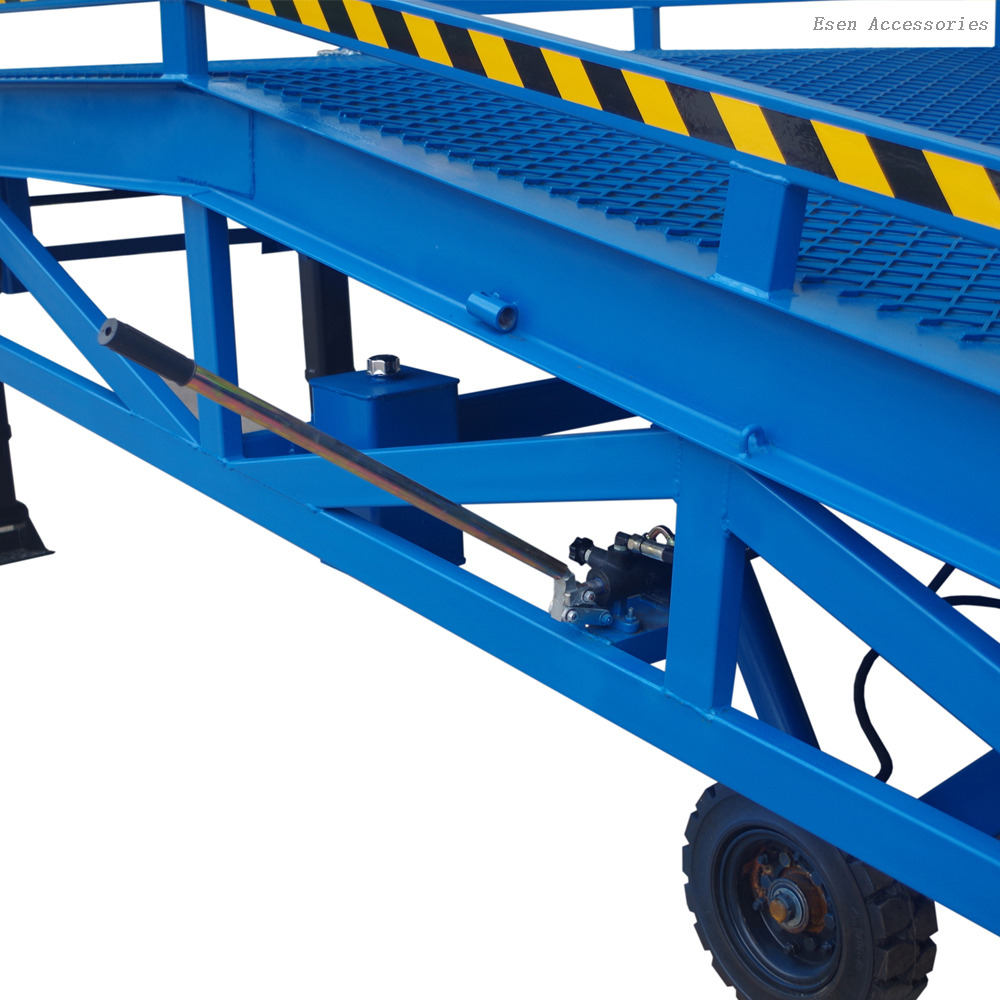

Manual Hydraulic Elevator System：It's equipped with handle hydraulic device adjusting the working height directly ,which don't need electricity.

Advantage：

We can supply 8-16T yard ramp.

Hand rails are optional.

Fork pockets boths side make it easier to move the yard ramp by forklift.

Each yard ramp has lifting eye for loading and transportation.

Bumpers ahead can protect both truck or ramps.

Detailed Specifications

Product Name	Mobile Yard Ramp
Material	Steel
Capacity	8Ton,10ton,12Ton,16Ton
Length	Standard: 10000mm Long: 13000mm
Width	2200mm
Size(Platform+Ramp )	Standard:3000mm+7000mmx2200mmx1200 -1680mm Long:3000mm+9000mmx2200mmx1200-1680mm
Working Height	Adjustable 1200mm - 1680mm
Weight	2930-3966kg
Color	Blue or Customized
Lift Drive / Actuation	Hydraulic

Size

Model	Capacity(ton)	Weight(kg)	Length(mm)	Dimensions (Platform+Ramp LWH )(mm)
8T-1	8	2930	10000	3000+7000x2200x1200 -1680
8T-2	8	3150	10000	3000+7000x2200x1200 -1680
8T-3	8	3090	13000	3000+9000x2200x1200 -1680
8T-4	8	3346	13000	3000+9000x2200x1200 -1680
10T-1	10	2970	10000	3000+7000x2200x1200 -1680
10T-2	10	3010	10000	3000+7000x2200x1200 -1680
10T-3	10	3130	13000	3000+9000x2200x1200 -1680
10T-4	10	3386	13000	3000+9000x2200x1200 -1680
12T-1	12	3200	10000	3000+7000x2200x1200 -1680
12T-2	12	3420	10000	3000+7000x2200x1200 -1680
12T-3	12	3200	13000	3000+9000x2200x1200 -1680
12T-4	12	3456	13000	3000+9000x2200x1200 -1680
16T-1	16	3300	10000	3000+7000x2200x1200 -1680
16T-2	16	3520	10000	3000+7000x2200x1200 -1680
16T-3	16	3776	13000	3000+9000x2200x1200 -1680
16T-4	16	3966	13000	3000+9000x2200x1200 -1680

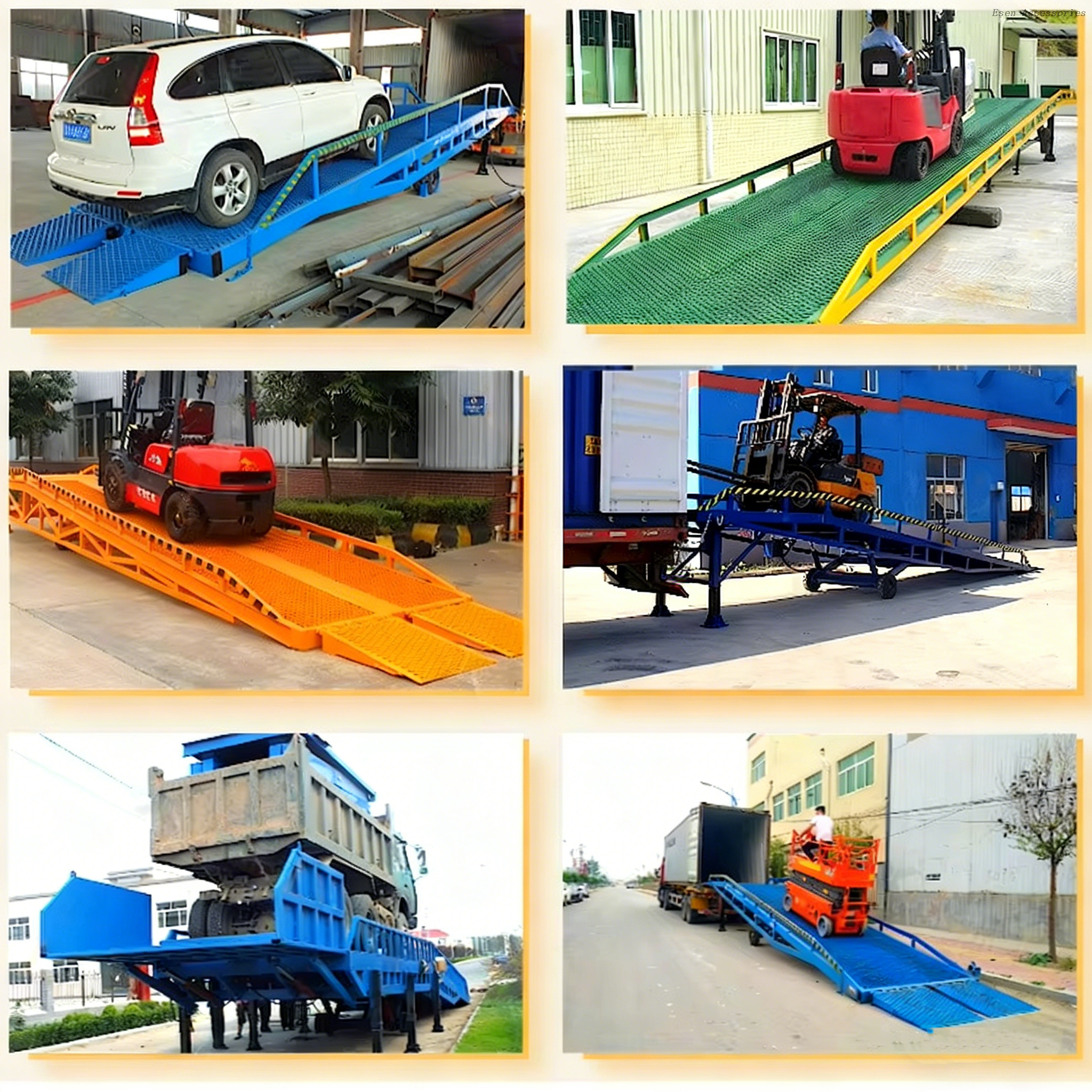

Application

Mobile hydraulic loading container ramp is used in conjunction with the forklift cargo loading and unloading auxiliary equipment, according to the height of the car compartment height adjustment, the forklift can be directly through the equipment into the interior of the cargo bulk cargo handling, only single operation, you can To achieve rapid loading and unloading of goods. It allows enterprises to reduce a lot of labor, improve work efficiency, access to greater economic benefits.

应用1

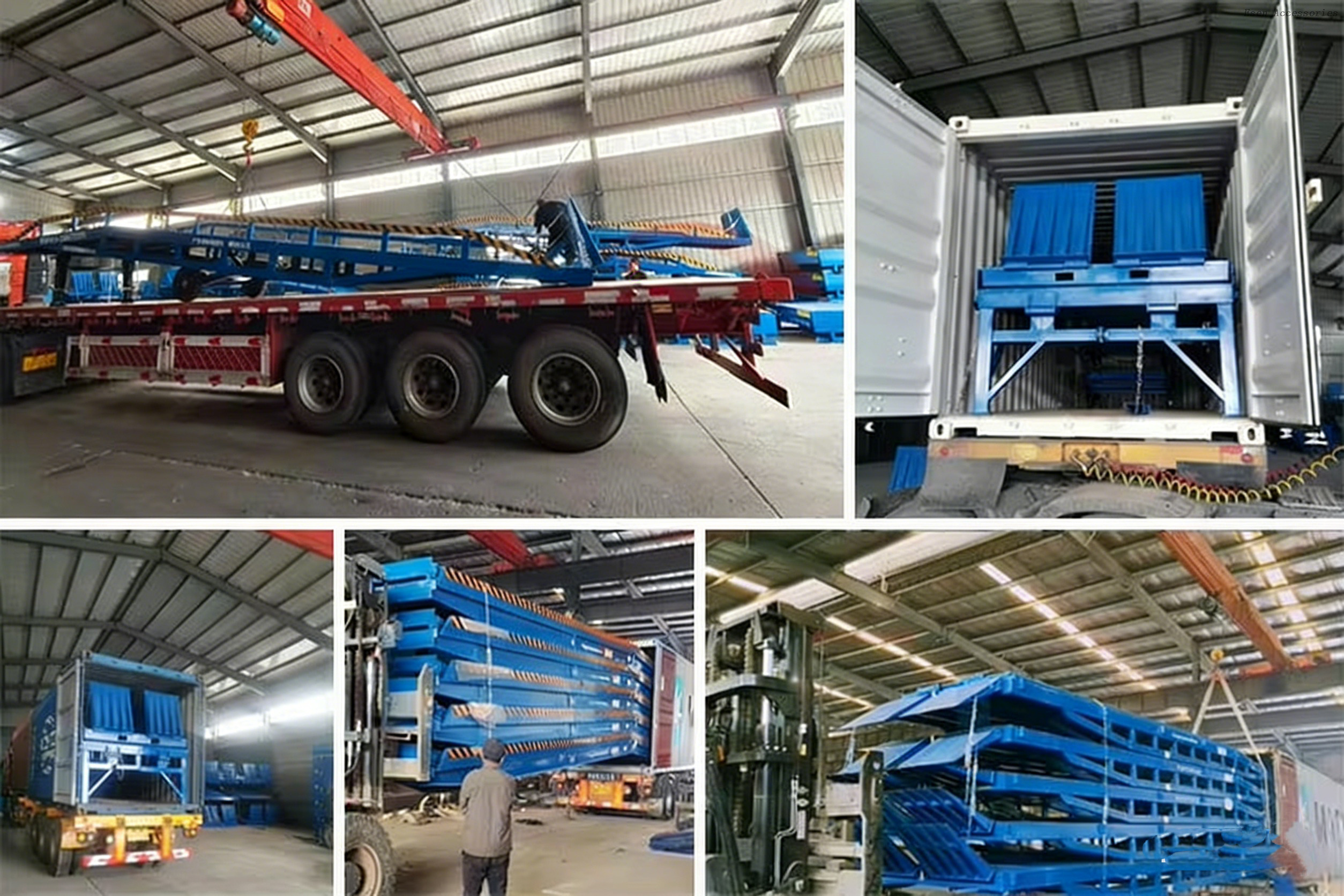

Packaging & Shipping

1:Packing in to box.Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.All the steps made carefully and test by engineers.
2:We could supply allkinds of container spare parts, and also accept Mix Order loaded into one container for shipping.

Our Advantage

We are proud to have a professional and experienced independent R&D team dedicated to product innovation. Our engineers specialize in structural design, material optimization, and new product development.With strong R&D capabilities, we offer OEM/ODM customization services to meet your specific requirements. Whether you need modified sizes, special materials, custom surface treatments, or entirely new structures, our team can provide comprehensive technical support from design to mass production.

Choose us for reliable quality, technical expertise, and the flexibility to create exactly what you need.
