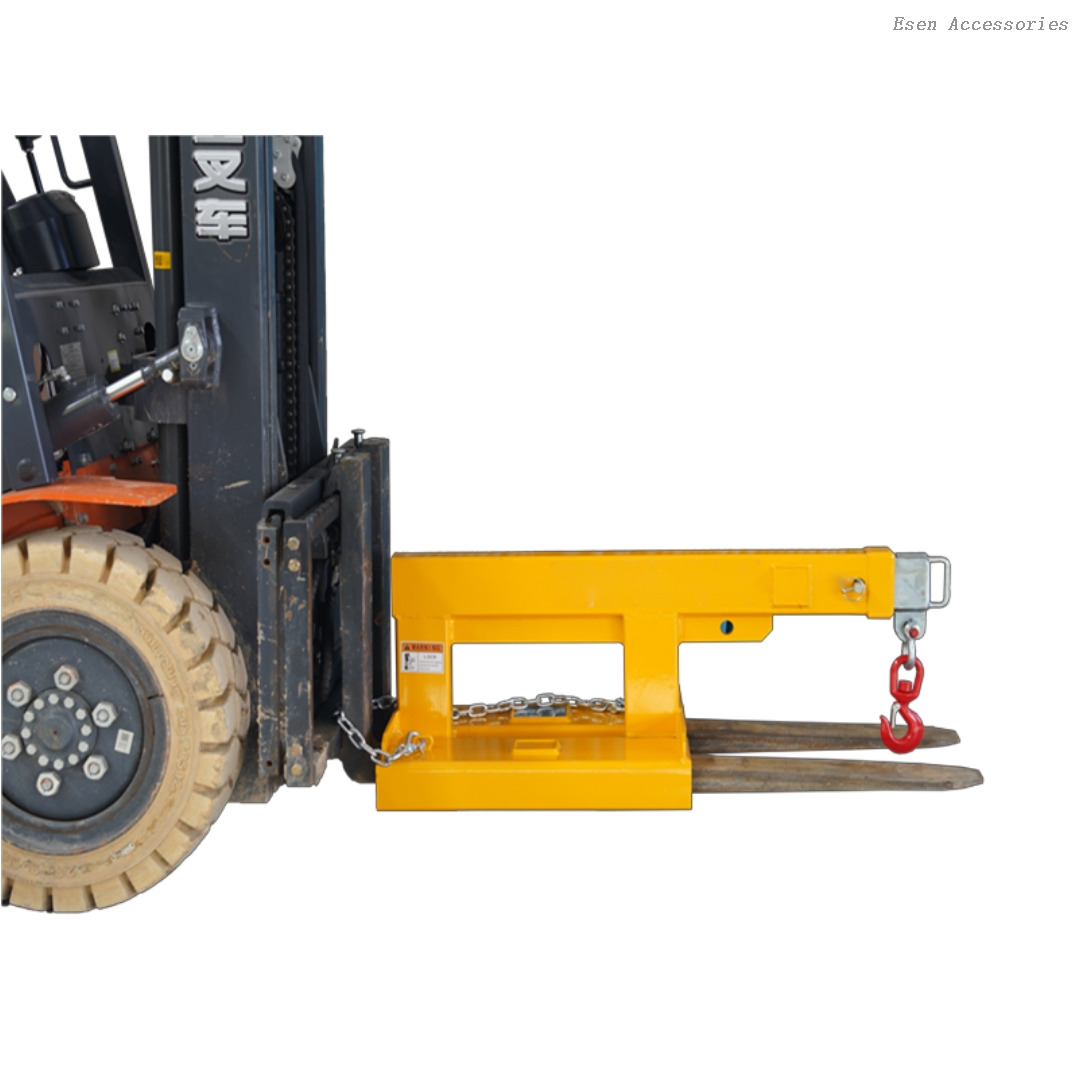

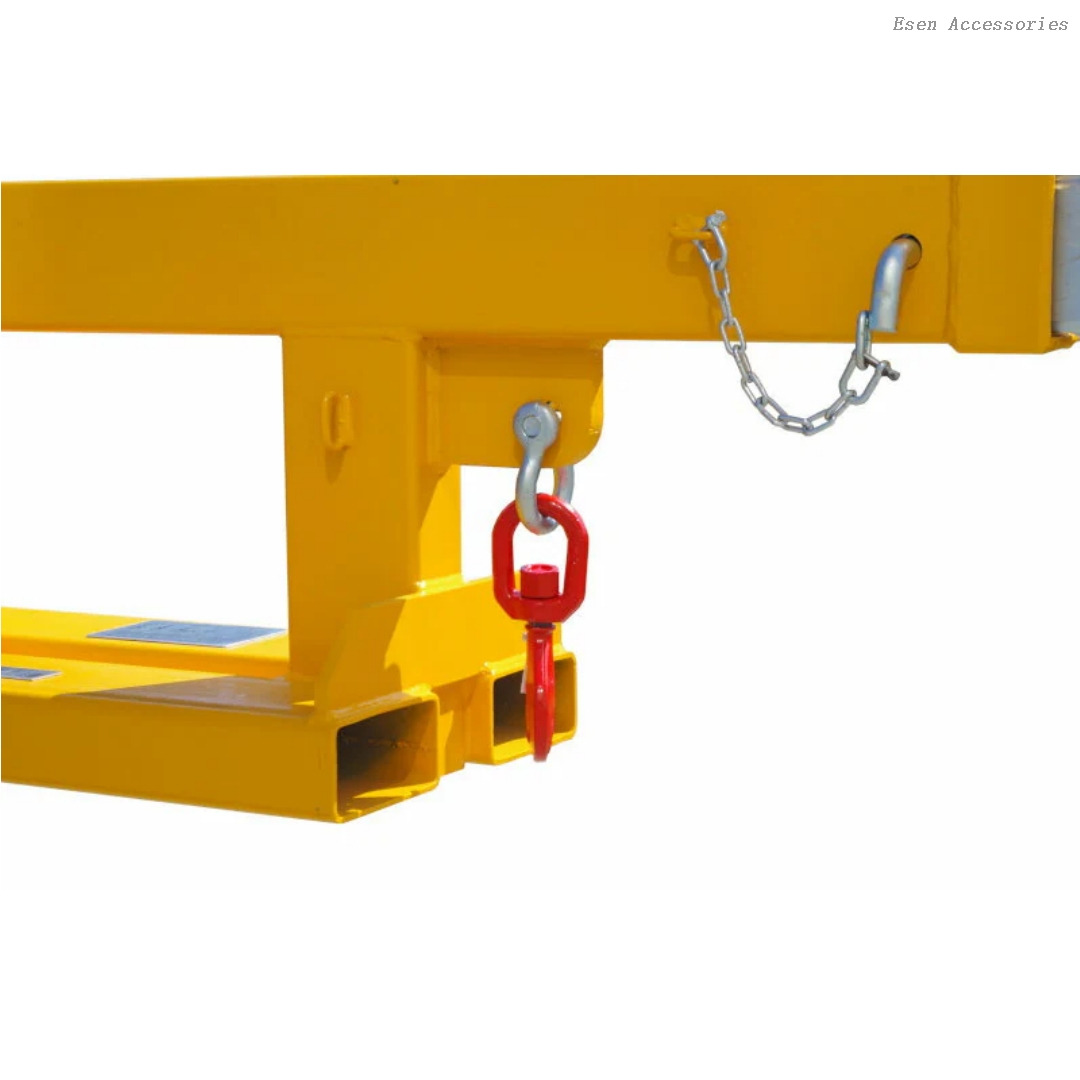

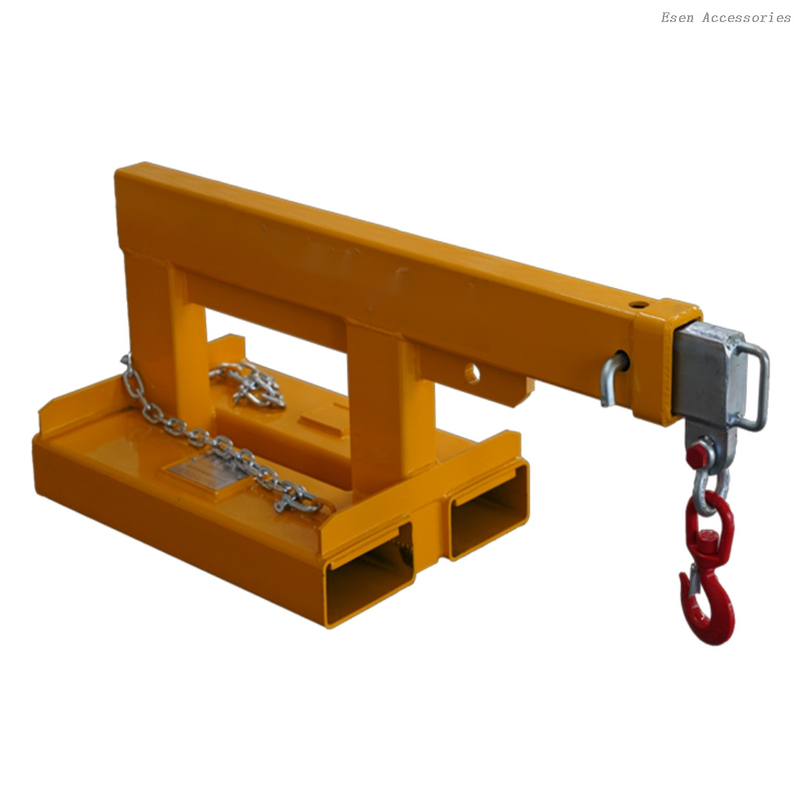

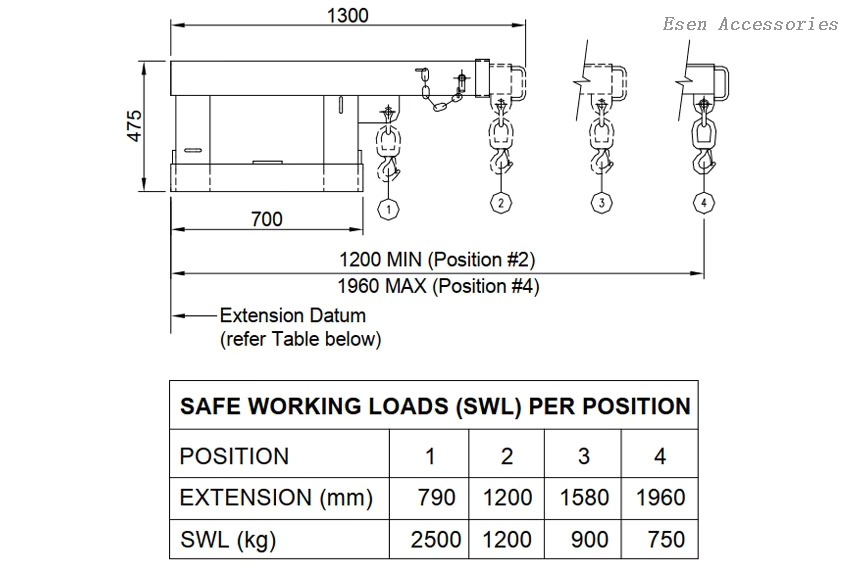

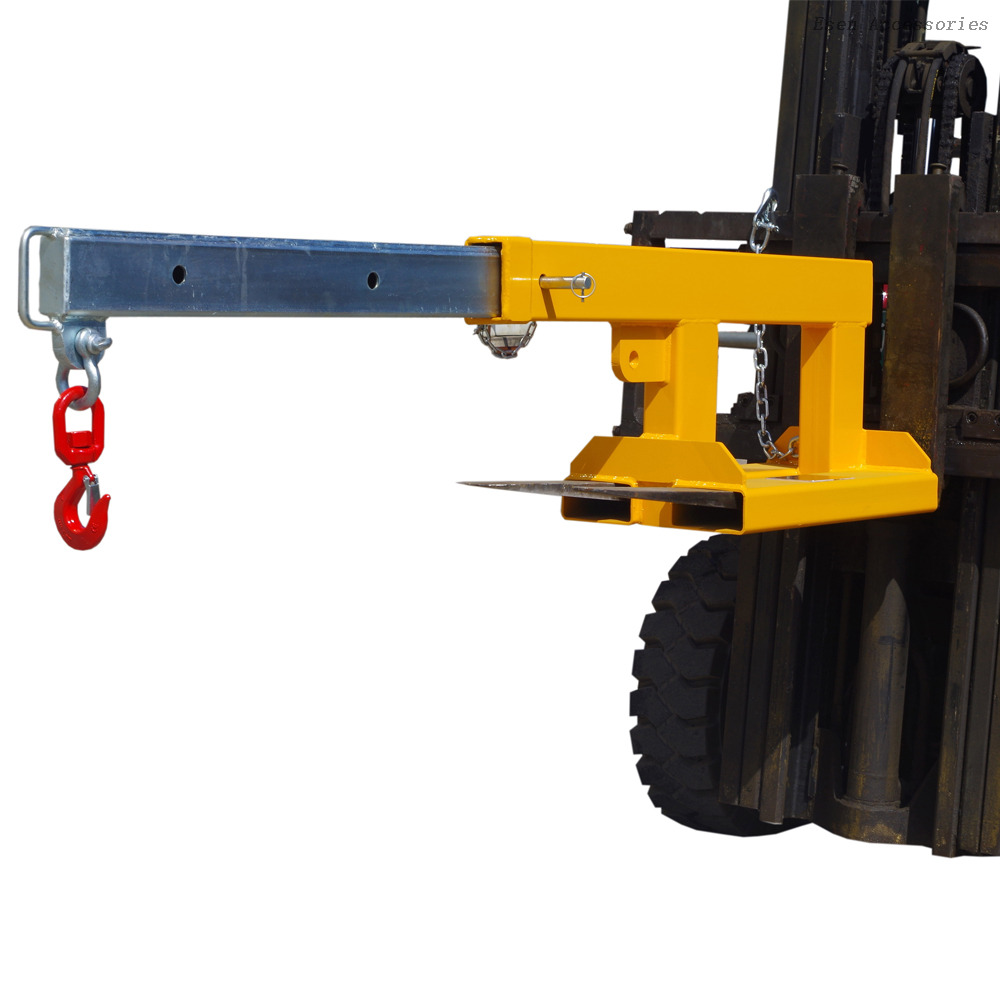

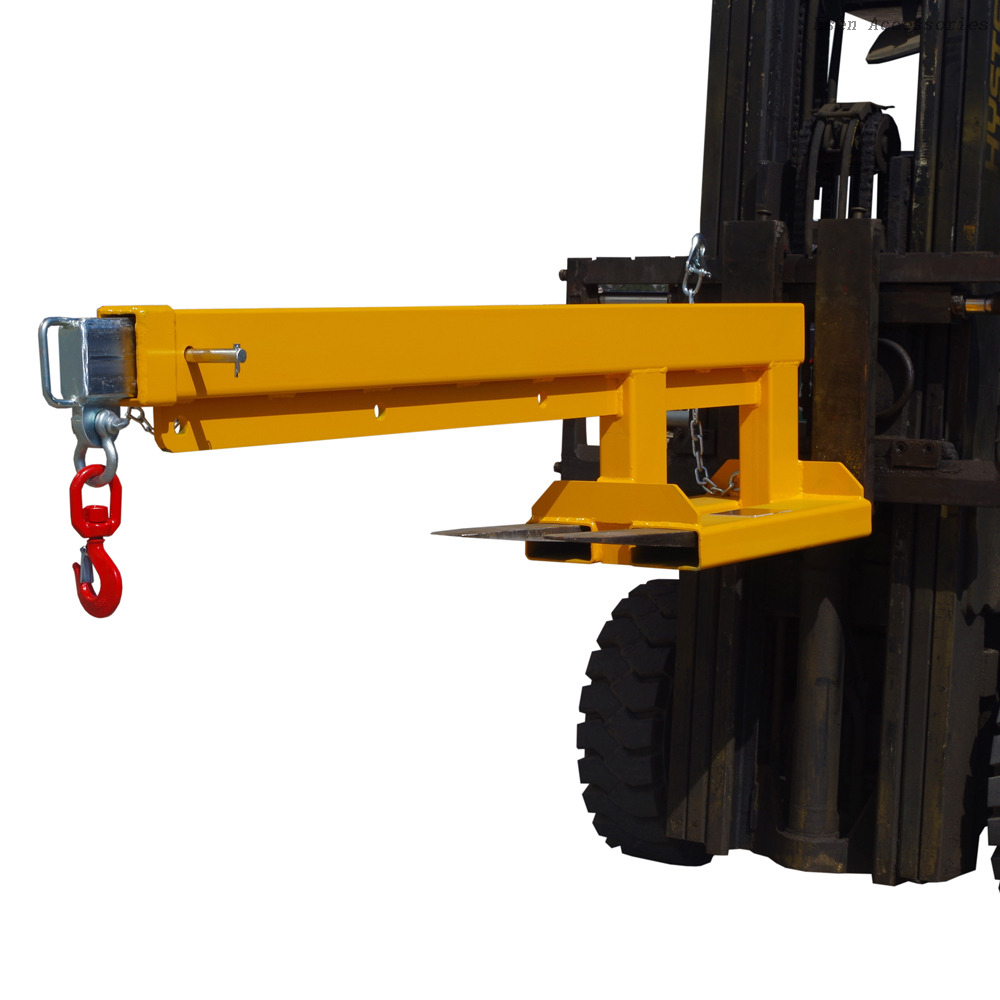

The Fixed Jib (Short) is designed as an affordable general-purpose Jib able to manoeuvre in confined spaces, with a 1.96-metre reach when fully extended. This slip-on Forklift attachment is held to the Forklift by a safety chain. The forklift jibs overall length when closed is 1.3 metres.

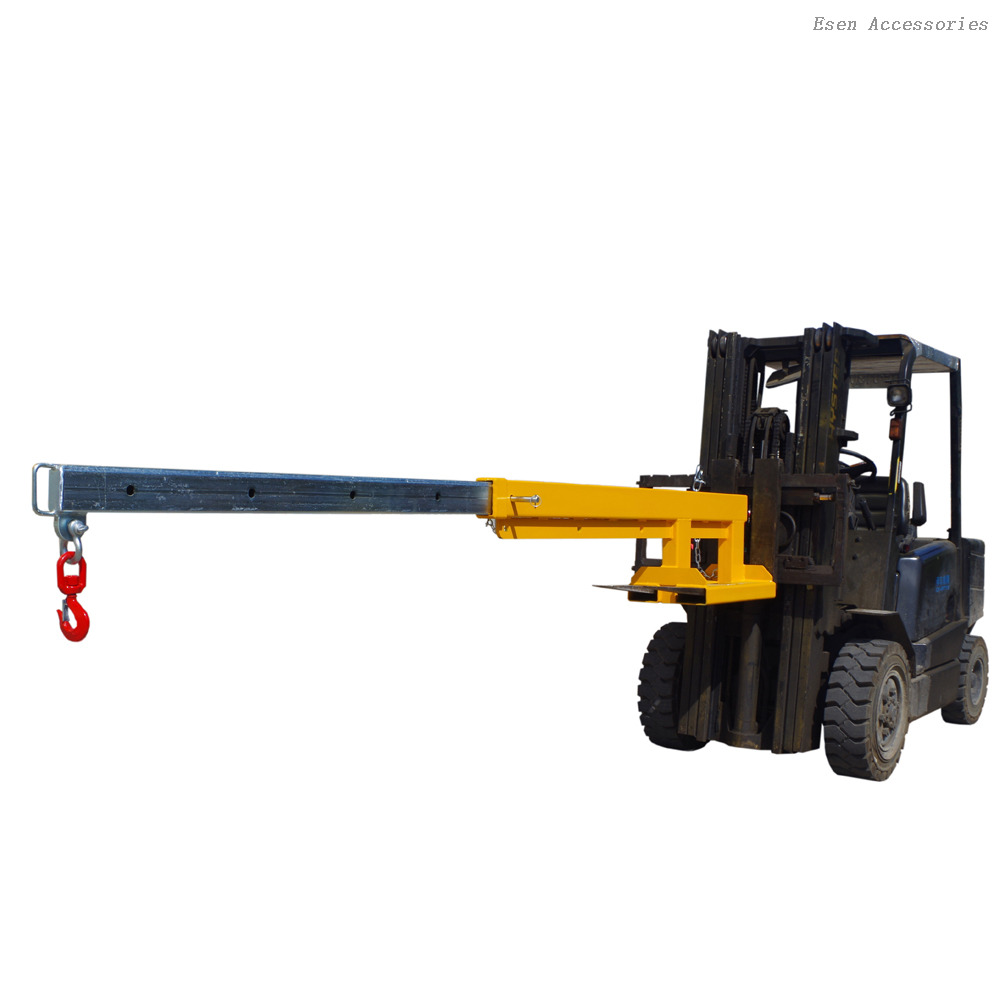

The Fixed Jib (Long) is designed as an affordable general purpose Jib with a 3.5 metre reach when fully extended. This slip-on Forklift attachment is held to the Forklift by a safety chain. The forklift jibs overall length when closed is 2.1 metres.
Specification
| Short Forklift Jib | Long Forklift Jib | |
| Material | Steel | Steel |
| Finish | Galvanized or Painted | Galvanized or Painted |
| Safe Working Load(SWL) | 2500kg | 2500kg |
| Fork Pocket Size | 140x65mm | 140x65mm |
| Fork Pocket Center | 225mm | 225mm |
| Load Center | 790mm | 950mm |
| Horizontal Centre of Gravity | 630mm | 1160mm |
| Vertical Centre of Gravity | 135mm | 185mm |
| Weight | 100kg | 130kg |
| Size | 1300*440*475mm | 2100*440*475mm |
Application

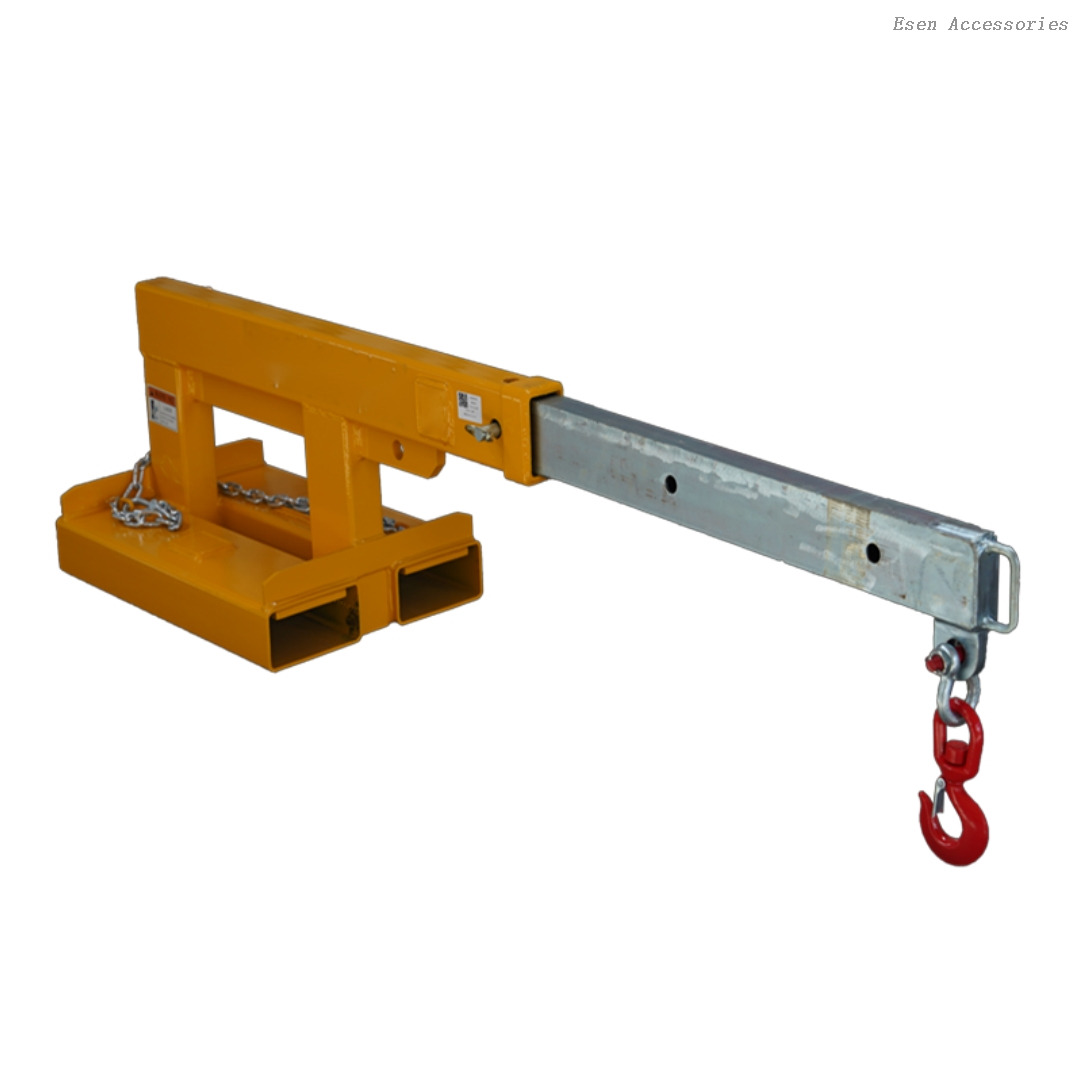

This lifting arm is easy to install and is mainly used in situations where there is a forklift but no crane, and where goods need to be lifted. It is designed as a telescopic arm, allowing for more flexible lifting lengths.
These forklift booms widely used in Industrial for transporting or lifting at Factories, Mines, Installing Machinery, Workshops, Facilities, Automotive, Ship Building Wharves/Docks, Warehouses, Garages & Construction Sites.
Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
Our Advantages
We are proud to have a professional and experienced independent R&D team dedicated to product innovation. Our engineers specialize in structural design, material optimization, and new product development.With strong R&D capabilities, we offer OEM/ODM customization services to meet your specific requirements. Whether you need modified sizes, special materials, custom surface treatments, or entirely new structures, our team can provide comprehensive technical support from design to mass production.
