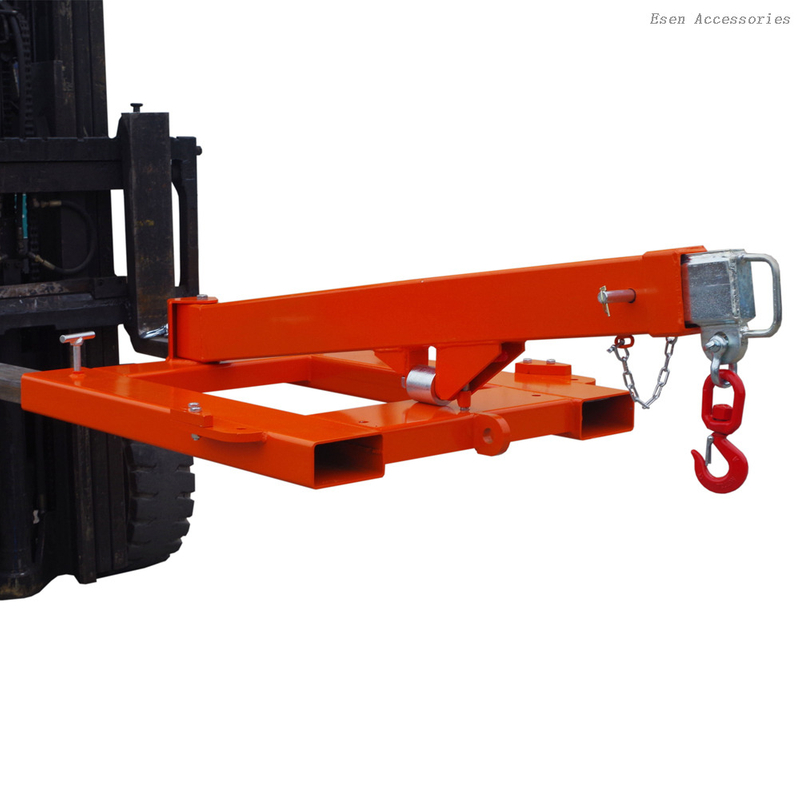

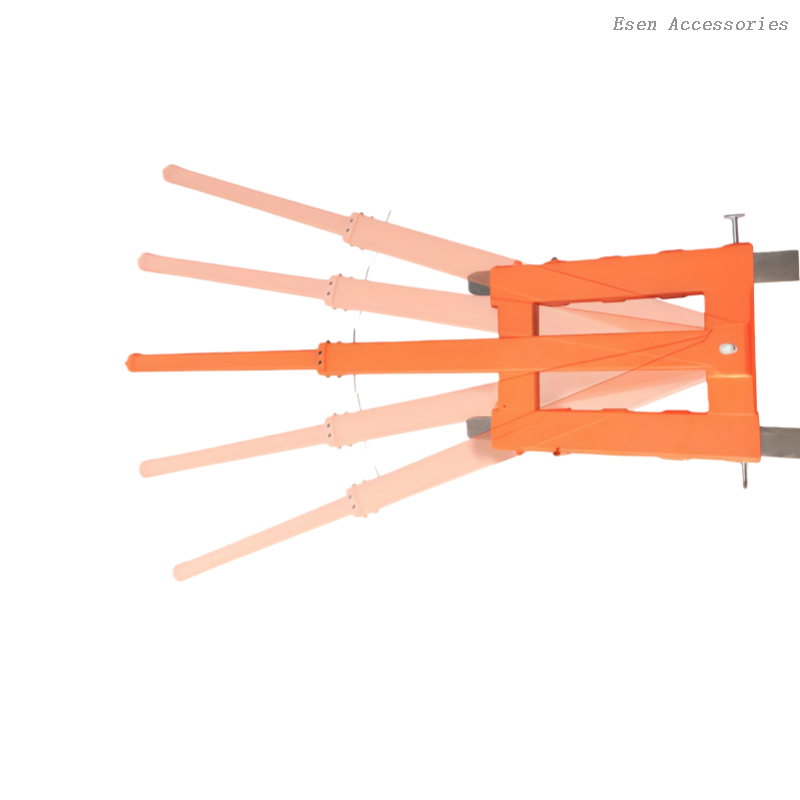

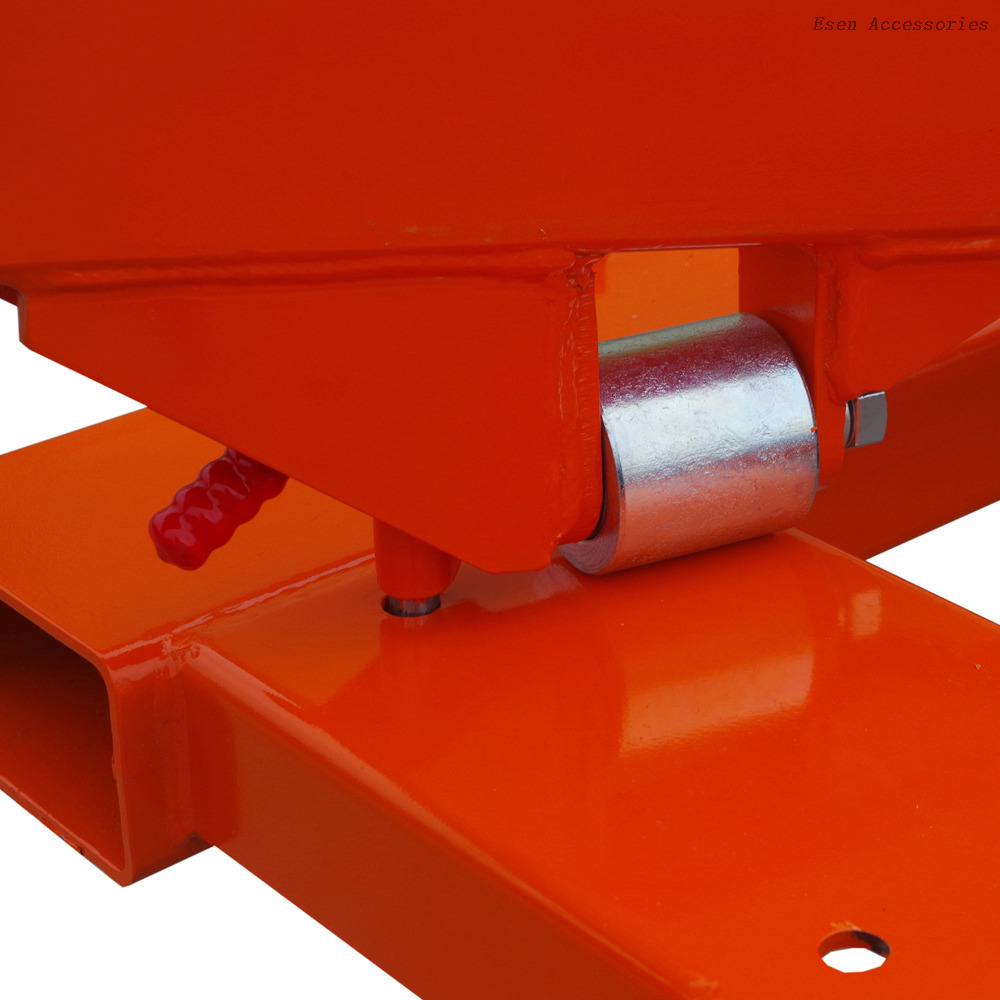

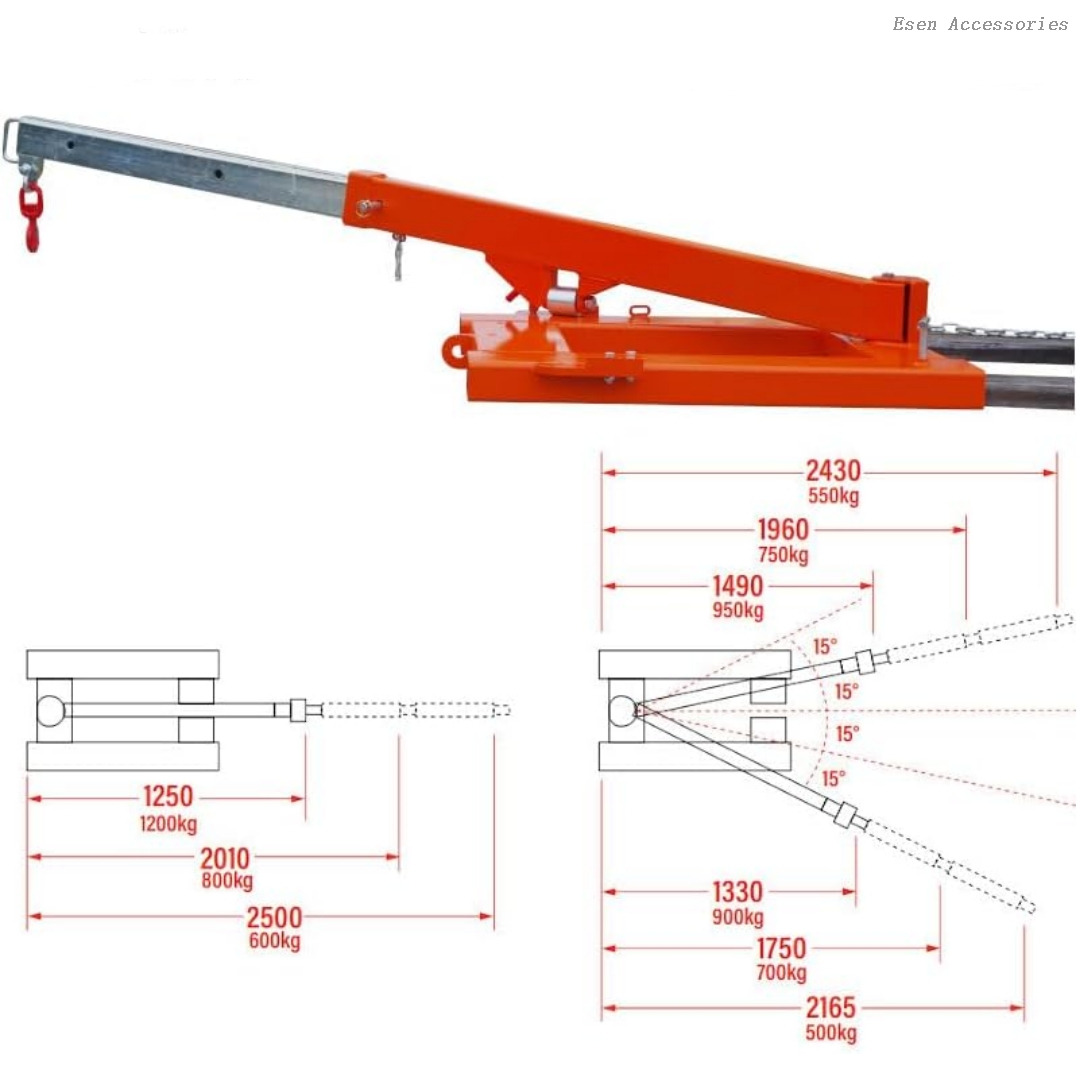

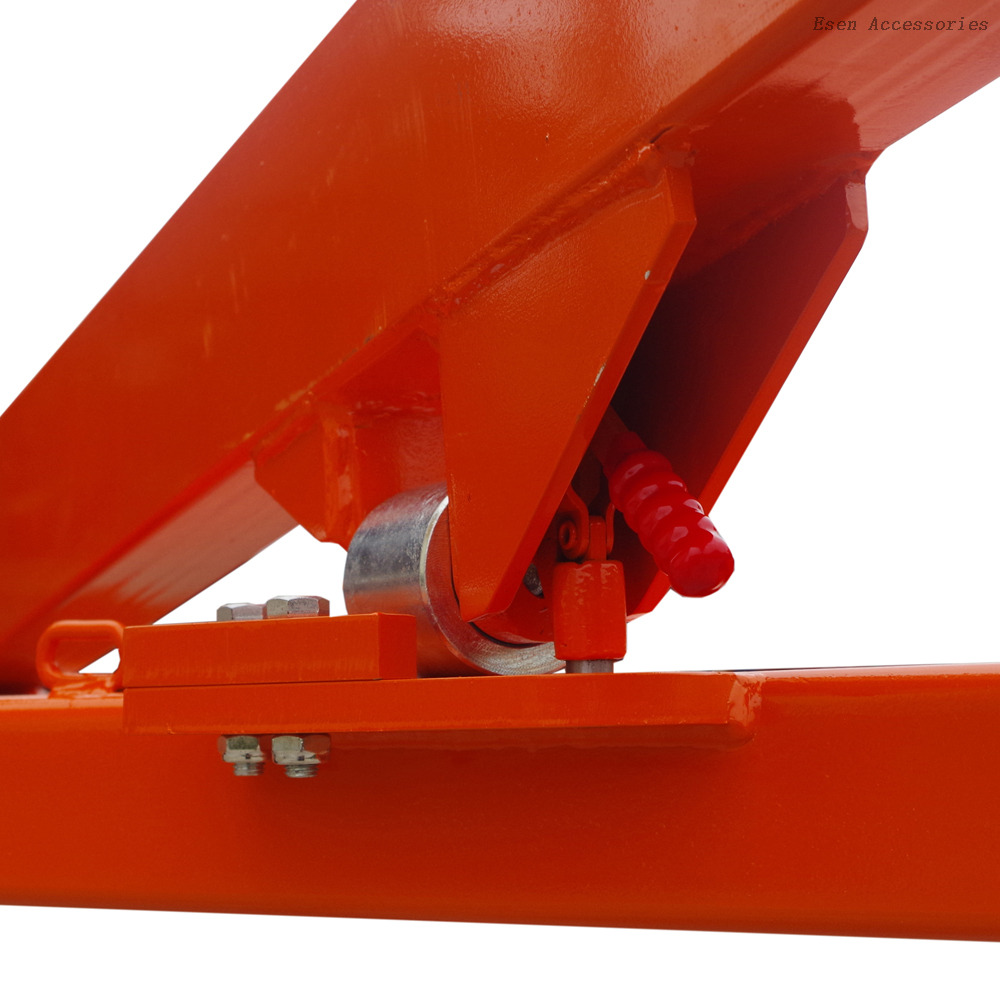

The lifting arm can adjust different rotation Angle in 5 different holes.The boom angle can be adjusted up to 15 degrees left and right and 30 degrees, so it can be used in areas where you cannot normally lift it.The hook is rotatable with a safety latch.

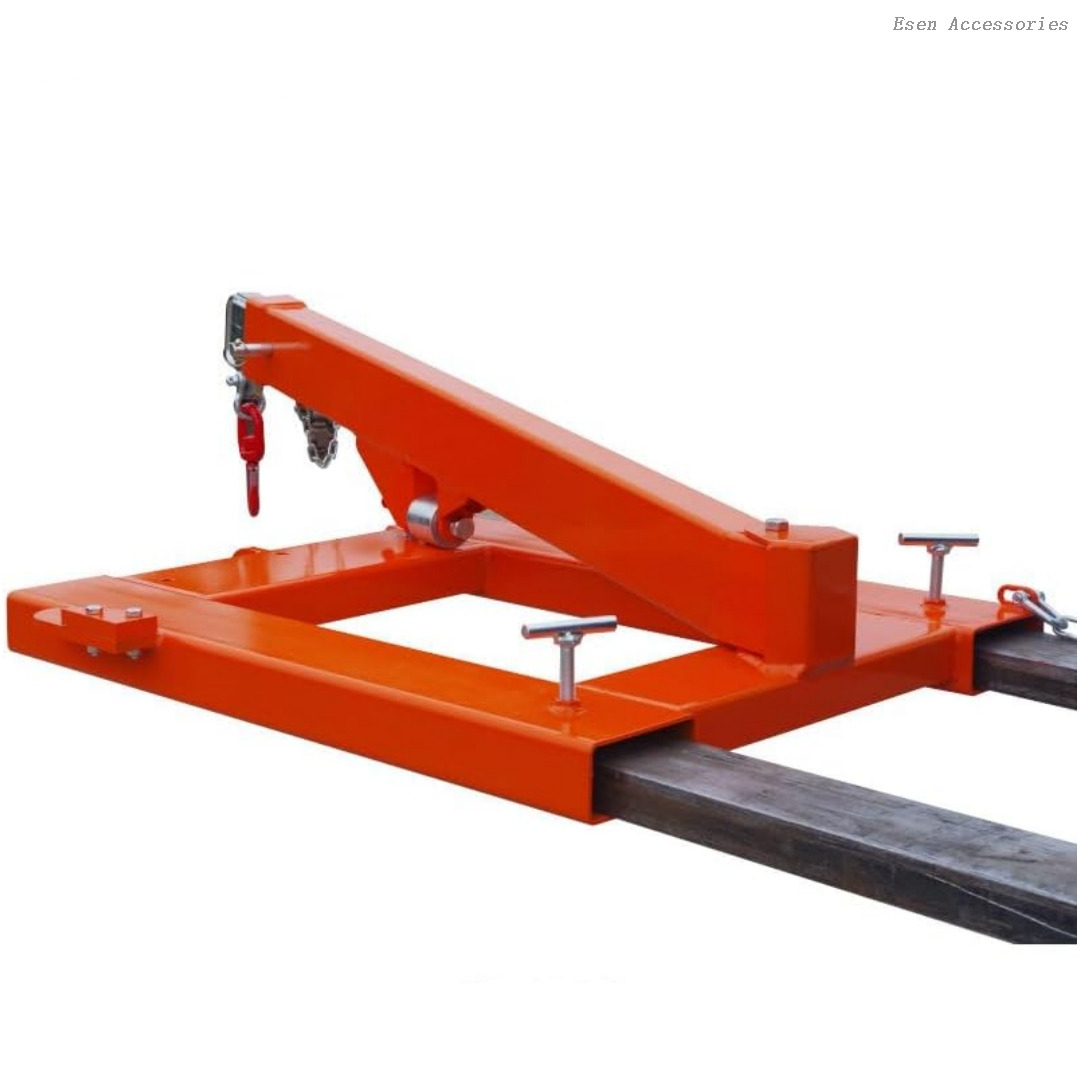

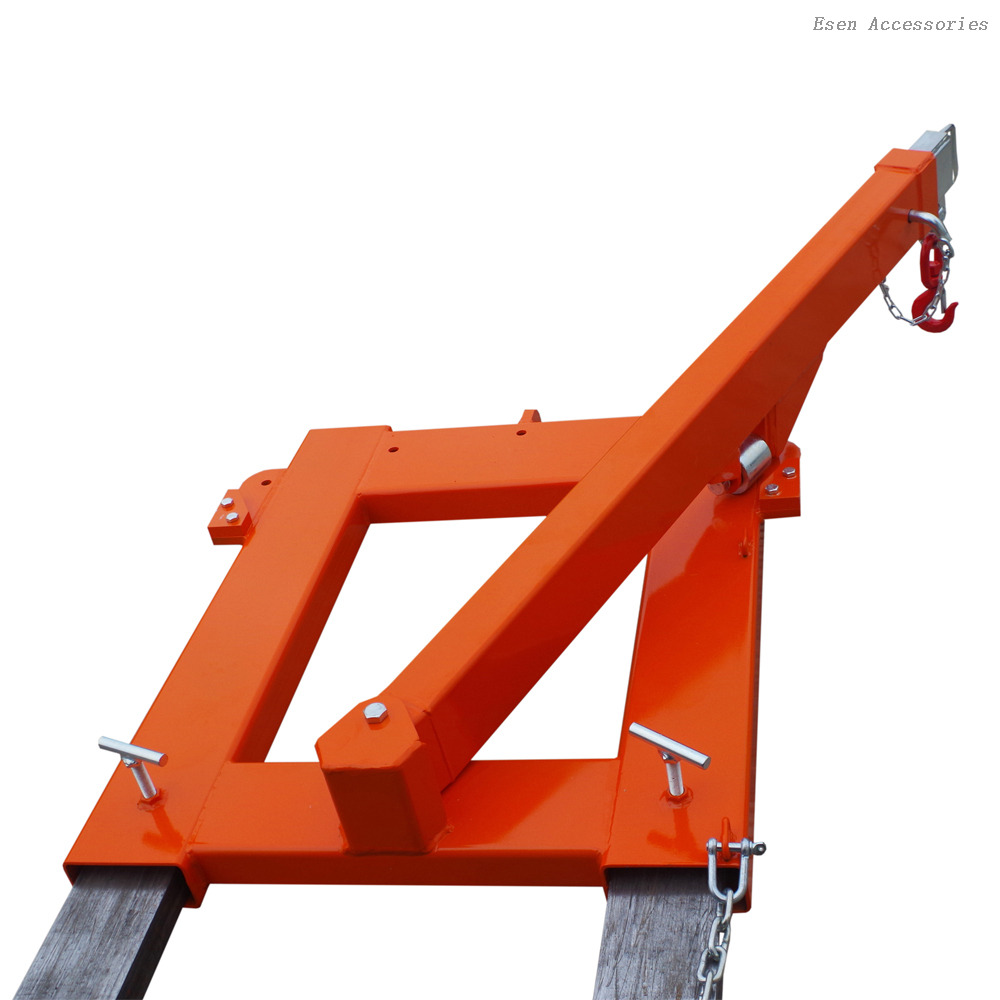

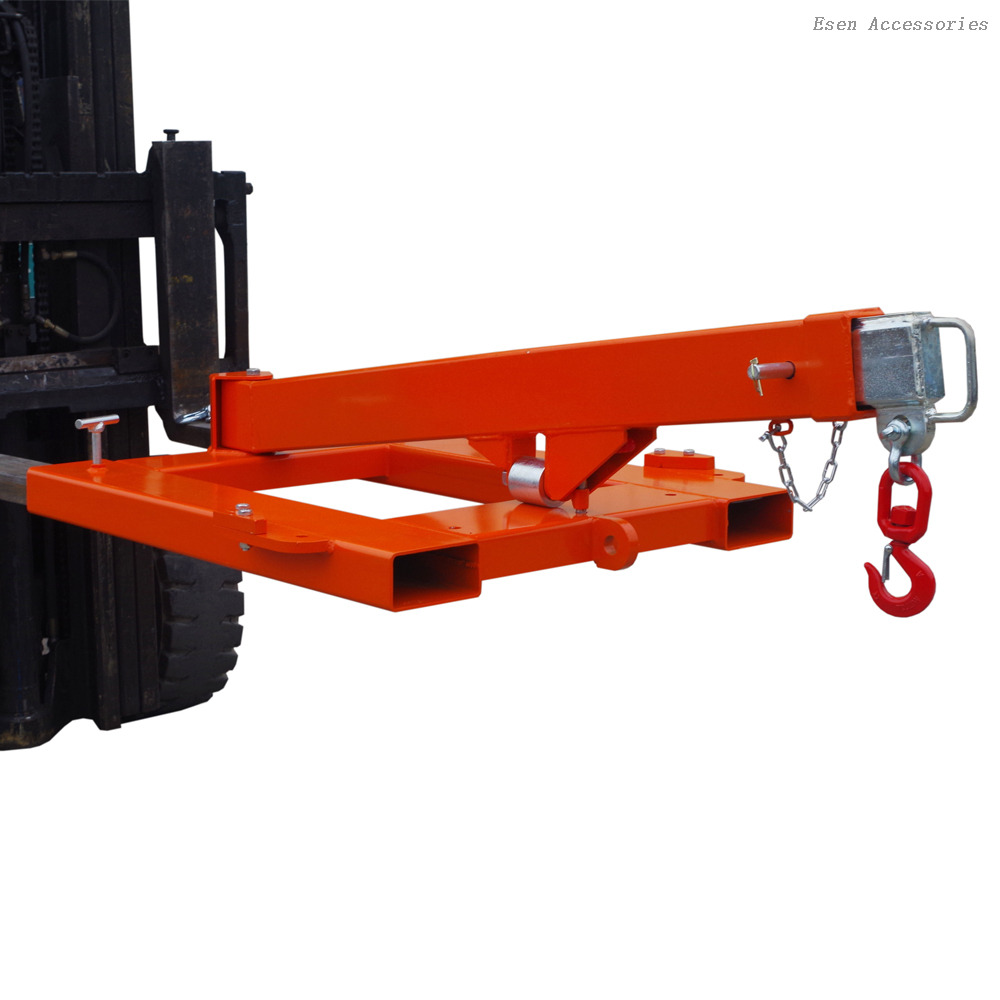

With two locking screw and safety heavy chains to ensure fork not to shift or slip.

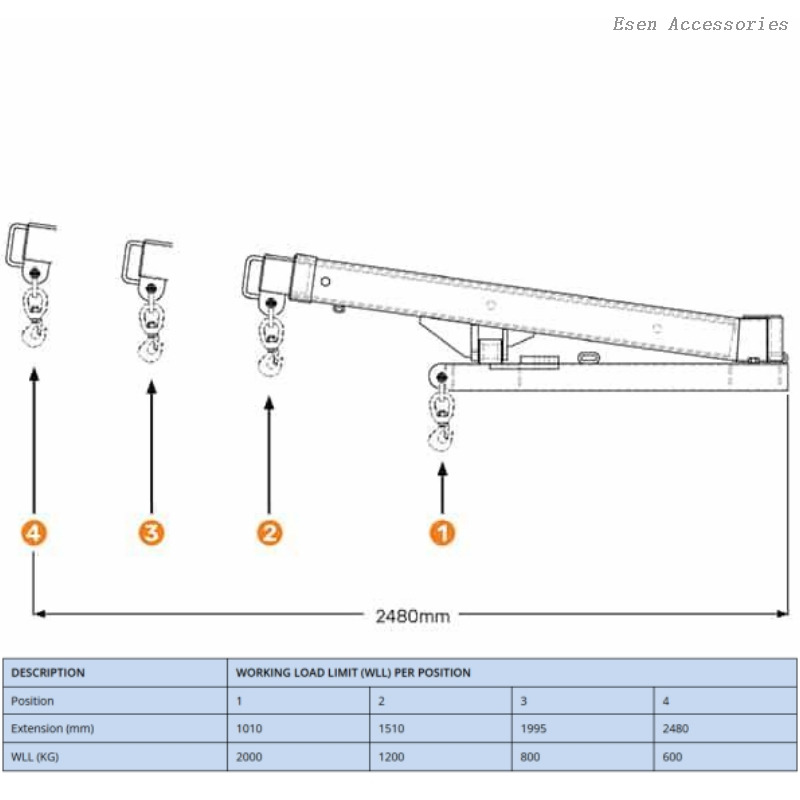

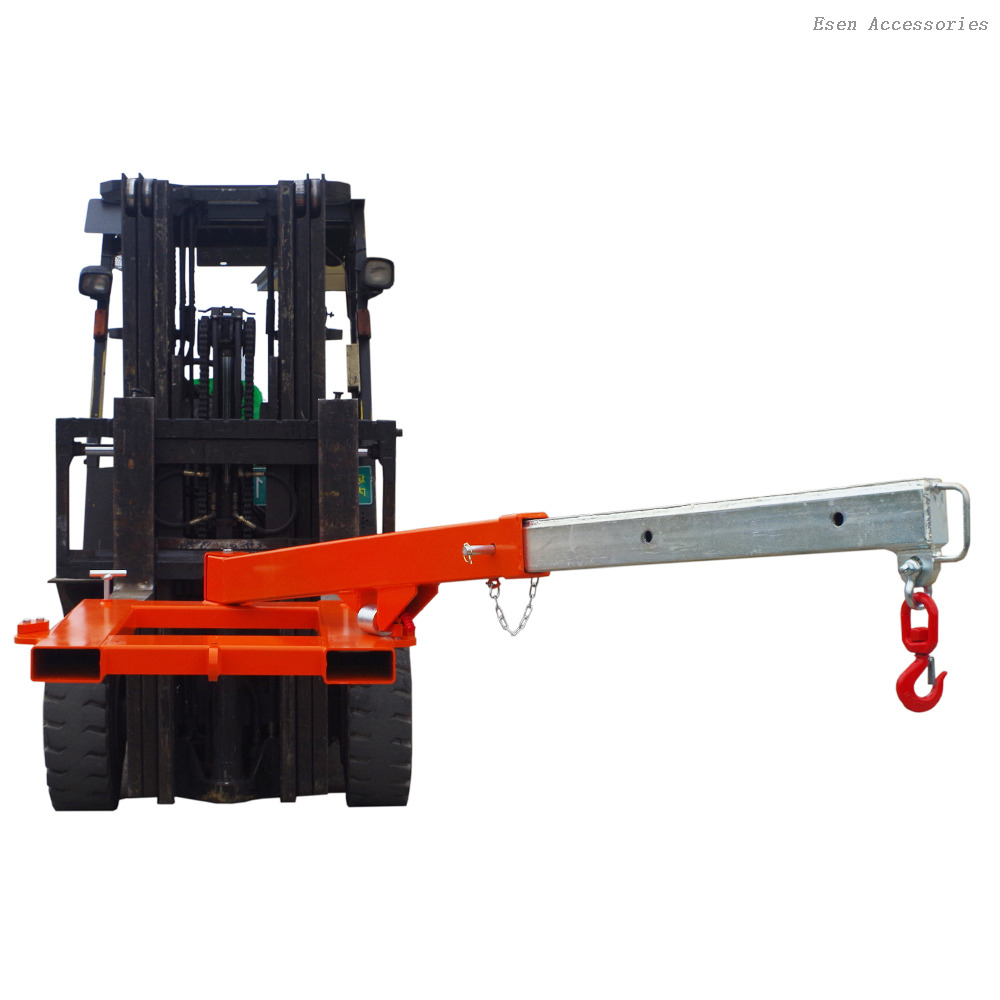

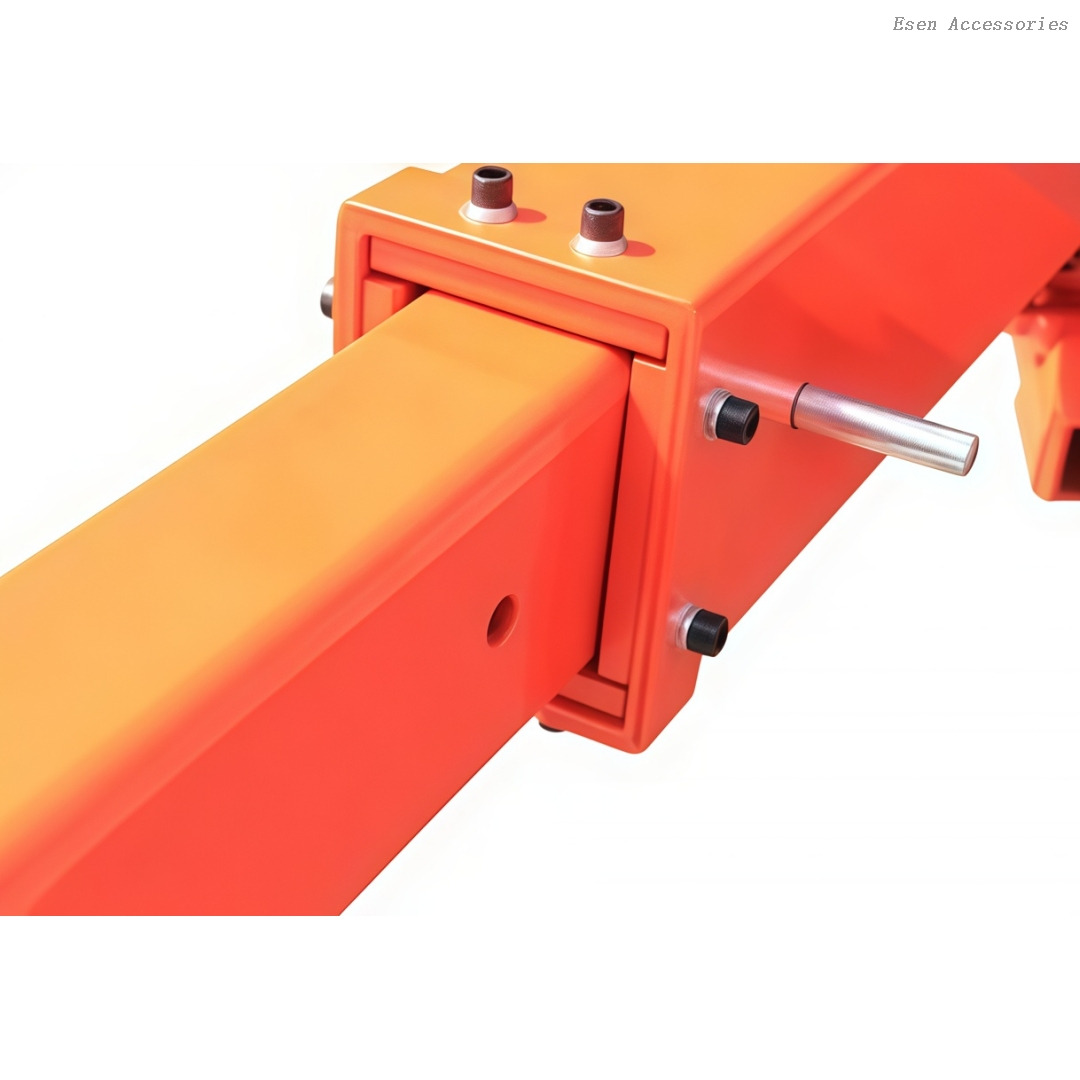

Arm is extendable in 3 levels, and has a hanging angle of 8 degrees for good forward vision.
Specification
| Product Name | Forklift Swing Arm Jib |
| Material | Steel |
| Finish | Painted |
| Safe Working Load | 500-1200kg |
| Pocket Size | 150*70mm |
| Pocket Centre | 650mm |
| Horizontal Centre of Gravity | 660mm |
| Vertical Centre of Gravity | 60mm |
| Weight | 110kg |
| Advantage | Horizontal Adjustment, Extendable |
Application

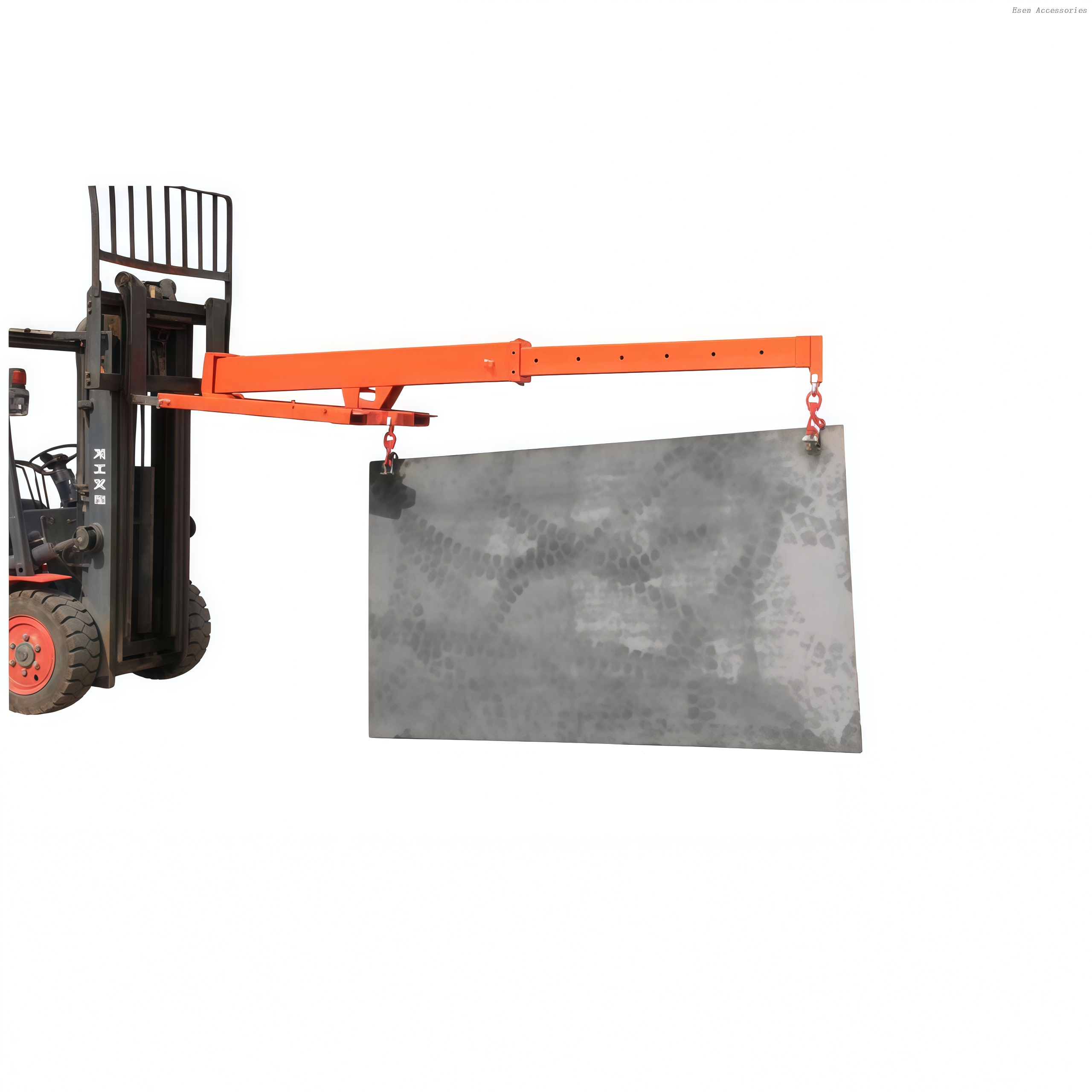

Extend the heavy-duty lifting arm to access narrow areas, containers, or elevated zones unreachable by traditional forklifts.
Ideal for long strip materials (steel beams, piping, timber) or awkward loads, reducing manual handling risks.
Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
