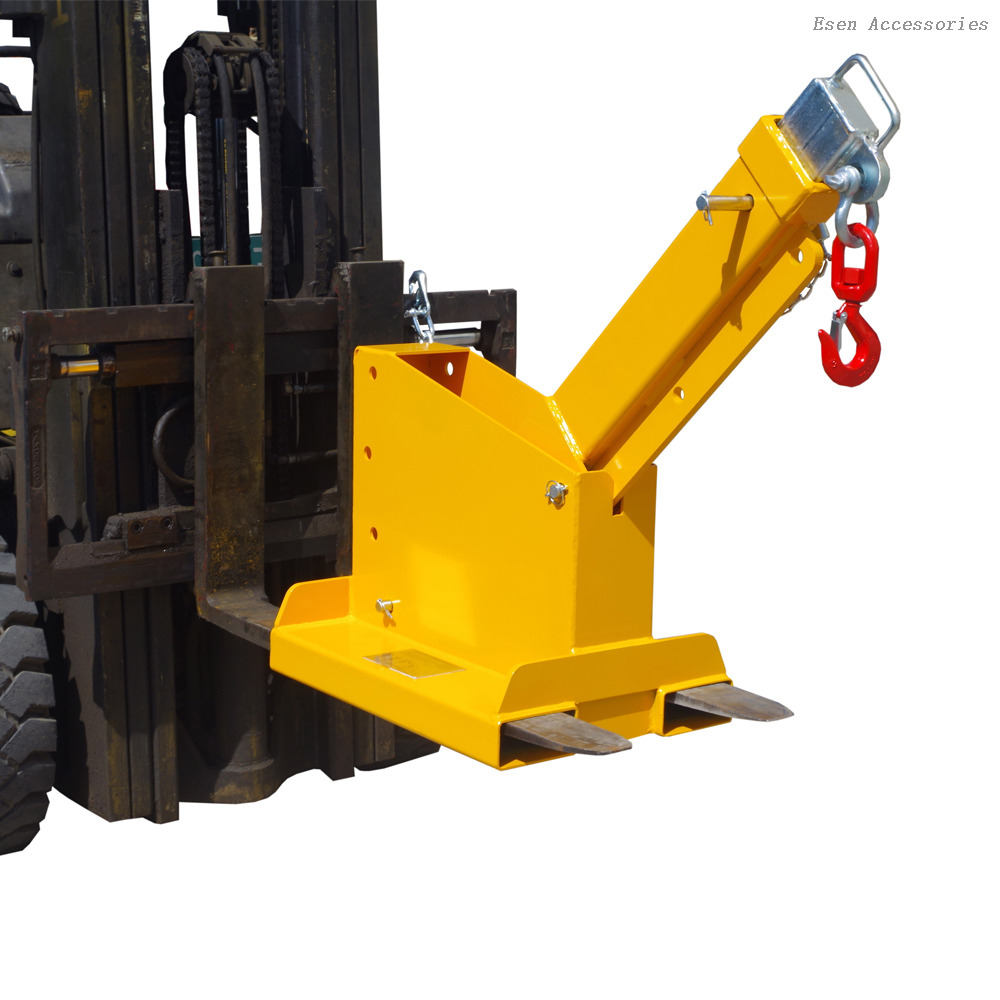

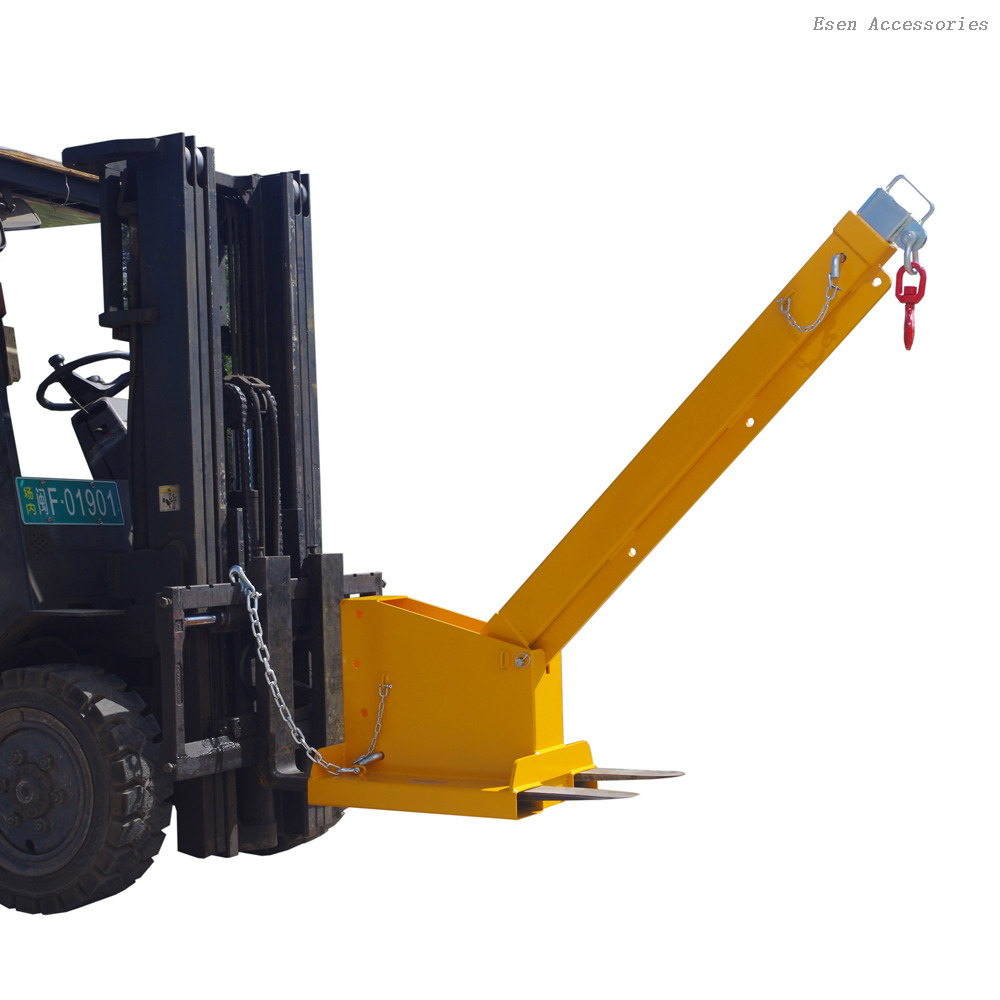

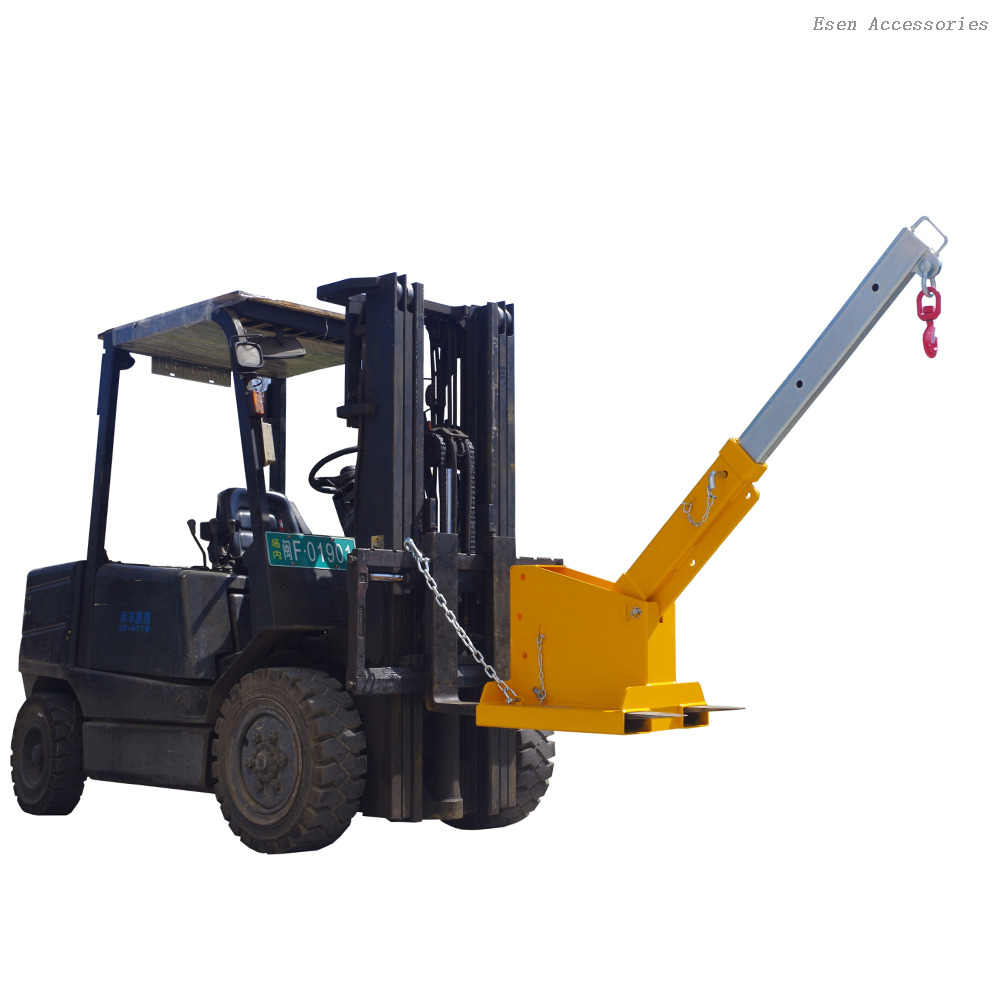

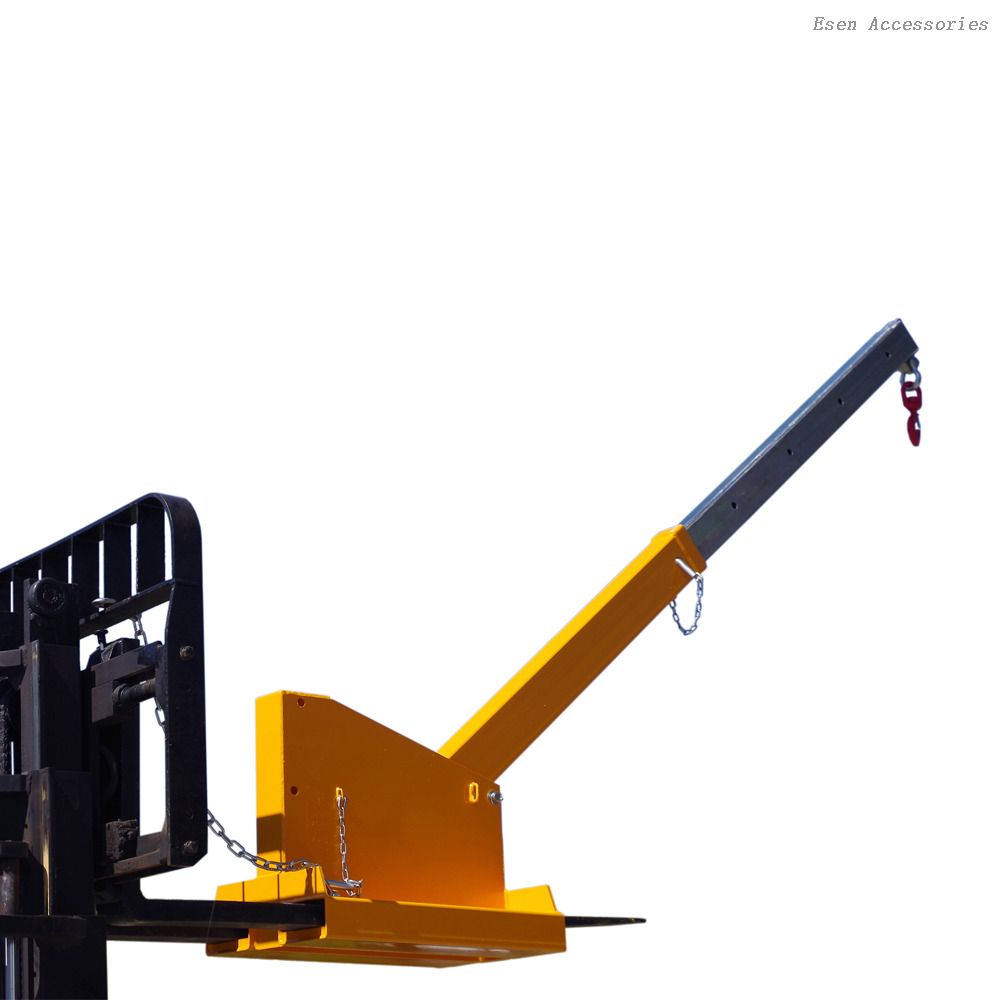

The Tilt Jib (Short) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with a Jib attachment. A maximum height of 1.4 metres can be gained while the Jib can be fully extended to 2.02 metres. This slip-on attachment is held to the Forklift by a safety chain.The Jibs overall length when closed is 1.35 metres.

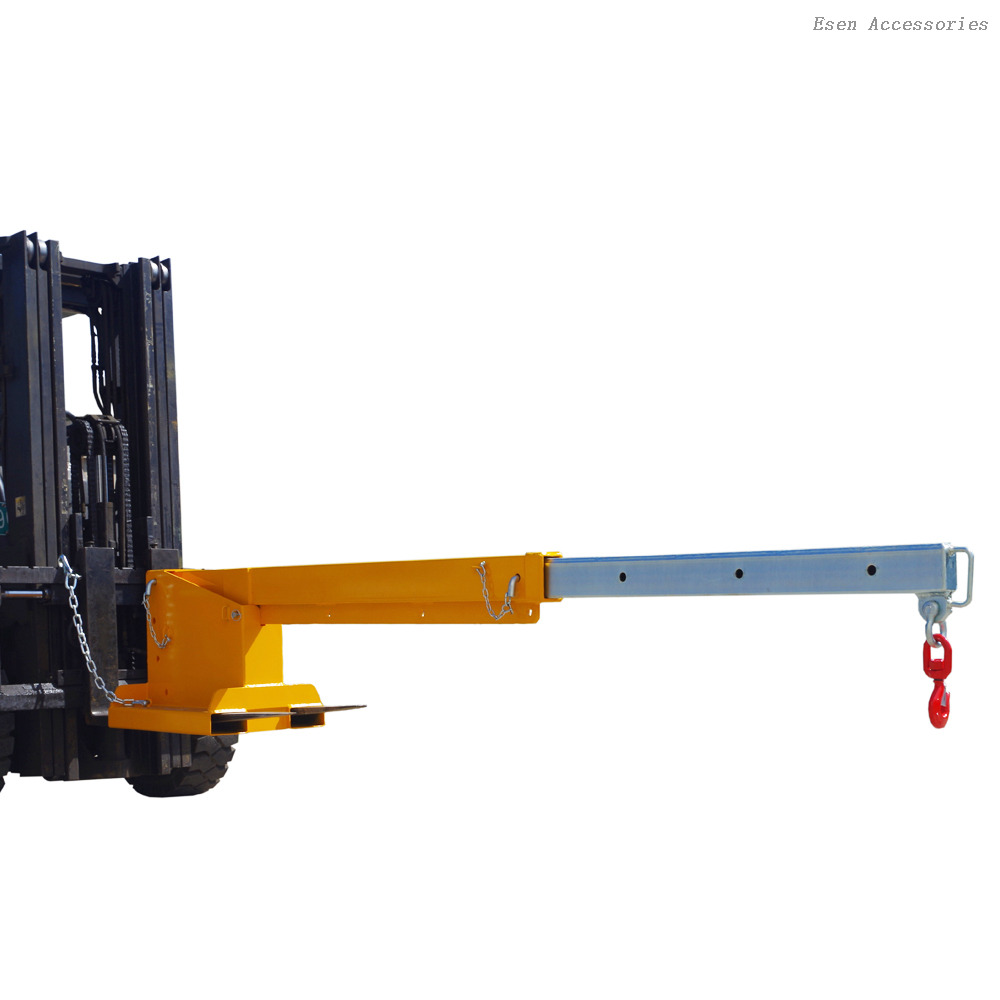

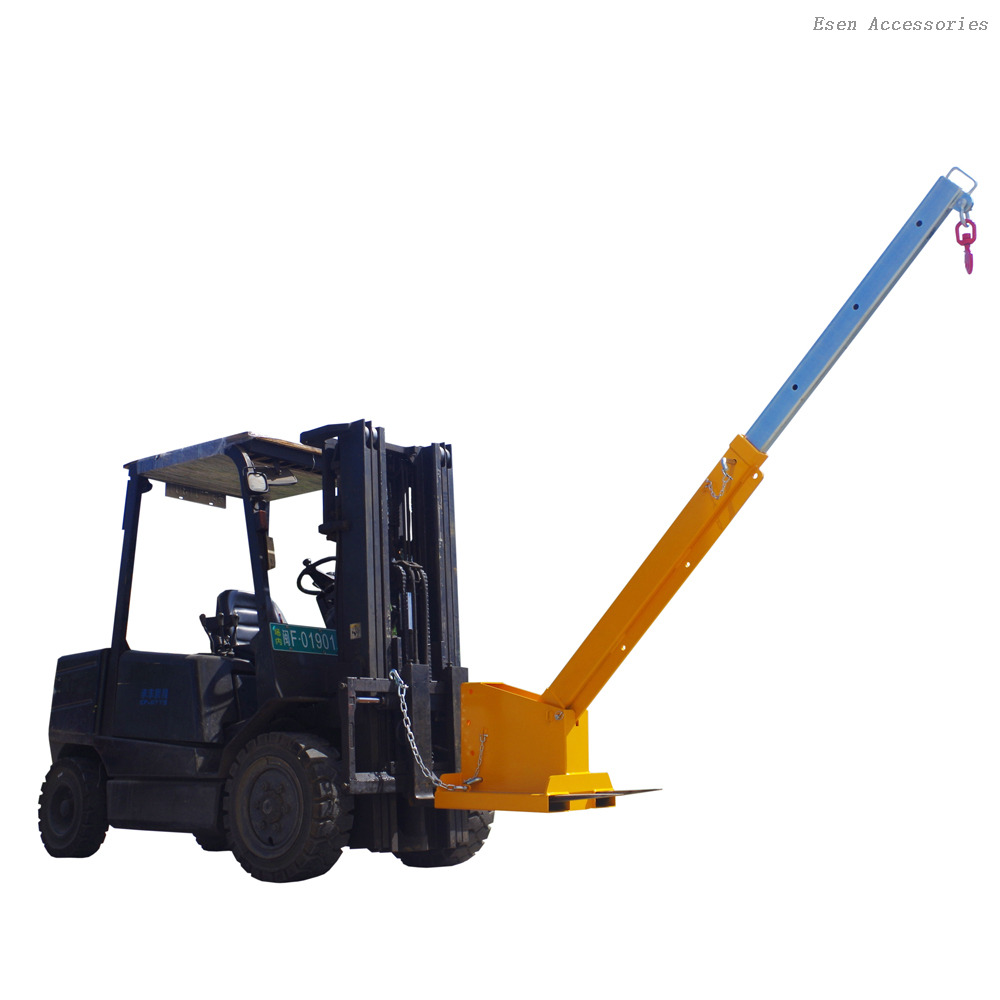

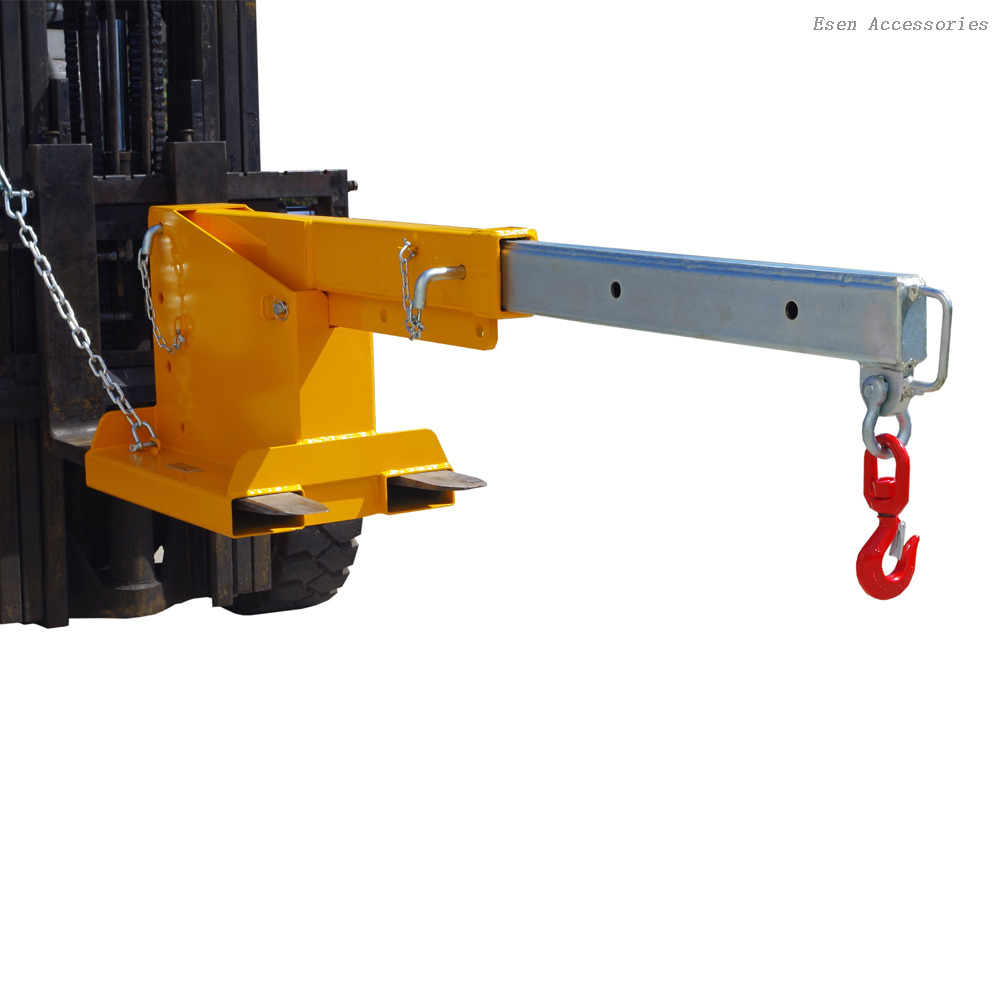

The Tilt Jib (Long) is the most versatile Forklift Jib attachment in our range, allowing extra height to 2.48 metres, with a 3.58 metre reach when fully extended. This slip-on attachment is held to the Forklift by a safety chain. The Jibs overall length when closed is 2.15 metres.
Specification
| 2.5T Short Tilt Jib | 2.5T Long Tilt Jib | 4.5T Long Tilt Jib | 5T Short Tilt Jib | 5T Long Tilt Jib | |
| Material | Steel | ||||
| Finish | Zinc Plated | ||||
| Safe Working Load/kg | 2500 | 2500 | 4500 | 5000 | 5000 |
| Jib Length (when closed) | 1.35m | 2.15m | 2.1m | 1.36m | 2.16mm |
| Jib Length (when extended) | 2.02m | 3.58m | 3.53m | 2.03m | 3.59m |
| Fork Pocket Size/mm | 140*65 | 140*65 | 185*65 | 185*75 | 185*75 |
| Fork Pocket Centres/mm | 312 | 312 | 322 | 370 | 370 |
| Weight/kg | 130 | 180 | 190 | 180 | 240 |
| Size/mm | 1350*470*560 | 2150*470*560 | 2100x520x650 | 1360*570*660 | 2160*570*660 |
| Hook Positions | 5 | 8 | 6 | 5 | 8 |
| Tilt Positions | 3 | 3 | 2 | 3 | 3 |
| Adjustable Angle | 15°,30°,45° | 15°,30°,45° | 20°,40° | 14°,28°,42° | 14°,28°,42° |
Application
Versatile Applications: Perfect for warehouses, construction sites, factories, and logistics, this forklift crane attachment handles everything from machinery installation to heavy material transport. A must-have tool for professionals who demand power, flexibility, and reliability.
Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
Our Advantages
We are proud to have a professional and experienced independent R&D team dedicated to product innovation. Our engineers specialize in structural design, material optimization, and new product development.With strong R&D capabilities, we offer OEM/ODM customization services to meet your specific requirements. Whether you need modified sizes, special materials, custom surface treatments, or entirely new structures, our team can provide comprehensive technical support from design to mass production.
