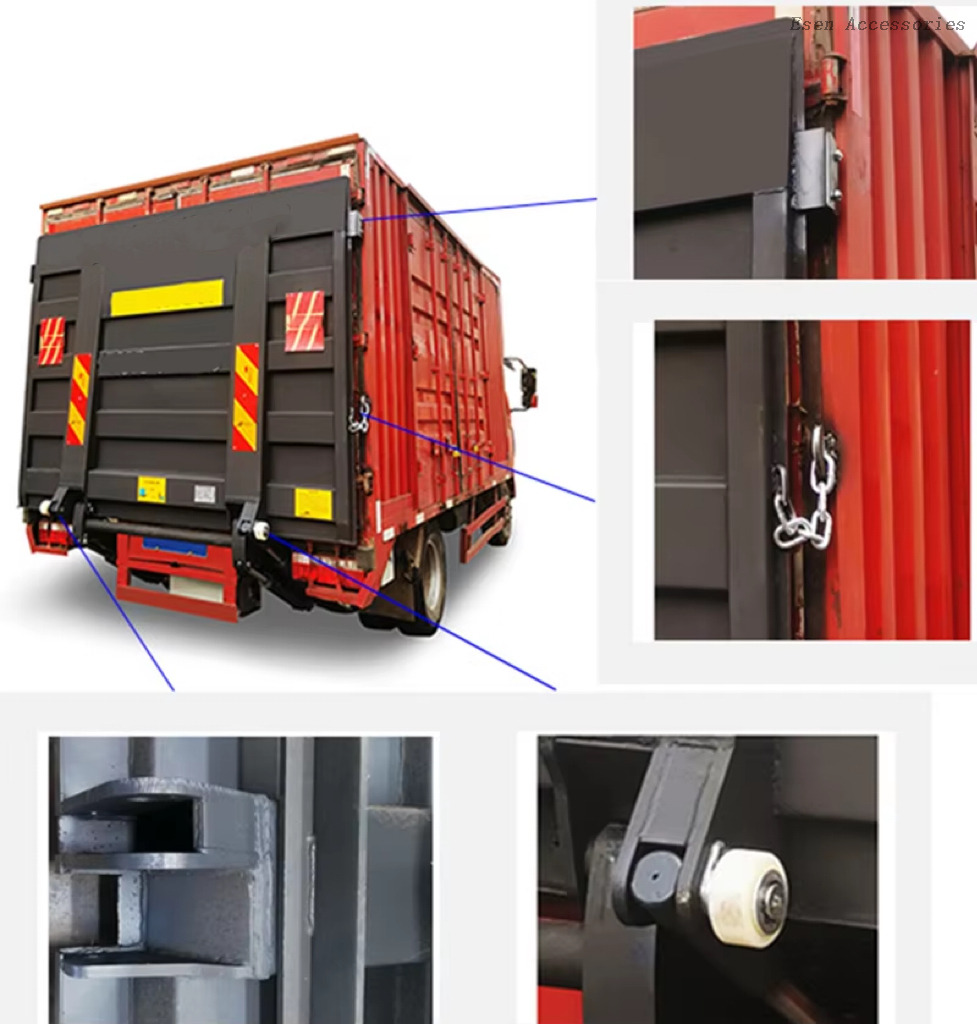

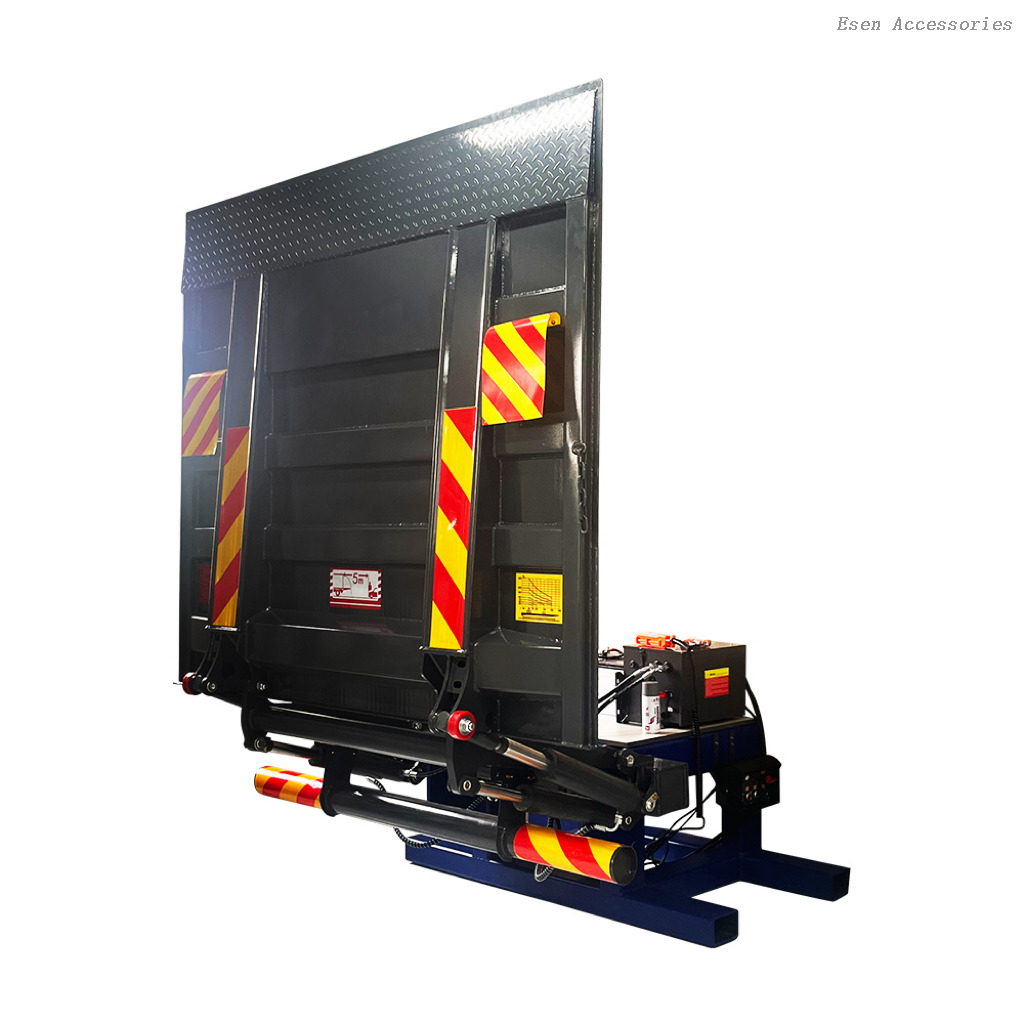

High-strength plate and durable, anti-rust treated cylinder piston rod ensure long-lasting performance. Suitable for multiple industries like logistics and transportation with lifting capacities of 1-3 tons.
Advantages:
* Reduces Manual Labor – Minimizes strain on workers when loading/unloading.
* Time-Efficient – Speeds up cargo handling compared to manual methods.

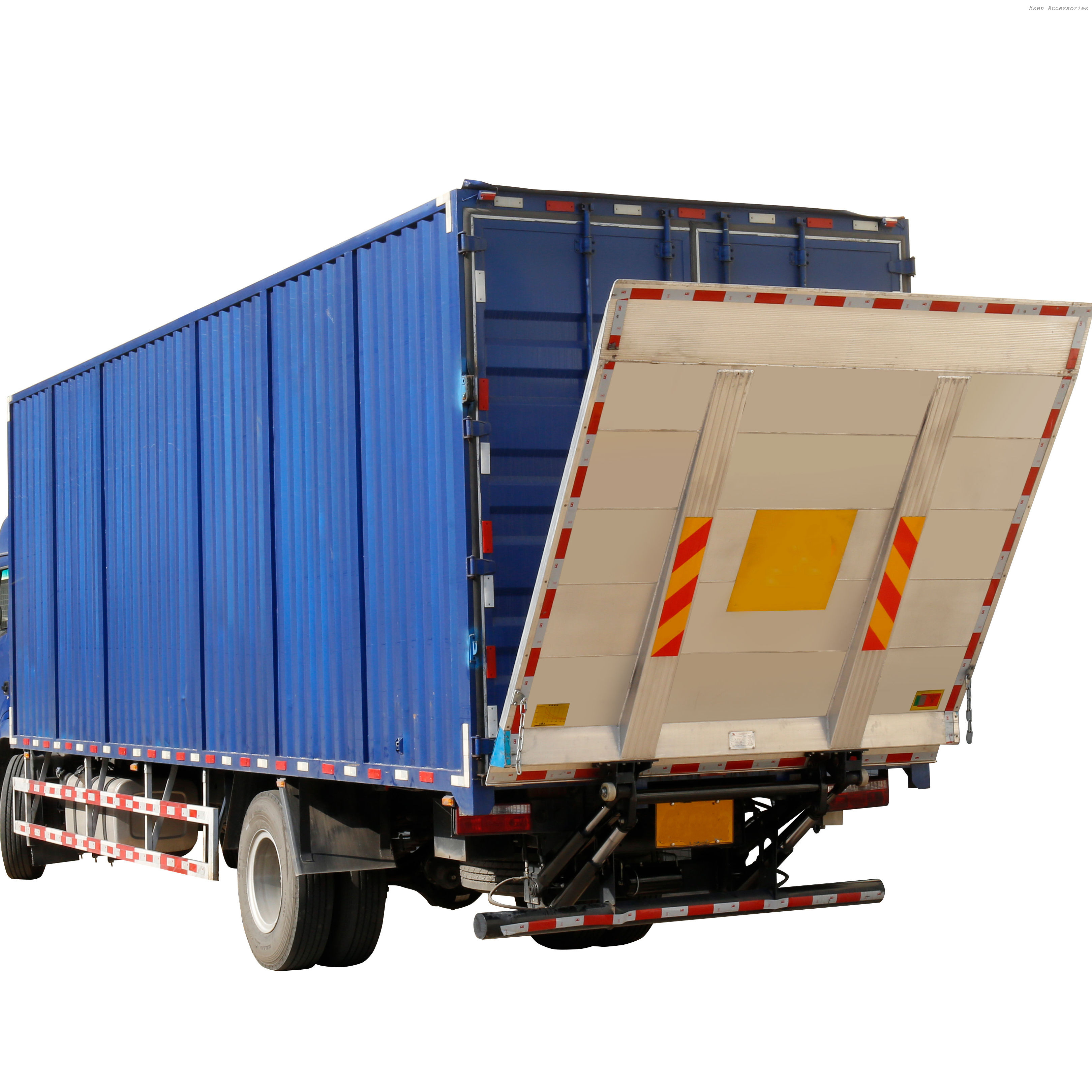

* Space-Saving – Some models fold vertically to save space when not in use.
Specification
| Model | 1Ton | 1.5Ton | 2Ton | 3Ton |
| Panel Size(mm) | 1700*1600 | 1800*1600 | 2000*1800 | 2300*1800 |
| 1800*1600 | 1800*1700 | 2100*1800 | 2400*1800 | |
| 1800*1700 | 1900*1700 | 2200*1800 | 2500*1800 | |
| 1900*1700 | It can be made according to the width of the carriage | |||
| Load Capacity(kg) | 1000 | 1500 | 2000 | 3000 |
| Weight(kg) | 350 | 450 | 550 | 650 |
| Motor Power(kw) | 1.6 | 1.6/2.0/2.5 | 2.0/2.5 | 3 |
| Motor | DC12V-24V/100AH-160AH | |||
| Average Lifting Speed(mm/s) | 60-80(Speed is adjustable) | |||
| Applicable Carriage Ground Height(mm) | 700-1200 | 700-1200 | 1200-1500 | 1200-1500 |
| Hydraulic Oil | 32#/46# Antiwear hydraulic oil | |||
| Platform Working Angle | 5°-9° | |||
Application

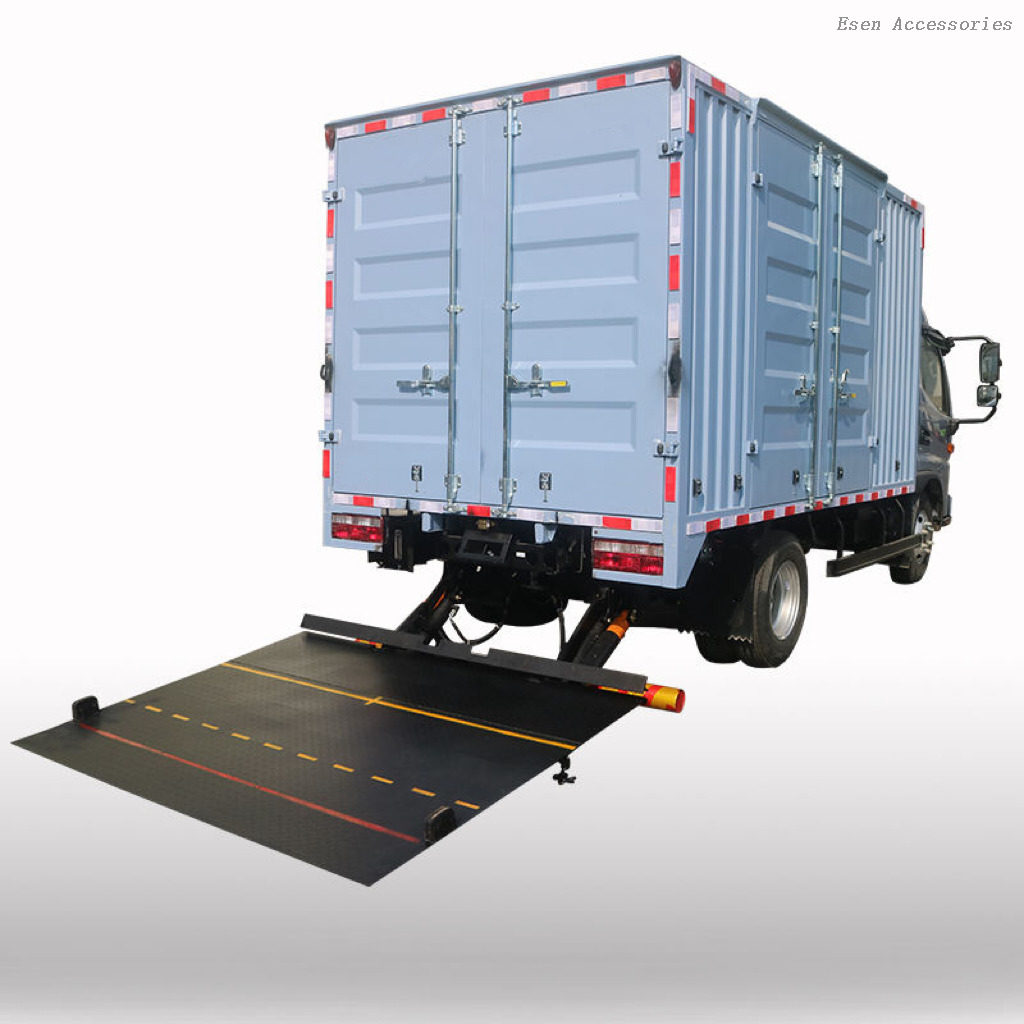

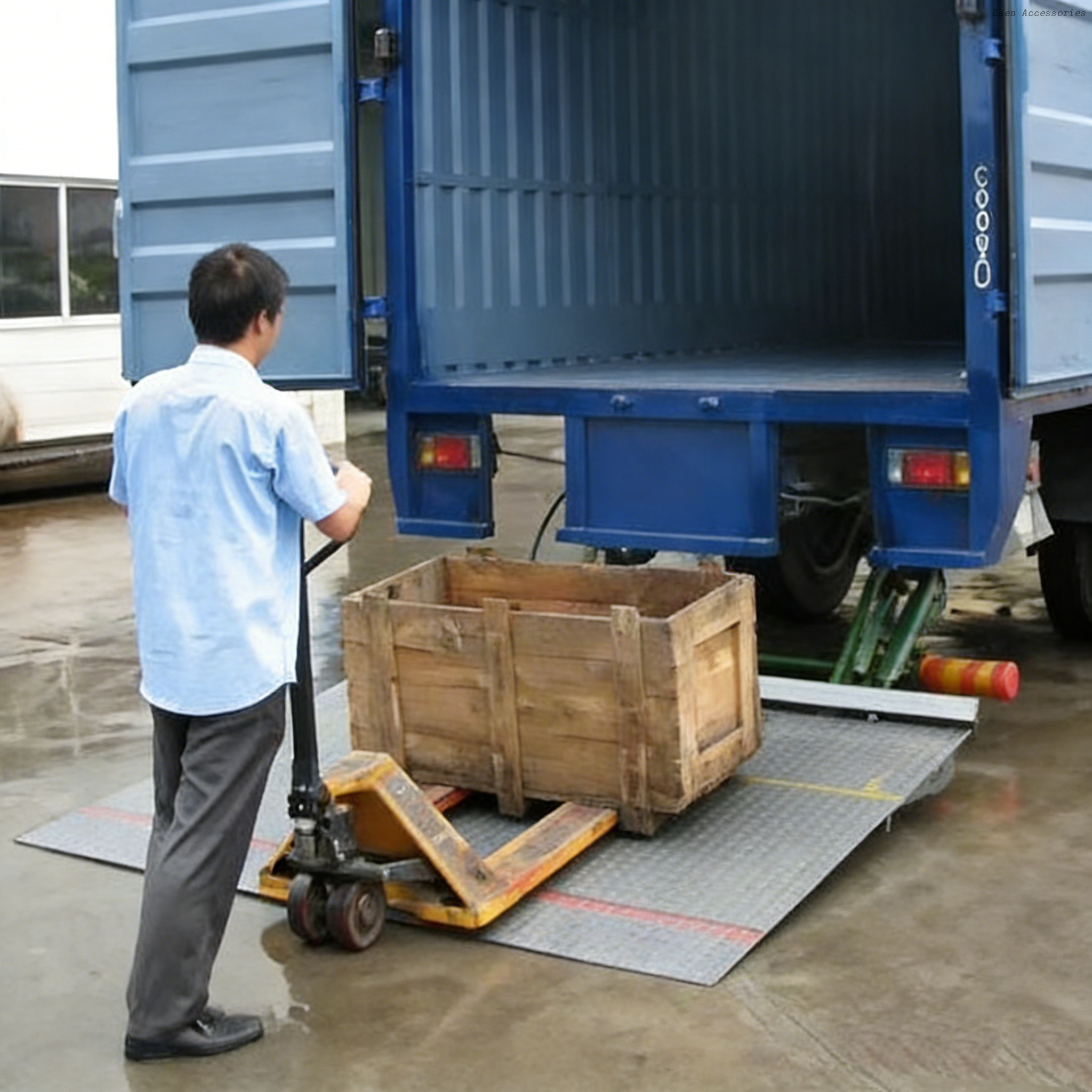

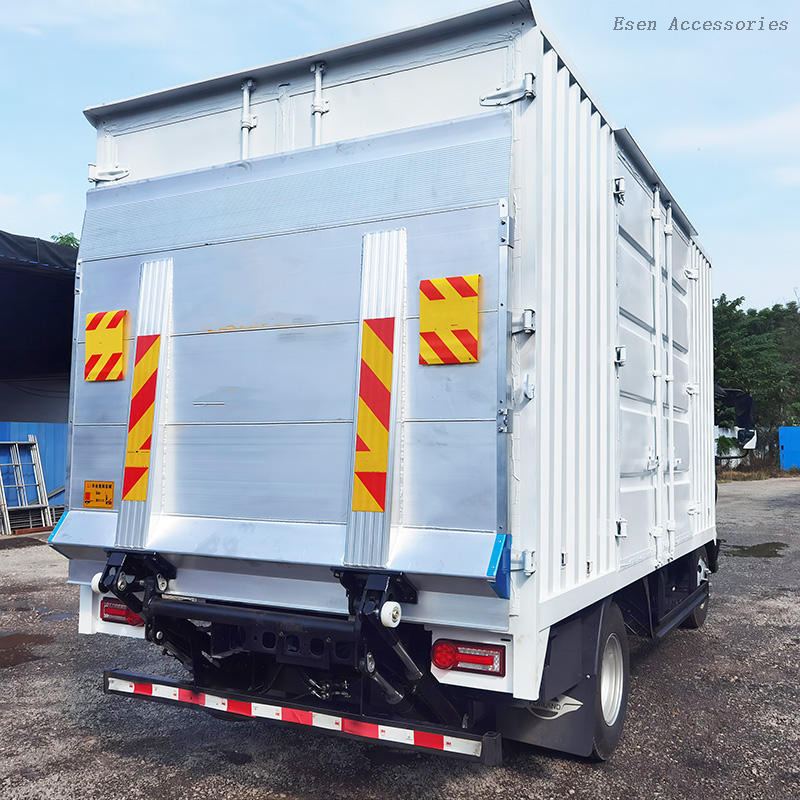

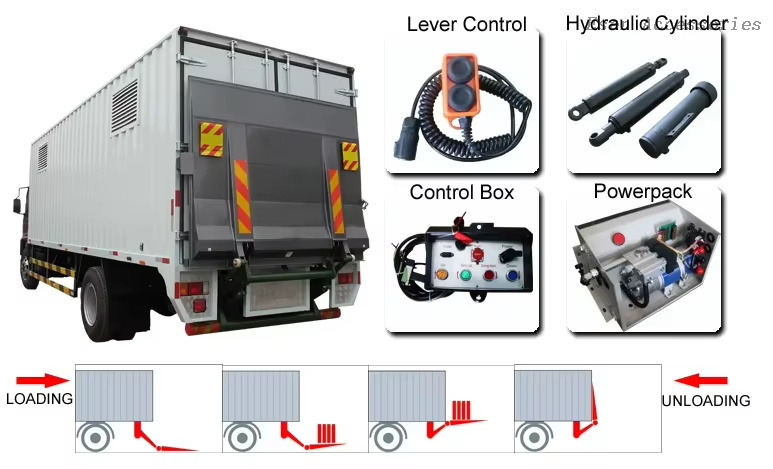

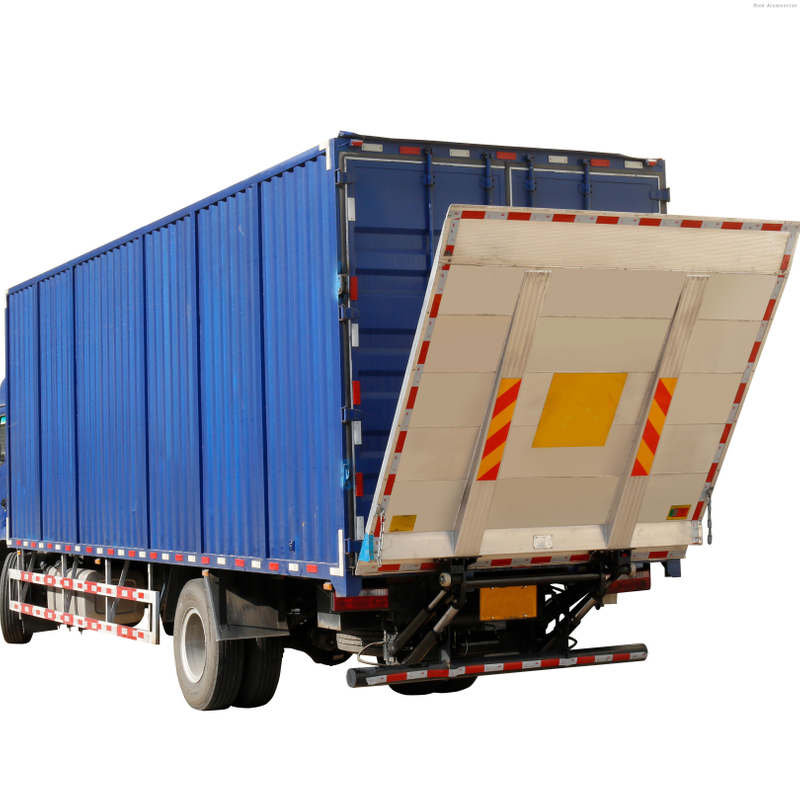

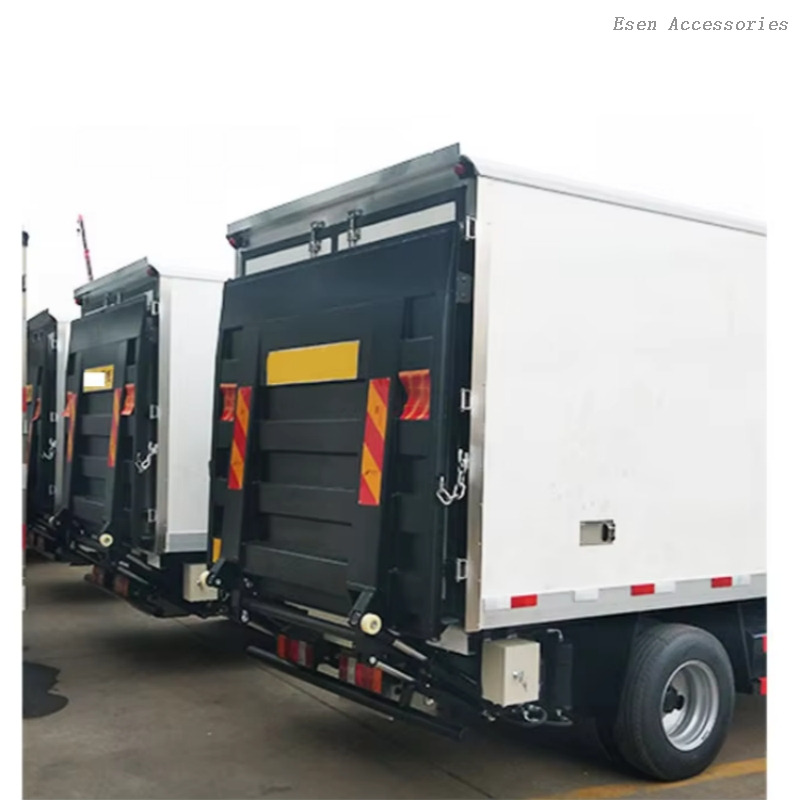

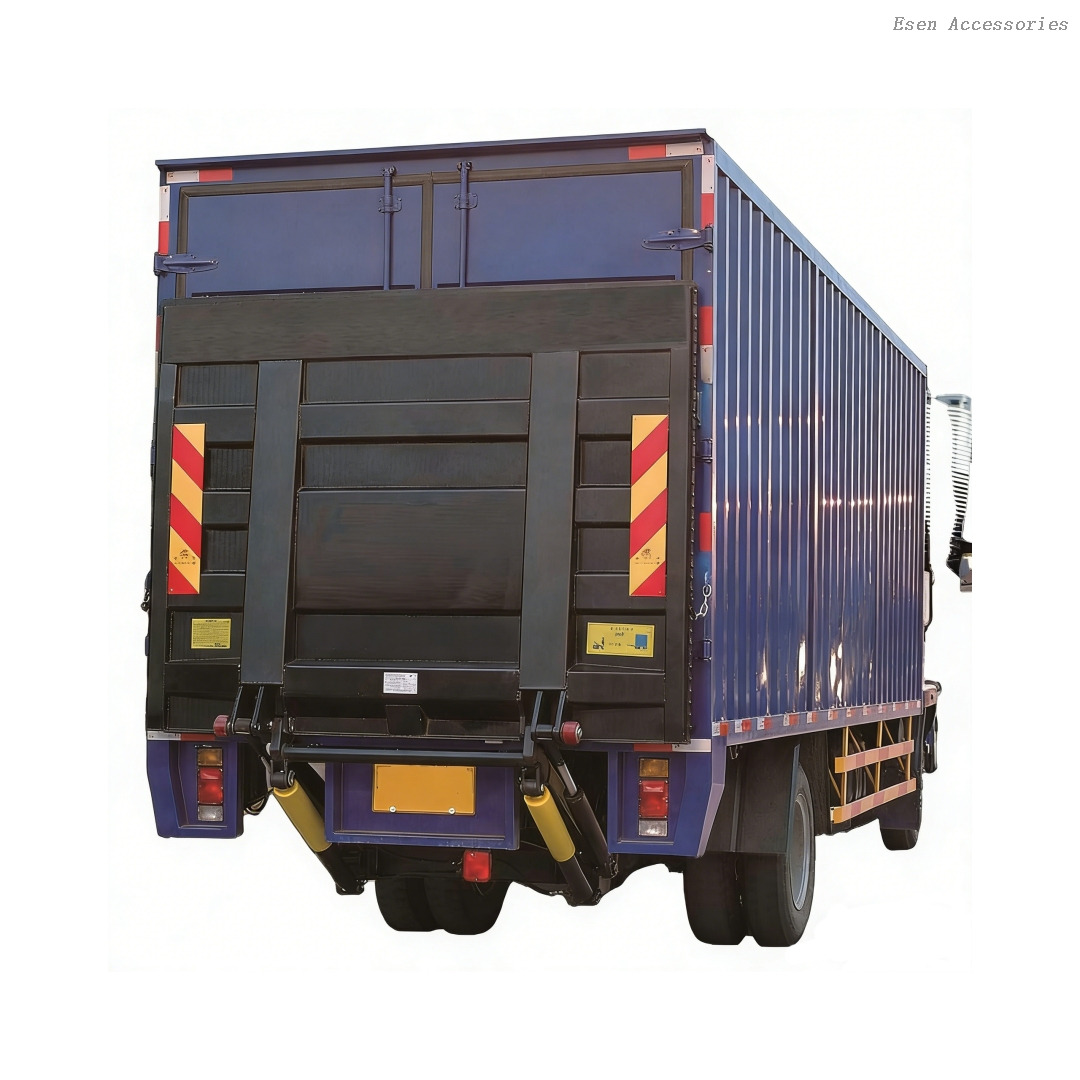

The hydraulic tail gate is a kind of device which is installed at the vehicle tail gate. It is driven by the vehicle power. Vehicles installed with tail gate is beneficial to the mechanical loading and unloading operations, thus highly improves the loading efficiency and safety.
Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
Our Advantages

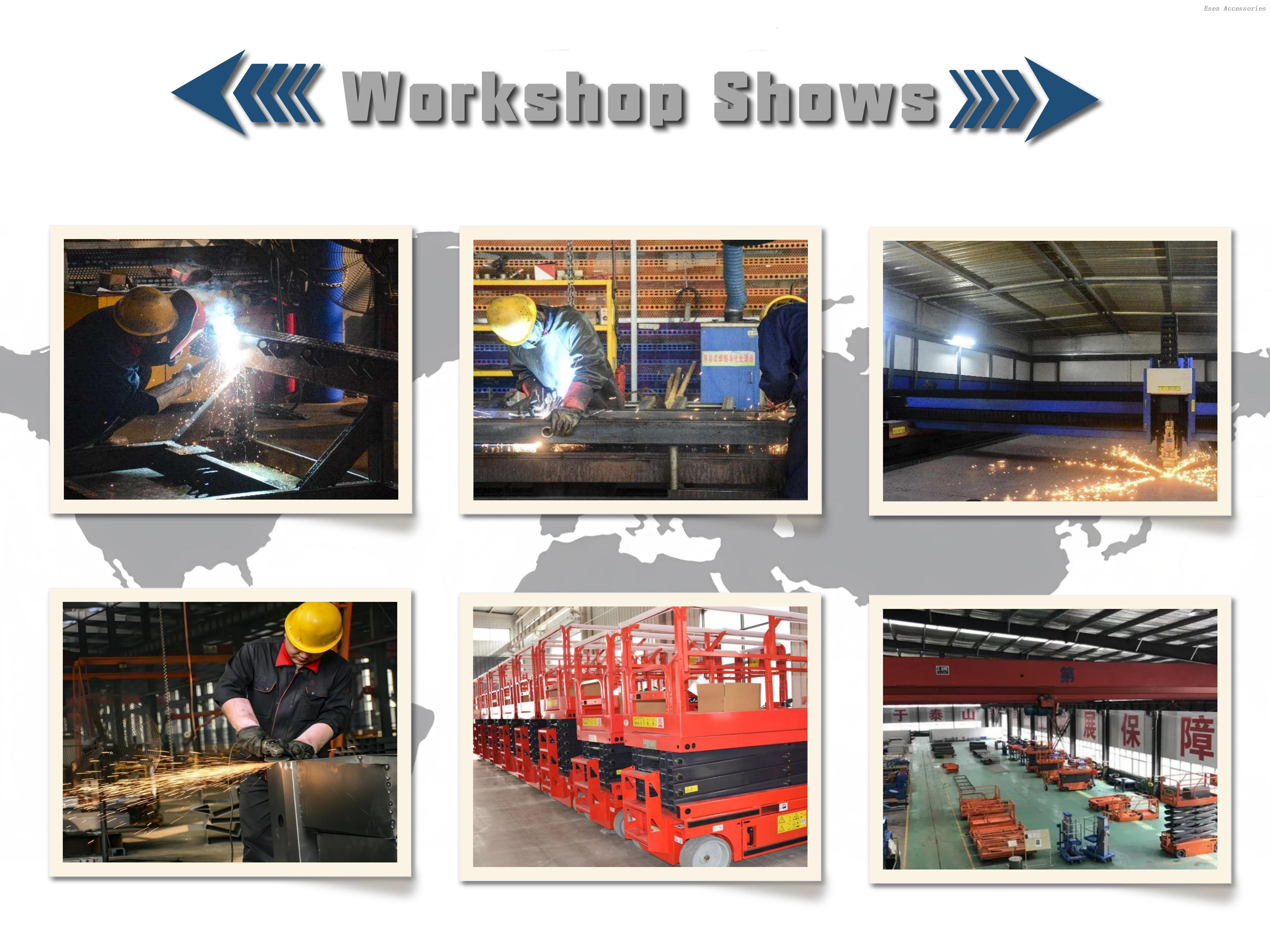

We are proud to have a professional and experienced independent R&D team dedicated to product innovation. Our engineers specialize in structural design, material optimization, and new product development.With strong R&D capabilities, we offer OEM/ODM customization services to meet your specific requirements. Whether you need modified sizes, special materials, custom surface treatments, or entirely new structures, our team can provide comprehensive technical support from design to mass production.
