ISO Shipping Container Support Stand Adjustable Levelling Twistlock Leg up to 580mm 10tons Load
Home » Product Category » Container Lashing Equipments » ISO Shipping Container Support Stand Adjustable Levelling Twistlock Leg up to 580mm 10tons Load

loading

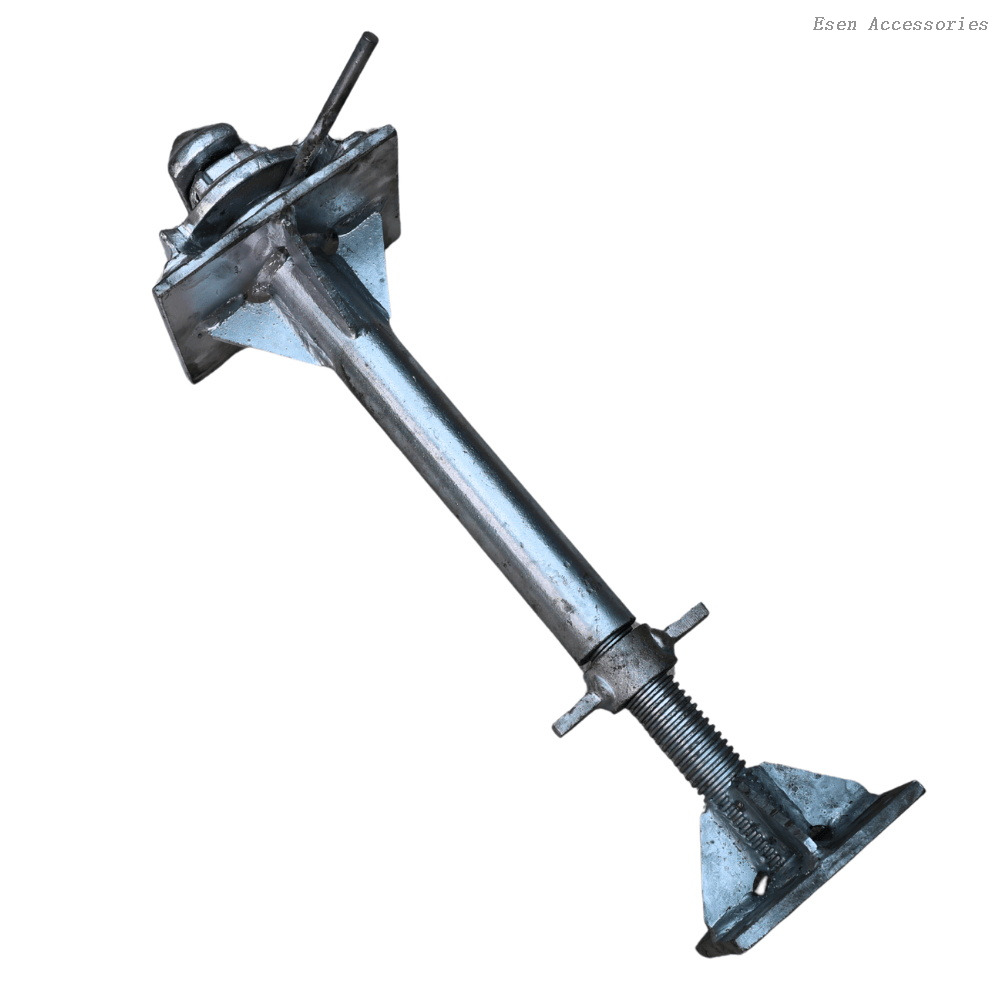

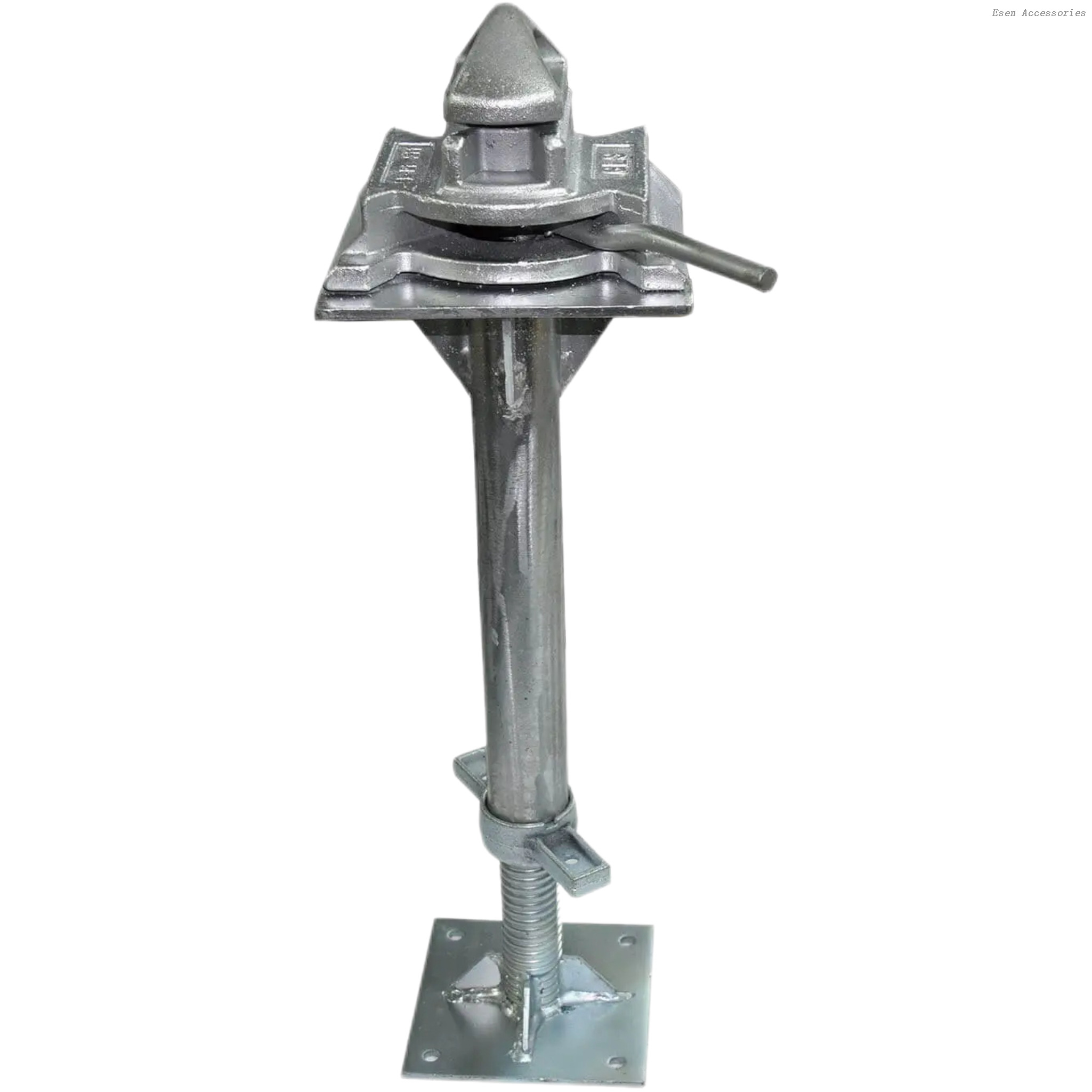

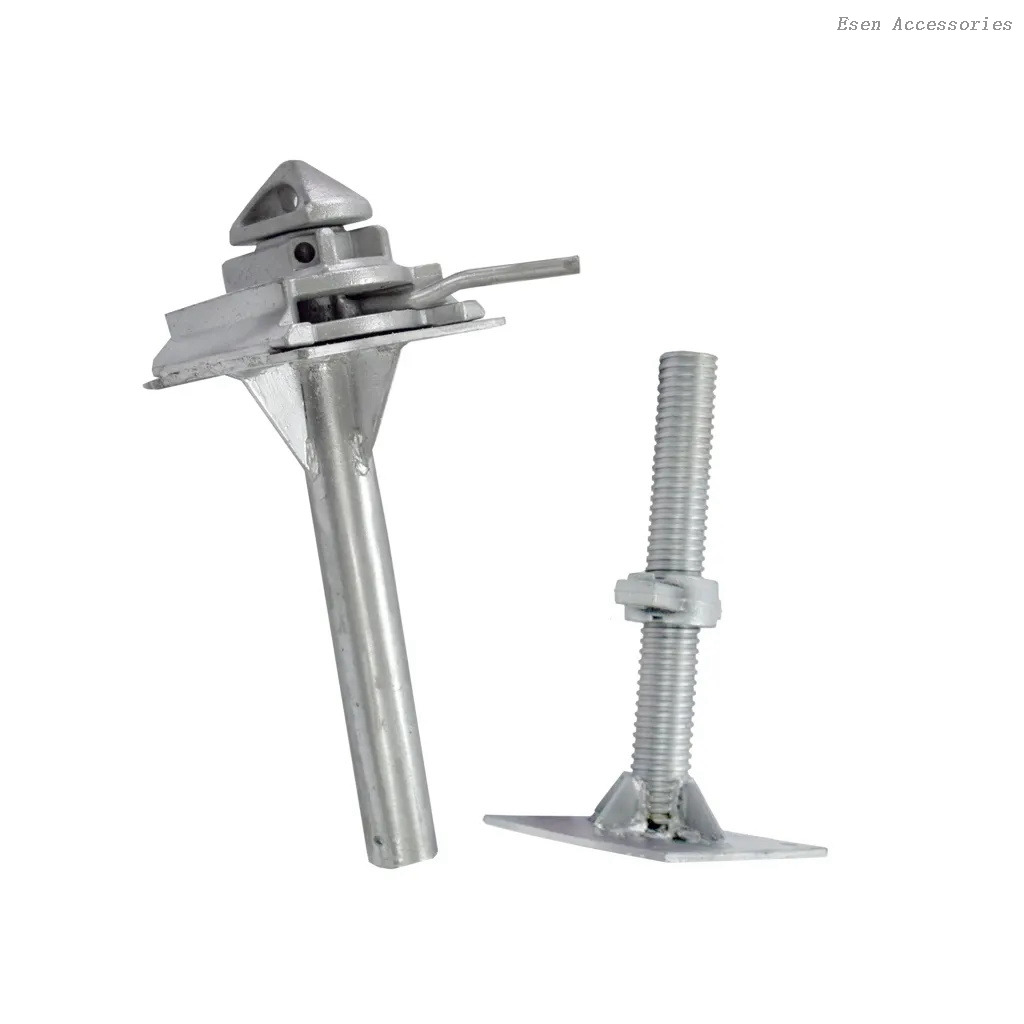

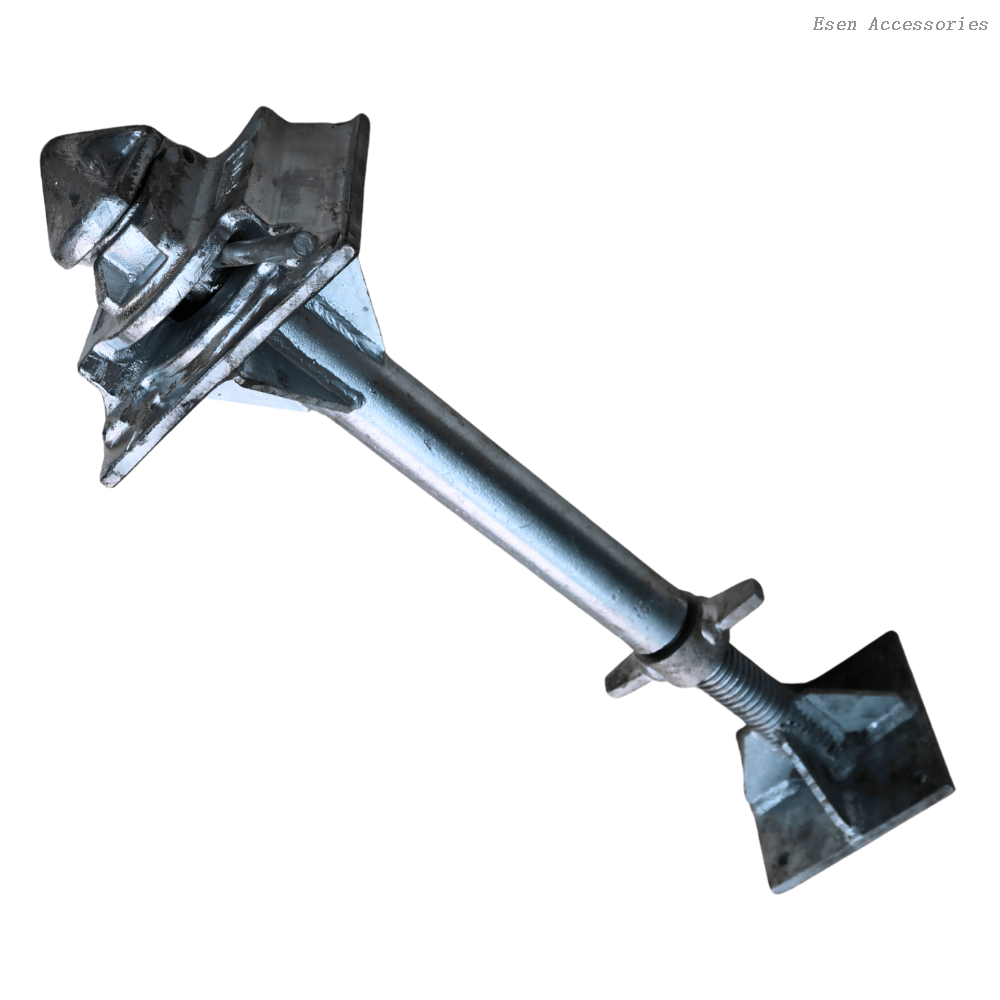

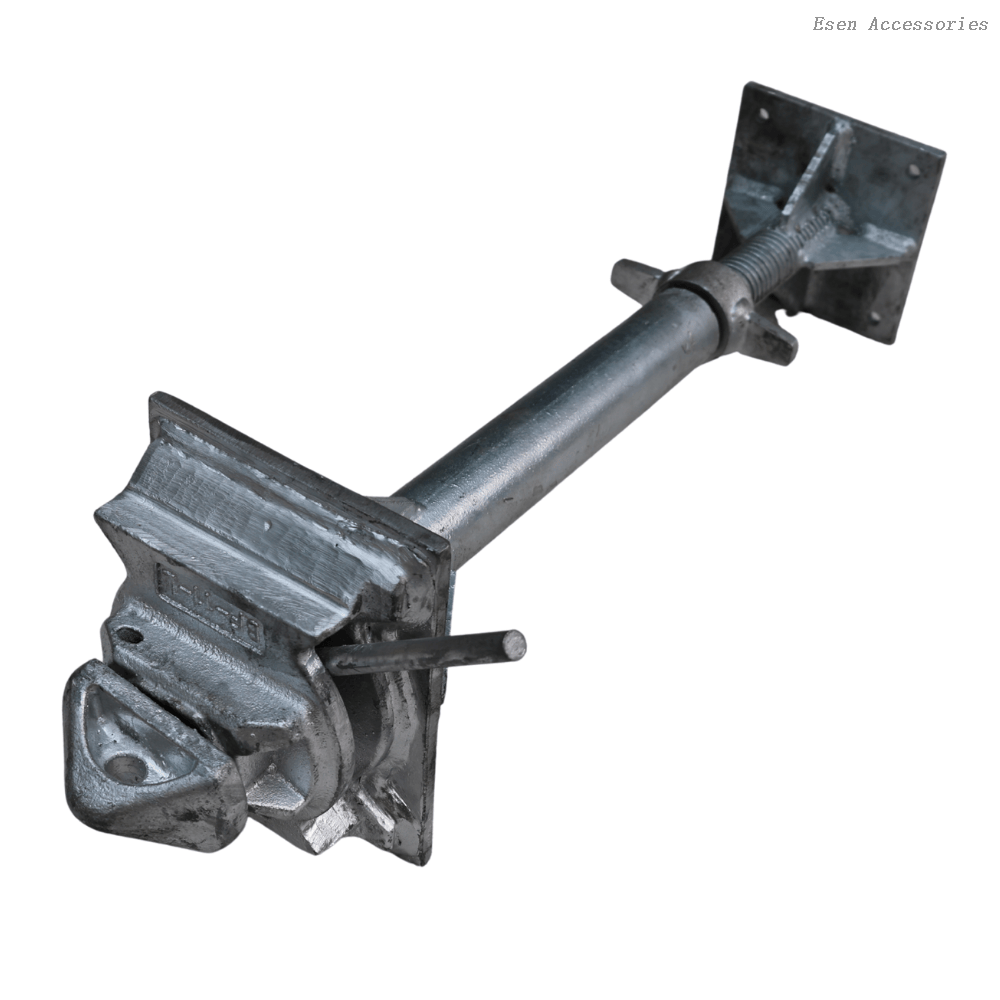

ISO Shipping Container Support Stand Adjustable Levelling Twistlock Leg up to 580mm 10tons Load

It is used to adjust the up and down position of the container to achieve balance,and it is also an auxiliary tool for temporarily supporting the container.
Built for stability, reliability, and ease of use, the Adjustable Twistlock Levelling Leg is a must-have for container conversions, temporary site setups, or uneven ground storage.
Availability:
Quantity:
Inquire Add to Basket

PDF Export
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

It is used to adjust the up and down position of the container to achieve balance,and it is also an auxiliary tool for temporarily supporting the container.

Built for stability, reliability, and ease of use, the Adjustable Twistlock Levelling Leg is a must-have for container conversions, temporary site setups, or uneven ground storage.

65

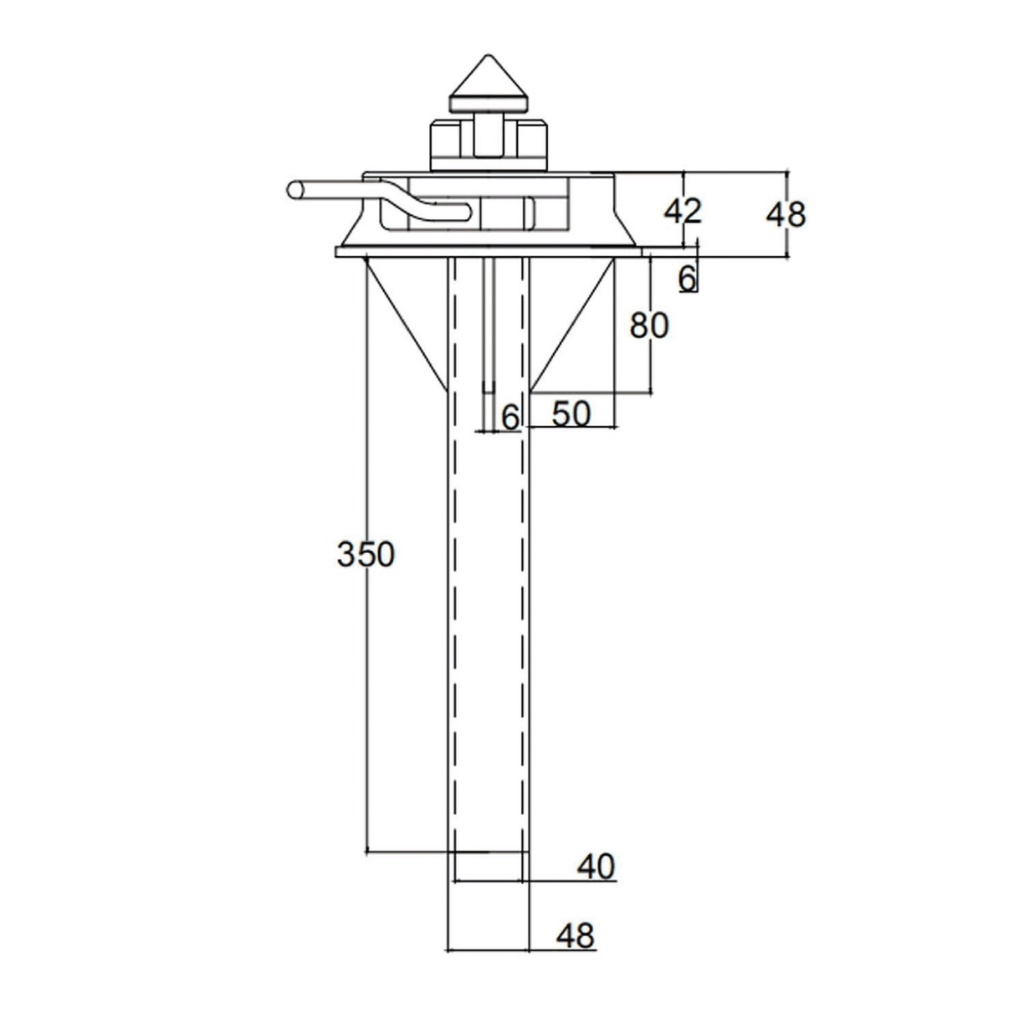

Product Name

Adjustable Levelling Twistlock Leg

Part No

ESEN-ALTL-01
Meterial

Steel

Load Ratin

10tons

Weigh

12.8kg
Adjustable Heigh

580mm
Mounting Hole Diamete

4*10mm
Adjustment

Threaded Rotary Screw

Application：

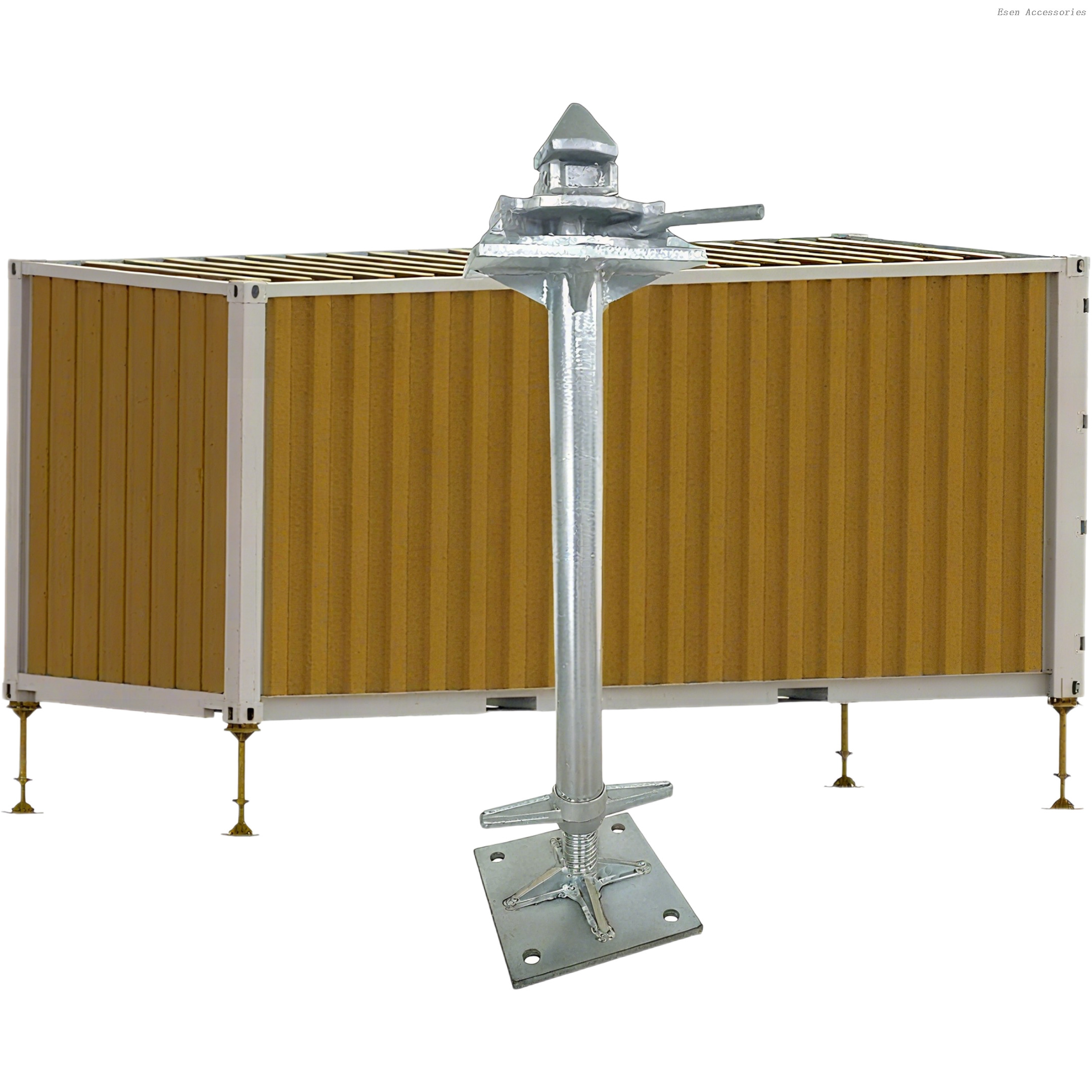

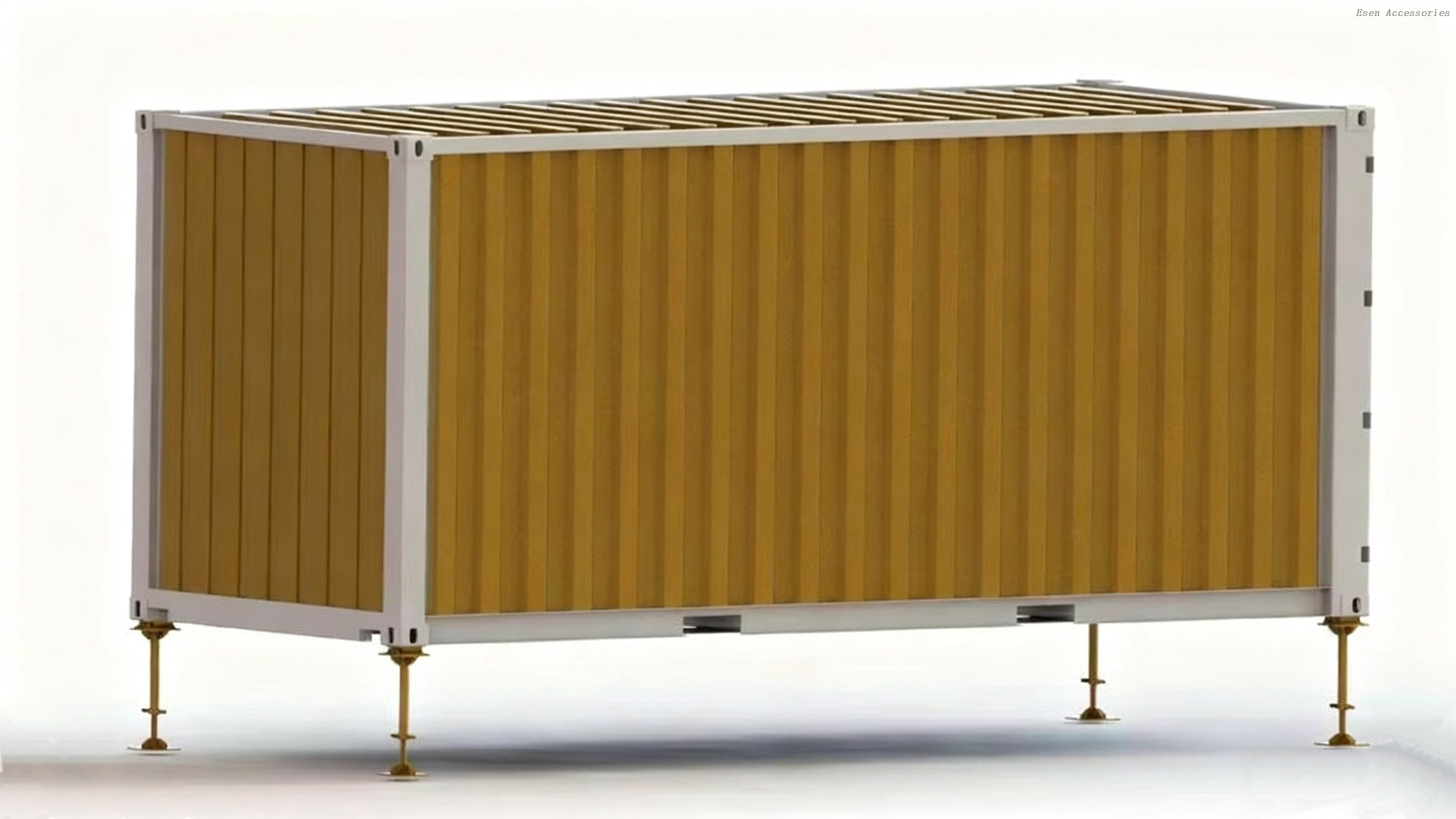

This adjustable leveling twistlock leg can adjust the height of the container, raising it by 580mm. It is highly suitable for uneven or sloping ground and can also be used to support the container.

Equipped with a locking mechanism, it can be securely locked onto the corner fittings of the container and is suitable for any standard ISO container.

应用

Packaging & Shipping

包装和运输_看图王

FAQ

FAQ
